Introduction

This article demonstrates how to use the proxy feature of DuplexSpy.

This feature allows you to use a compromised machine as a proxy, meaning that all network traffic from your machine can be forwarded through the compromised host.

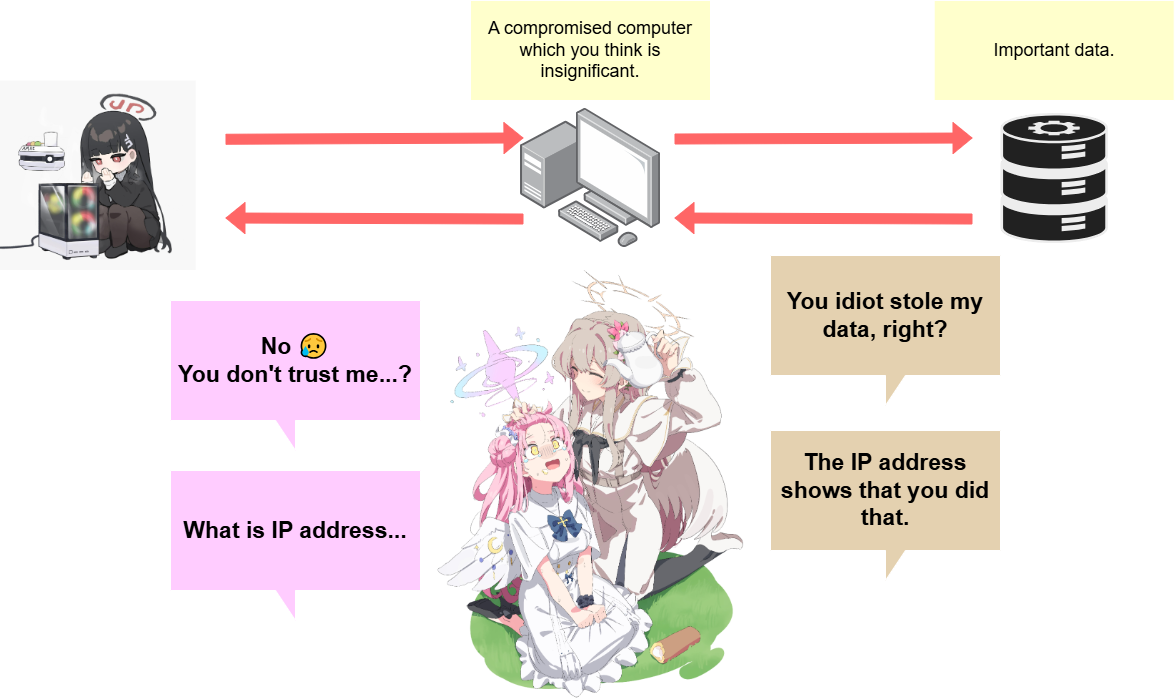

Even if a compromised machine does not store sensitive data, it can still be abused as a proxy or relay node for malicious activities, such as forwarding SSH sessions. This allows threat actors to hide their real origin and reduce the risk of attribution.

Principle

A C2 server starts listening on one or more ports and accepts SOCKS5 connections from proxy users. The C2 server redirects the user’s network stream to a compromised machine, which then forwards the traffic to the target host. All DNS resolution is performed on the compromised machine.

Usage

In this example, I demonstrates the proxy feature through SSH and proxychains. The following table describes the experimental environment:

Host	OS	Description
10.98.225.138	Ubuntu VM	Target host. It has enabled SSH service. An important file is stored at ~/Desktop/foo.txt.
10.98.222.136	Windows 10 x64	Compromised machine.
10.98.241.11	Debian Kali Linux	Attacker machine.
10.98.253.150	Windows 10	Attacker’s C2 server.

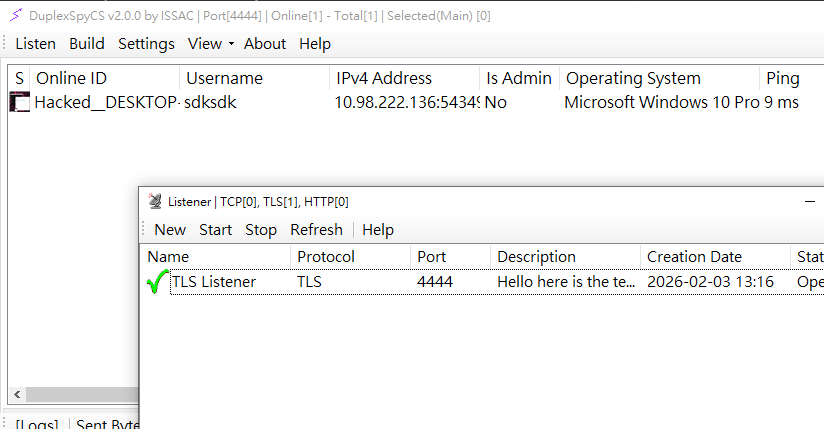

Start the DuplexSpy C2 server:

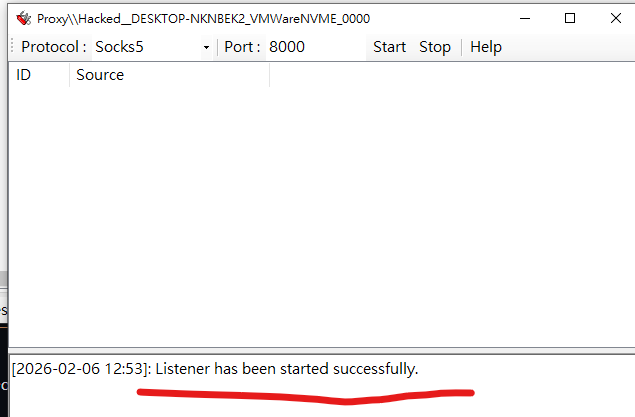

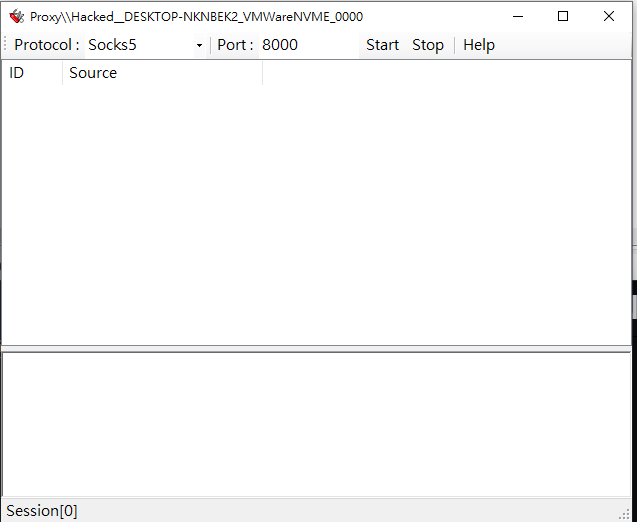

Right click the compromised host and select Proxy

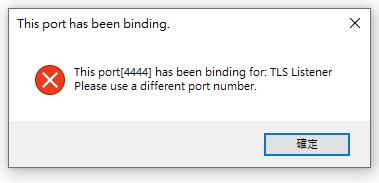

You should use an unused port.

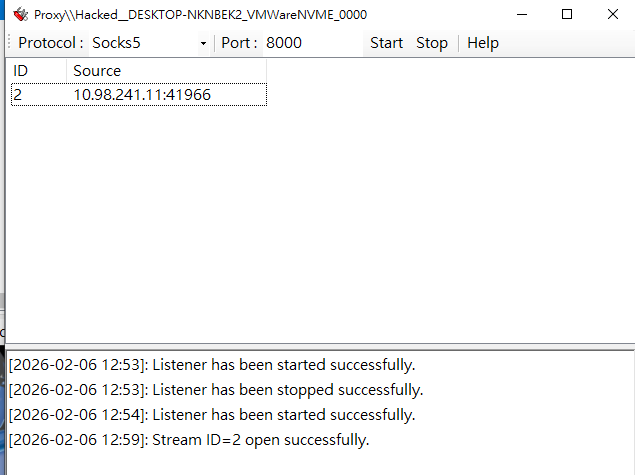

Next, establish an SSH connection from Kali Linux to the target host 10.98.225.138.

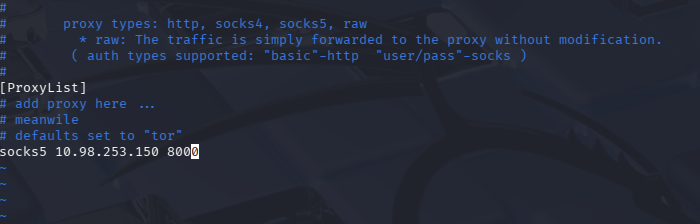

Configure the proxychains:

$ vim /etc/proxychains.conf

$ proxychains ssh sdksdk@10.98.225.138

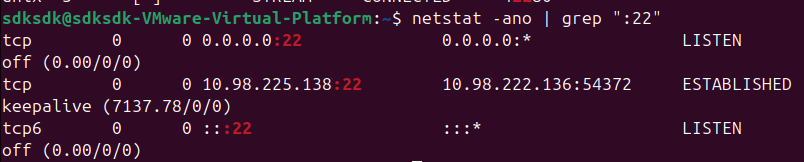

Now, check the source IP address on the target host:

netstat -ano | grep ":22"

The source address is 10.98.222.136:54372, which belongs to the compromised machine.

THANKS FOR READING!
